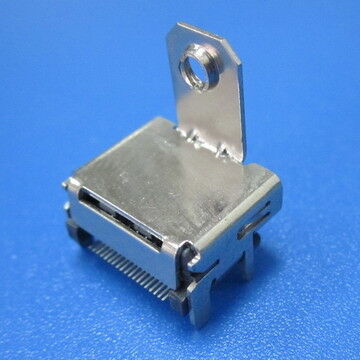

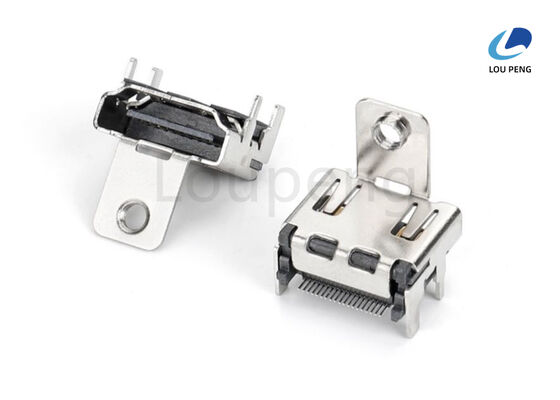

HDMI A/F A TYPE SMT female connector，Take the ear
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Black |
|---|
Product Description
ROHS&REACH compliance 19Pin HDMI A/F A type SMT female connector
Feature:
* Perfect for installation & space saving
* Supports Resolutions up to 1080P
* Perfect for connecting HDMI Monitors, A/V Receivers, and HDTV
* 100% digital for the deepest color, sharpest picture and smoothest video
* Makes installation in tight spaces much easier
* Standard size, Type A 19-pin port and plug
* Gold plated connectors for best signal quality
* Extend the reach of your HDMI device
* Preserve original video quality
Electrical:
Contact Current Rating: 0.5A AC(rms)/DC
Voltage Rating: 40V AC (RMS)/DC.
Withstanding Voltage: 500V AC r.m.s.
Insulation Resistance: 100 Mega ohms Min.
Contact Resistance: 30 Milliohms Max.
Operating Temperature: -30ºC ~ +80ºC
