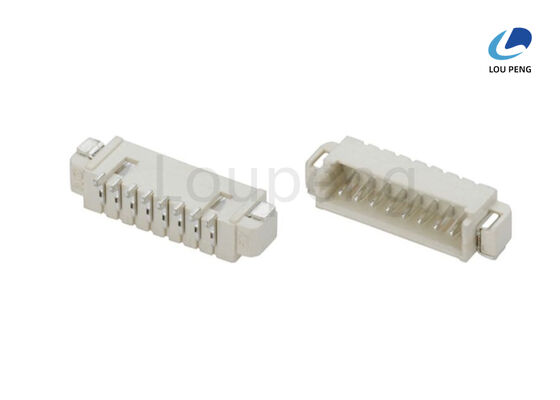

8 pin 1.25mm pitch wafer connector female male smd type Connector led connectors
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White |
|---|
Product Description
| Physical | |
| Product Name | wire to board connector |
| Color - Resin | Natural |
| Durability (mating cycles max) | 30 |
| Material - Metal | Brass |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Resin | Nylon 66 |
| Orientation | surface mount |
| Temperature Range - Operating | -25°C to +85°C |
| Termination Interface: Style | surface mount |
| Electrical | |
| Current - Maximum | 0.4 Amp |
| Voltage - Maximum | 50V AC/DC |
| Contact resistance: | 30m Ohm Max |
| Insulator resistance: | 1000M ohm min. |
| Withstanding Voltage: | 500V AC/Minute |
Packaging & Shipping
| Detail: | |
| Product name | wire to board connector |
| Certification | ISO9001,ROHS and the latest REACH |
| Handling Time(Lead time) | 7-15days |
| Sample: | Free |
| Minimum Order Quantity (MOQ) | 1000pcs |
| Terms of trade(Incoterm) | EXW,FOB Shenzhen or FOB Hong Kong |
| Payment Terms | Paypal,Western Union,T/T in advance.If the amount is more than 5000USD,we can do 30% deposit before production,70% before shipment. |
| Application: | Widely used in telecommunication equipment,computer,controllers,alarm security fields |
| Service: | ODM/OEM |
