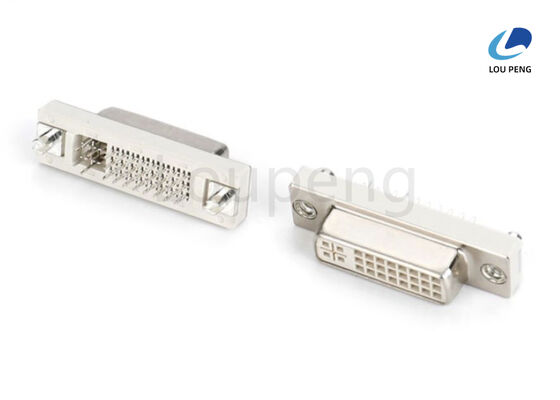

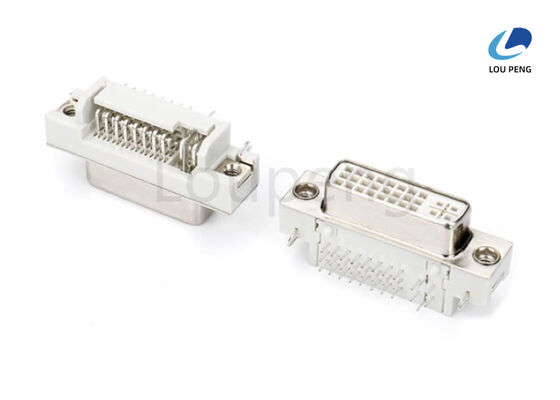

DVI 24+5pin 90 degree female connector, semi-gold white glue, riveted metal harpoon, 1.30mm positioning post, 2.30mm tail end, screw fastening.
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White |
|---|
一,MATERIAL:
1. Insulator: PBT+30%Glass Fiber (UL94V-0)
2.Contact: Brass
3.Contact Plated: Gold Flash over Tin Or Glod Plated Or Tin Plated
4. Shell: Steel, Nickel Plated
二,SPECIFICATION:
1.Current Rating: 5 AMPS
2. Insulation Resistance: 1000MSMIN. At 500vDC
3.Dielectric Strength: 500V for One minute
4.Operation Temperature: -55ºC ~ +105ºC
