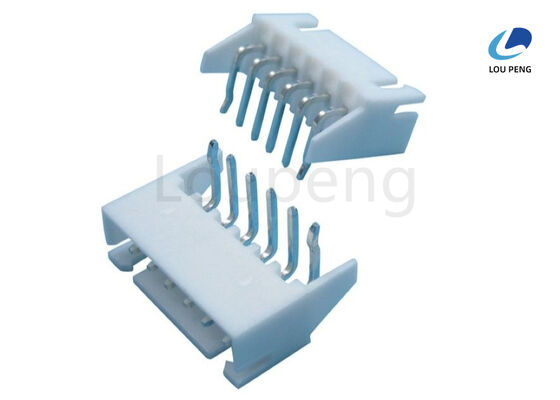

Electrical Housing For Wafer Terminals Withstanding Voltage 500V AC Minute Current Rating 1A AC DC Housing Wafer Terminal Solutions

Product Description:

The Electrical Housing Wafer Terminal is a high-quality component designed to meet the rigorous demands of modern electrical applications. This Wafer Terminal Housing Component is engineered using premium materials to ensure reliability, durability, and excellent performance in various environments. At the core of its design is the use of copper alloy as the contact material, which provides superior electrical conductivity and mechanical strength, ensuring efficient and stable electrical connections.

One of the standout features of this Electrical Housing Wafer Terminal is its exceptional insulation properties. The insulating material used is a high-temperature plastic rated UL94V-0, which guarantees excellent resistance to heat and flame. This makes the component highly suitable for use in environments where temperature fluctuations and safety are critical considerations. The use of this high-quality plastic ensures that the terminal housing maintains its structural integrity and insulation performance over extended periods of use.

In terms of electrical performance, the Wafer Terminal Housing Component boasts impressive specifications. It offers a minimum insulation resistance of 100 MΩ, which is critical for preventing leakage currents and ensuring the safe operation of electrical circuits. Additionally, after undergoing rigorous environmental testing, the component maintains an insulation resistance of 30 MΩ maximum, demonstrating its robustness and reliability under various stress conditions such as humidity, temperature changes, and mechanical vibrations.

The Electrical Housing Wafer Terminal is available in three distinct colors: white, black, and grey. This variety allows for easy identification and integration into different electrical systems, enhancing both functionality and aesthetics. The color options also provide flexibility for designers and engineers to match the terminal housing with other components or to adhere to specific coding standards within electrical assemblies.

This Wafer Terminal Housing Component is designed with precision to ensure seamless compatibility with a wide range of electrical connectors and devices. Its robust construction, combined with the superior electrical and insulating properties, makes it an ideal choice for applications in automotive, industrial, and consumer electronics sectors. Whether it is used in control panels, wiring harnesses, or other electrical assemblies, the Electrical Housing Wafer Terminal delivers reliable performance and ensures long-term operational stability.

Moreover, the high-quality copper alloy contact material ensures excellent corrosion resistance and durability, which significantly reduces maintenance needs and replacement frequency. This not only enhances the overall lifespan of the electrical system but also contributes to cost savings over time. The component’s ability to maintain high insulation resistance, even after environmental testing, underscores its suitability for use in challenging conditions where safety and performance cannot be compromised.

In summary, the Electrical Housing Wafer Terminal is a meticulously designed Wafer Terminal Housing Component that combines superior materials and advanced manufacturing techniques to deliver outstanding electrical and mechanical performance. With its copper alloy contacts, high-temperature UL94V-0 plastic insulation, excellent insulation resistance, and color versatility, this product stands out as a reliable and efficient solution for a broad spectrum of electrical applications. Choosing this Electrical Housing Wafer Terminal ensures enhanced safety, durability, and operational efficiency in any electrical system.

Features:

• Product Name: Housing Wafer Terminal
• Contact Material: Copper Alloy
• Color Options: White, Black, Grey
• Application: Electrical Housing for Wafer Terminals
• Insulating Material: High Temperature Plastic (UL94V-0)
• Insulator Material: PA46 (UL94V-0), RoHS Compliant
• Durable Housing Shell for Wafer Terminal ensuring reliable protection
• Connector Housing Wafer Terminal designed for efficient electrical connections
• Plastic Housing Wafer Terminal offering excellent insulation and heat resistance

Technical Parameters:

Applications:

The LP Housing Wafer Terminal Connector, model LP-WF020, is a highly reliable and versatile component designed and manufactured in China with ISO-9001:2000 certification. This product is ideal for various application occasions and scenarios where secure and efficient electrical connections are essential. With a current rating of 1A AC/DC and insulator resistance of 500 Megohms minimum, the LP Housing Wafer Terminal Connector ensures stable performance in both industrial and commercial environments.

One of the primary scenarios for using the Housing Shell for Wafer Terminal is in control panels and electronic equipment assemblies. The panel mount design allows easy installation and maintenance, making it perfect for devices requiring frequent connection and disconnection. Whether you need 2 to 64 pin contacts, the LP-WF020 model offers flexibility to meet different wiring configurations, supporting various electrical systems and signal transmissions.

In manufacturing and automation industries, the Housing for Wafer Terminal is widely applied to connect sensors, actuators, and control modules. Its robust construction and multiple packaging options—reel, tube, tray, or polybag—enable seamless integration into automated assembly lines, enhancing production efficiency. The white, black, or grey color variants provide additional customization to match different design requirements.

The LP Housing Wafer Terminal Connector is also suitable for use in telecommunications, automotive electronics, and household appliances. Its compact size and reliable contact points ensure safe and consistent connectivity under different environmental conditions. Furthermore, with a supply ability of 100,000 pieces and a minimum order quantity of 1000 pieces, LP can support large-scale projects with timely delivery within 7 to 10 days.

Payment terms such as T/T, Western Union, and L/C make transactions convenient and secure for both domestic and international customers. Priced competitively at 0.0001 per unit, this Housing Shell for Wafer Terminal offers excellent value without compromising quality. In summary, the LP-WF020 Housing for Wafer Terminal is an optimal choice for engineers and manufacturers seeking dependable connectors for various industrial and electronic applications.

Customization:

Introducing the LP Housing Wafer Terminal Connector, model number LP-WF020, proudly made in China and certified by ISO-9001:2000. This product features a screw terminal type constructed from high-quality phosphor bronze and brass materials, ensuring durability and reliable performance. With an insulation resistance of 100 MΩ minimum and a contact resistance of 20 MΩ max, it operates efficiently within a temperature range of -40°C to 85°C.

Our Wafer Terminal Housing Assembly is designed to meet diverse application needs, available in packaging options including reel, tube, tray, and polybag. We maintain a strong supply ability of 100,000PCS with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per unit. Delivery time is prompt, typically within 7 to 10 days, supporting payment terms such as T/T, Western Union, and L/C.

The LP Wafer Terminal Housing Assembly is ideal for projects requiring reliable and efficient terminal connections. Trust LP’s expertise and quality assurance to provide superior Housing Wafer Terminal Connectors tailored to your specific requirements.

Support and Services:

Our Housing Wafer Terminal product is designed to provide reliable and efficient connectivity solutions for a variety of electronic applications. For technical support, please refer to the detailed user manual included with the product, which covers installation, configuration, and troubleshooting procedures.

We offer comprehensive services including product customization, firmware updates, and performance optimization to ensure the Housing Wafer Terminal meets your specific requirements. Our technical support team is equipped to assist with diagnosing issues and providing timely solutions to minimize downtime.

For best results, always use the Housing Wafer Terminal within the specified operating conditions and follow the recommended handling and installation guidelines. Regular maintenance and inspection can help prolong the product’s lifespan and maintain optimal performance.

Additional resources such as FAQs, application notes, and software tools are available on our website to support your use of the Housing Wafer Terminal. We are committed to providing ongoing support to help you achieve successful integration and operation of our products.

Packing and Shipping:

Each Housing Wafer Terminal is carefully packaged to ensure maximum protection during transit. The terminals are placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then securely packed in sturdy cardboard boxes with cushioning materials to avoid any physical impact or vibration.

For shipping, we use reliable carriers that provide tracking services to ensure timely and safe delivery. The packaging is clearly labeled with product information, handling instructions, and barcode for easy identification. Depending on the order size, multiple boxes may be consolidated on pallets to optimize shipping efficiency and reduce the risk of damage.

We recommend inspecting the package upon arrival and reporting any damage immediately to facilitate prompt resolution. Our packaging and shipping process is designed to maintain the integrity and functionality of the Housing Wafer Terminal from our facility to your doorstep.
