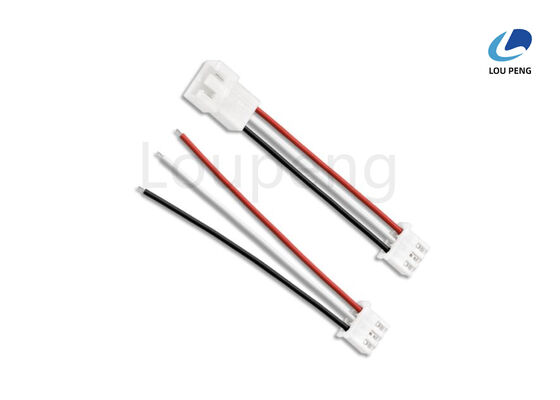

Voltage Rating 300V To 600V Terminal Wire Wire Harness Solder Connector Type Current Rating Up To 30A Electrical Wiring Solutions

Product Description:

The Terminal Wire, Wire Harness is a versatile and reliable solution designed to meet the demanding requirements of modern electrical and electronic applications. Engineered to provide consistent performance under various environmental conditions, this wire harness is an essential component for industries ranging from automotive to telecommunications, industrial machinery, and consumer electronics. With a current rating of up to 30A, it ensures efficient power transmission and signal integrity, making it suitable for high-demand scenarios where reliability and safety are paramount.

One of the standout features of this wire harness is its flexible shielding options. Customers can choose to have the wire harness with or without shielding, depending on their specific application needs. Shielding plays a critical role in reducing electromagnetic interference (EMI) and radio-frequency interference (RFI), which can otherwise disrupt sensitive electronic components. This adaptability allows the Terminal Wire, Wire Harness to be used in environments where signal clarity and protection against external noise are crucial.

The voltage rating of this wire harness ranges from 300V to 600V, providing a broad spectrum of applications. Whether it’s powering low-voltage devices or handling higher-voltage equipment, this wire harness offers a robust solution. The wide voltage range ensures compatibility with various electrical systems and contributes to the overall safety and operational stability of the connected devices.

Temperature resilience is another significant attribute of this product, as it can operate efficiently within a temperature range of -40°C to 105°C. This wide temperature tolerance makes the Terminal Wire, Wire Harness ideal for use in harsh environments, including outdoor installations and industrial settings where temperature fluctuations are common. Its ability to maintain performance in extreme cold or heat enhances the durability and longevity of the electrical connections it supports.

Material quality is a cornerstone of this wire harness’s performance. Manufactured using high-quality copper, aluminum, or alloy conductors, the product ensures excellent electrical conductivity and mechanical strength. Copper is renowned for its superior conductivity and flexibility, making it ideal for applications requiring high efficiency and minimal signal loss. Aluminum and alloy options provide cost-effective alternatives with good conductivity and lighter weight, catering to different budget and design requirements.

The Terminal Wire, Wire Harness is not just a simple wiring solution but a comprehensive Wire Harness Connector Assembly. This assembly includes prewired connectors that simplify installation and reduce assembly time, enhancing overall system efficiency. The prewired electrical cable harness design ensures that all connections are secure, organized, and tested for optimal performance before deployment. This feature is particularly valuable in complex systems where reliability and ease of maintenance are critical.

In addition to its functional attributes, the wire harness’s design emphasizes safety and compliance with industry standards. It is crafted to meet stringent quality controls, ensuring that each harness delivers consistent performance and reliability. This makes it an ideal choice for manufacturers and engineers seeking dependable wiring solutions that can withstand rigorous operational demands.

Overall, the Terminal Wire, Wire Harness stands out as a high-quality, adaptable, and efficient wiring solution. Its high current rating, flexible shielding options, broad voltage and temperature ratings, and premium material choices make it suitable for a wide range of applications. Whether you are looking for a High Voltage Wire Harness for industrial equipment, a Wire Harness Connector Assembly for automotive systems, or a Prewired Electrical Cable Harness for consumer electronics, this product offers the quality and reliability needed to ensure seamless electrical connectivity.

Features:

• Product Name: Terminal Wire, Wire Harness
• Connector Type: Crimp, Solder, or Plug-in
• Application: Automotive, Electronics, Appliances, Industrial Equipment
• Flexibility: Flexible or Semi-Rigid
• Current Rating: Up to 30A
• Voltage Rating: 300V to 600V
• Suitable for Wire Harness Connector Assembly
• Compatible with High Voltage Wire Harness applications
• Ideal for Automotive Wiring Harness systems

Technical Parameters:

Our Custom Wire Harness Solution offers a Multi Terminal Wire Harness designed for various applications, providing a reliable Electrical Wire Harness Assembly tailored to your needs.

Applications:

The LP Terminal Wire, model number LP-TW029, is a versatile and reliable product originating from China and certified under ISO-9001:2000 standards. This wire harness system is designed to meet the demanding needs of various industrial and commercial applications. With a minimum order quantity of 1000PCS and a competitive price of 0.0002 per unit, it offers excellent value for bulk procurement. The supply ability of 100000PCS ensures that large-scale projects can be easily supported with timely deliveries within 7 to 10 days.

This product is ideal for use in an Industrial Wire Harness System where durability and performance are critical. The LP Terminal Wire supports wire gauges ranging from 10 AWG to 26 AWG, accommodating a wide range of current ratings up to 30A. Its insulation materials include PVC, PE, Teflon, or rubber, providing flexibility and protection against environmental factors such as heat, moisture, and mechanical wear. The product’s length is customizable, typically ranging from 10cm to 5m, making it adaptable to various wiring layouts and installation requirements.

In addition to industrial applications, the LP-TW029 is well-suited for automotive purposes, particularly in Automotive Wiring Harness assemblies. It ensures secure and efficient electrical connections in vehicles, supporting critical functions and enhancing overall system reliability. The availability of multiple colors—including red, black, blue, yellow, green, and others—facilitates easy identification and organization within complex wiring setups.

The LP Terminal Wire also excels in Wire Harness Connector Assembly scenarios, where precision and quality are paramount. Its packaging options are diverse, ranging from polybag and opp bag to retail and customized packaging, catering to different market needs and distribution channels. Payment terms such as T/T, Western Union, and L/C provide flexible financial arrangements to accommodate various customer preferences.

Overall, the LP-TW029 Terminal Wire is an excellent choice for engineers and manufacturers seeking a dependable, customizable, and cost-effective wiring solution. Whether in industrial machinery, automotive systems, or connector assemblies, this product offers the performance and quality necessary to ensure long-lasting and efficient electrical connections.

Customization:

Introducing the LP Terminal Wire, Wire Harness (Model Number: LP-TW029), proudly made in China and certified with ISO-9001:2000 standards. Our product offers exceptional quality and reliability, tailored to meet your specific needs.

We specialize in Automotive Wiring Harness and High Voltage Wire Harness solutions, providing Custom Terminal Wire Assembly services with flexible or semi-rigid configurations. The wire length is fully customizable, typically ranging from 10cm to 5m, made from premium materials such as copper, aluminum, or alloy to ensure optimal performance with a current rating of up to 30A.

With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, we guarantee timely delivery within 7 to 10 days. Our packaging options include polybag, opp bag, retail packaging, or customized packaging to suit your branding requirements.

Payment terms are flexible, accepting T/T, Western Union, and L/C, making transactions smooth and convenient. Ideal for applications in automotive, electronics, appliances, and industrial equipment, the LP Terminal Wire, Wire Harness is your trusted partner for high-quality, customizable wiring solutions.

Support and Services:

Our Terminal Wire and Wire Harness products are designed to meet the highest standards of quality and reliability. For technical support, please ensure that you have the product model number and specifications ready to facilitate a quick and accurate response.

Installation guidance is available to help you correctly connect and secure the wires, ensuring optimal performance and safety. We recommend following the provided wiring diagrams and adhering to industry best practices during installation.

If you encounter any issues with the Terminal Wire or Wire Harness, such as connectivity problems or physical damage, please refer to the troubleshooting section of the product manual. Common solutions include checking for proper crimping, verifying wire continuity, and inspecting connectors for corrosion or wear.

For custom wire harness design and assembly services, our technical team can assist in creating solutions tailored to your specific application requirements. Please provide detailed information about your project to receive expert recommendations.

Regular maintenance is advised to prolong the lifespan of your wire harnesses. This includes periodic inspections for wear and tear, ensuring connections remain secure, and replacing any damaged components promptly.

We are committed to supporting you throughout the lifecycle of your Terminal Wire and Wire Harness products to ensure optimal functionality and customer satisfaction.

Packing and Shipping:

Our Terminal Wire and Wire Harness products are carefully packaged to ensure maximum protection during transit. Each wire harness is securely bundled and placed in anti-static bags or protective sleeves to prevent damage and contamination. The packaged products are then boxed in sturdy, high-quality cartons with cushioning materials to absorb shocks and vibrations.

For shipping, we use reliable carriers and provide tracking information to ensure timely and safe delivery. All shipments are handled with care, and we offer various shipping options to meet your specific needs, including express and standard delivery services. Our packaging and shipping processes are designed to maintain product integrity and guarantee customer satisfaction.
