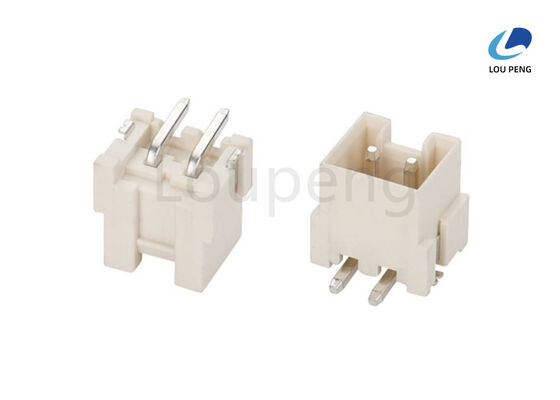

250V Electrical Housing for Wafer Terminals Wafer Terminal Housing Assembly Connector Housing for Industrial Electronics

Product Description:

The Housing Wafer Terminal Connector is an essential component designed to provide reliable and secure connections in various electronic and electrical applications. Crafted with precision, this product features a polished finish that not only enhances its aesthetic appeal but also contributes to its durability and resistance to wear and corrosion. The polished surface ensures smooth insertion and removal of terminals, reducing the risk of damage during assembly and maintenance processes.

Constructed from high-quality materials, the Housing Wafer Terminal Connector utilizes phosphor bronze and brass for its conductive elements. These materials are well-known for their excellent electrical conductivity, mechanical strength, and resistance to tarnishing, ensuring consistent performance over extended periods. The choice of phosphor bronze and brass guarantees that the connector can withstand the demands of rigorous usage in various industrial environments.

The insulator material used in this product is PA46, which complies with UL94V-0 standards, indicating its superior flame-retardant properties. This ensures that the Housing Wafer Terminal Connector maintains safety and reliability even under challenging operating conditions. The use of PA46 also aligns with RoHS compliance, reflecting the product’s environmentally responsible design by restricting the use of hazardous substances.

One of the standout features of the Housing Wafer Terminal Connector is its impressive withstanding voltage rating of 500V AC per minute. This high voltage tolerance makes it suitable for a wide range of applications, from consumer electronics to industrial machinery, where electrical safety and performance are paramount. The connector’s robust construction helps prevent electrical breakdowns and enhances the overall safety of the systems in which it is integrated.

Certified under RoHS and UL standards, the Housing Wafer Terminal Connector meets stringent quality and safety requirements. RoHS certification ensures that the product is free from harmful substances like lead, mercury, and cadmium, making it an eco-friendly choice for manufacturers and end-users. UL certification further guarantees that the connector has undergone rigorous testing for safety, performance, and reliability, providing peace of mind for both designers and consumers.

Designed as a Wafer Terminal Housing Module, this product serves as a protective enclosure for wafer terminals, facilitating organized and efficient connections within electrical assemblies. The housing shell for wafer terminals is engineered to securely hold the terminals in place, preventing accidental disconnections and ensuring stable electrical contacts. Its modular design allows for easy integration into various systems, supporting flexibility and scalability in electrical design.

The Housing Wafer Terminal Connector offers an optimal combination of mechanical strength, electrical performance, and safety compliance. Its polished finish, high-quality phosphor bronze and brass materials, and flame-retardant PA46 insulator make it a reliable choice for use in demanding environments. Whether used in automotive, telecommunications, or industrial control systems, this connector supports efficient and secure electrical connections.

In summary, the Housing Wafer Terminal Connector is a high-performance, compliant, and durable solution for housing wafer terminals. Its polished finish, robust materials, and adherence to RoHS and UL standards ensure it meets the needs of modern electronic assemblies. As a Wafer Terminal Housing Module and Housing Shell for Wafer Terminals, it provides essential protection and stability, making it an indispensable component for engineers and manufacturers seeking quality and reliability in their electrical connectors.

Features:

• Product Name: Housing Wafer Terminal
• Insulator Material: PA46 (UL94V-0) RoHS compliant
• Finish: Polished surface for enhanced durability
• Voltage Rating: 250V
• Available Types: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Contact Resistance: Maximum 20MΩ
• Durable Wafer Terminal Housing Component designed for reliable electrical connections
• High-quality Plastic Housing Wafer Terminal ensuring excellent insulation and safety
• Versatile Wafer Terminal Housing Unit suitable for various mounting configurations

Technical Parameters:

Applications:

The LP brand's Housing Wafer Terminal Unit, model number LP-WF029, is a versatile and reliable component designed for various electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this product ensures consistent quality and performance. With a supply ability of 1,000,000 PCS and a minimum order quantity of 1000 PCS, it caters efficiently to both small and large-scale production needs. The wafer terminal housing unit is available in multiple configurations including vertical, right angle, SMT, single row, double row, and three rows, making it adaptable to diverse circuit designs.

Ideal for use in electronic devices requiring secure and stable electrical connections, the wafer terminal housing unit operates at a voltage rating of 250V. Its compliance with RoHS and UL certifications guarantees environmental friendliness and safety standards, essential for modern electronic manufacturing. The contact resistance of this unit is maintained at a maximum of 20MΩ, with environmental testing ensuring a maximum of 30MΩ, highlighting its reliability under different conditions.

The wafer terminal housing unit finds its application across multiple occasions and scenarios. In consumer electronics, it is used in assembling circuit boards requiring compact and efficient connectors. Industrial automation systems benefit from its robust design and high supply capability, making it suitable for mass production lines. Additionally, it is widely used in telecommunications equipment where reliable signal transmission is critical. The product is also ideal for automotive electronics, where high durability and safety compliance are mandatory.

Packaging options such as reel, tube, tray, and polybag provide flexibility in handling and installation, catering to various manufacturing processes. The delivery time of 7 to 10 days ensures timely supply to meet production schedules. Payment terms including T/T, Western Union, and L/C offer convenience and security to buyers worldwide. With a competitive price of 0.0001 per piece, the LP-WF029 wafer terminal housing unit offers an excellent balance between cost and quality for electronics manufacturers looking to optimize their production and performance.

Overall, the LP-WF029 wafer terminal housing unit is a dependable solution for a wide range of electronic assembly applications, delivering quality, flexibility, and compliance with international standards. Whether used in consumer electronics, industrial equipment, telecommunications, or automotive sectors, this product ensures secure connections and long-lasting performance.

Customization:

LP proudly presents the Plastic Housing Wafer Terminal, model number LP-WF029, manufactured in China with ISO-9001:2000 certification ensuring top quality standards.

Our Wafer Terminal Housing Assembly features a Screw Terminal type with a versatile pitch range including 0.80mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm, 2.50mm, 2.54mm, 3.00mm, 3.96mm, 4.20mm, and 5.08mm, accommodating diverse application needs.

The Wafer Terminal Housing Module is available in multiple colors such as White, Black, and Grey, and supports a voltage rating of 50V AC/DC with an insulator resistance of 500 Megohms minimum, guaranteeing reliable performance.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag to meet your logistical preferences.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, LP ensures a supply ability of up to 1,000,000PCS to support your large-scale projects.

Delivery time is prompt, ranging from 7 to 10 days, and payment terms include T/T, Western Union, and L/C for your convenience.

Customize your orders with LP's Plastic Housing Wafer Terminal solutions tailored to your specifications, combining quality, efficiency, and reliability in every Wafer Terminal Housing Assembly and Wafer Terminal Housing Module we provide.

Support and Services:

Our Housing Wafer Terminal product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, user manuals, and datasheets to assist with proper usage and integration.

Technical support is available to address any inquiries regarding product specifications, compatibility, and troubleshooting. Our team of experts is dedicated to providing timely and effective solutions to minimize downtime and enhance your experience with our Housing Wafer Terminal.

Additionally, we offer customization services to tailor the Housing Wafer Terminal to meet specific application requirements. Quality assurance and rigorous testing are integral parts of our service to guarantee reliability and durability in various operating environments.

For ongoing maintenance, we provide recommendations and support for regular inspections and part replacements to extend the lifespan of the product. Our commitment is to deliver not only a high-quality product but also exceptional service throughout the product lifecycle.

Packing and Shipping:

Product Packaging and Shipping for Housing Wafer Terminal

The Housing Wafer Terminal is carefully packaged to ensure its protection during transportation and handling. Each unit is securely placed in anti-static bags to prevent any electrostatic discharge damage. These are then cushioned with foam inserts and packed into sturdy cardboard boxes designed to absorb shocks and vibrations.

For bulk orders, multiple units are organized in custom trays to maintain separation and minimize movement inside the box. The boxes are clearly labeled with product information, handling instructions, and barcodes for easy identification and inventory management.

Shipping is carried out using reliable carriers with options for express or standard delivery. All packages are tracked and insured to guarantee safe and timely arrival at the destination. Upon receipt, customers are advised to inspect the packaging for any signs of damage before signing for delivery.
