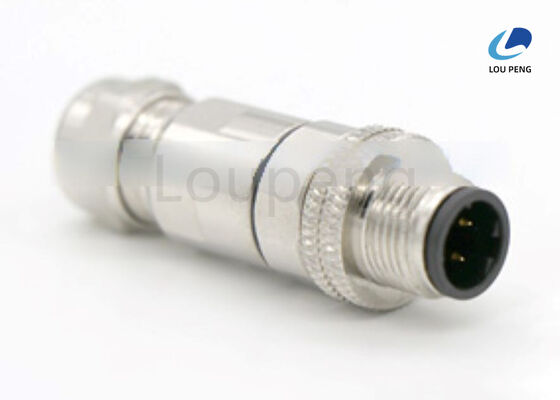

Gold Plated Circular Connector 8 Pin Male Solder Cup Featuring Copper Alloy Contact Material for Industrial Applications

Product Description:

The Circular Connector is a highly reliable and versatile component designed to meet the demanding requirements of modern electrical and electronic applications. Known for its robust construction and excellent performance characteristics, this Circular Electrical Connector is an ideal choice for industries requiring secure and efficient connections under various environmental conditions. With an 8-pin male solder cup configuration, this connector offers a practical and user-friendly solution for complex wiring needs, ensuring optimal signal transmission and power delivery.

One of the standout features of this Circular Connector is its low contact resistance, rated at a maximum of 5 ohms. This low resistance ensures minimal power loss and efficient electrical conductivity, which is critical for maintaining signal integrity and reducing energy consumption. Whether used in industrial machinery, communication systems, or control panels, the connector's consistent performance contributes to the overall reliability of the system.

Designed to operate within a wide temperature range from -25℃ to +85℃, this Circular Electrical Connector is well-suited for environments that experience significant temperature fluctuations. This operating temperature range ensures that the connector maintains its mechanical and electrical properties without degradation, making it suitable for outdoor applications as well as harsh industrial settings. The ability to perform reliably in extreme temperatures enhances the versatility and longevity of the product.

The mechanical resilience of this Circular Connector is further demonstrated by its impressive shock resistance capability. It can withstand shocks of up to 980 meters per second squared (m/s²) for 6 milliseconds with a half sine wave profile, tested six times. This level of shock resistance makes it an excellent choice for use in transportation, military, and aerospace applications where equipment is subject to vibration, impact, and sudden forces. The durability of the connector ensures continuous operation even in the most demanding conditions.

Operating at a voltage rating of 250V, this 8-pin male solder cup Circular Connector supports a wide range of electrical applications. The voltage rating is sufficient for many industrial and commercial devices, providing safe and stable electrical connections. The solder cup terminations allow for secure and flexible wiring, enabling technicians to establish reliable connections with ease and confidence. This feature also facilitates maintenance and troubleshooting by allowing straightforward soldering and replacement of wires.

In addition to its technical specifications, the Circular Connector is designed with user convenience in mind. The 8-pin male configuration is compatible with a variety of mating connectors and accessories, simplifying the integration process. Furthermore, its circular design not only provides a compact footprint but also aids in quick and secure mating, reducing installation time and effort. The connector’s robust shell offers protection against dust, moisture, and mechanical stress, ensuring long-term performance and safety.

A noteworthy aspect of this product is its relation to the Centronics connector family, widely recognized for their reliability in data communication and power connections. While the Centronics connector is typically associated with parallel interface connections, this Circular Electrical Connector shares the principle of providing secure, high-quality connections in a compact form factor. This connection style facilitates effective electrical interfacing in applications ranging from computer peripherals to industrial automation systems.

Overall, the Circular Connector with its 8-pin male solder cup design, low contact resistance, broad operating temperature range, high shock tolerance, and 250V operating voltage represents a comprehensive solution for demanding electrical connection needs. Its robust construction, ease of use, and compatibility with Centronics connector principles make it an essential component in numerous fields including industrial machinery, telecommunications, automotive systems, and more. Choosing this Circular Electrical Connector ensures reliable performance, durability, and safety, contributing to the success and efficiency of your electrical systems.

Features:

• Product Name: Circular Connector
• Contact Material: Copper Alloy
• Mounting Type: Panel Mount
• Insulation Material: Thermoplastic
• Connector Types: Whip, Puck, Panel
• Contact Plating: Gold Plated
• High-quality Circular Power Connector for reliable performance
• Designed as an Integrated Connector for seamless connectivity
• Suitable for various applications with Circular Cable Connectors

Technical Parameters:

Applications:

The Loupeng LP-M12022 Circular Connector is an exceptional Industrial Electrical Connector designed to meet the rigorous demands of various application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, this connector ensures high quality and reliability for industrial use. Its panel mount design makes it an essential component in environments that require secure and stable connections, such as manufacturing plants, automation systems, and heavy machinery.

One of the primary application occasions for the LP-M12022 Circular Cable Connectors is in industrial automation and control systems. These connectors provide a dependable solution for connecting sensors, actuators, and control units where stable electrical performance is critical. With an operating voltage of 250V and a maximum contact resistance of 5 ohms, these connectors guarantee efficient power transmission and signal integrity, which are crucial for precise industrial operations.

Due to its robust construction, including the ability to withstand shocks up to 980m/s² (6ms, half sine wave, 6 times), the LP-M12022 is ideal for use in harsh environments such as automotive assembly lines, robotics, and heavy equipment. The circular cable connectors accommodate cable outer diameters ranging from 2.6mm to 7.5mm, making them versatile for various cable configurations. This adaptability allows for seamless integration into different industrial electrical setups.

In addition to industrial automation, these connectors are widely used in telecommunications, transportation systems, and power distribution networks. The LP-M12022's packaging options, including tube and tray, ensure safe handling and efficient storage during transportation. With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, Loupeng can meet the demands of large-scale projects with a competitive price of just 0.03 per unit.

The quick delivery time of 7 to 10 days and flexible payment terms such as T/T and L/C further enhance the convenience for businesses requiring timely procurement of connectors. Whether it's for setting up new industrial electrical connections or replacing existing ones, the Loupeng LP-M12022 Circular Connector stands out as a reliable and cost-effective choice in the realm of connectors.

Customization:

Introducing the Loupeng Circular Connector, model number LP-M12022, a high-quality Cable Connector Fitting designed and manufactured in China. Certified with ISO-9001:2000, this Circular Metal Connector offers reliable performance with a mounting type of Panel Mount and contact material made of durable Copper Alloy.

Our Circular Connector Cable Assembly is available with Connector A as JAE M120-55780, ensuring compatibility and ease of integration into your systems. The product withstands shock conditions up to 980m/s² for 6ms with a half sine wave, repeated 6 times, guaranteeing robustness in demanding environments.

We offer flexible packaging options including Tube or Tray, with a minimum order quantity of 1000PCS. Priced competitively at 0.03 per unit, the supply ability reaches up to 100,000PCS, and delivery time is estimated between 7 to 10 days. Payment terms include T/T and L/C to accommodate your purchasing preferences.

The Loupeng LP-M12022 Circular Connector is available in various types including Whip, Puck, and Panel, making it a versatile choice for your cable connector fitting needs. Trust in Loupeng for durable, efficient, and customizable circular connector cable assemblies.

Support and Services:

Our Circular Connector products are backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including datasheets, installation guides, and application notes to assist with proper usage and integration.

Our experienced technical support team is available to help troubleshoot any issues, answer product-related questions, and provide guidance on customization options. We also offer training sessions and webinars to help customers better understand the features and benefits of our Circular Connectors.

In addition, we provide repair and maintenance services to extend the life of your connectors and minimize downtime. Our quality assurance processes ensure that all products meet stringent industry standards for reliability and durability.

For custom solutions, our engineering team collaborates closely with customers to design connectors tailored to specific requirements, ensuring seamless compatibility and performance in various applications.

We are committed to delivering exceptional after-sales support to help you maximize the value of your Circular Connector investments.

Packing and Shipping:

Our Circular Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any damage from electrostatic discharge. The connectors are then securely placed in custom-fitted foam compartments within sturdy cardboard boxes to avoid movement and impact.

For shipping, we use durable outer cartons designed to withstand rough handling and environmental conditions. All packages are clearly labeled with handling instructions and product details. We offer multiple shipping options to meet your delivery time requirements, including standard, expedited, and express services.

Each shipment includes a detailed packing list and certificate of conformity to guarantee the quality and authenticity of the Circular Connectors. Our logistics team monitors all shipments to ensure timely and safe delivery to your specified location.
