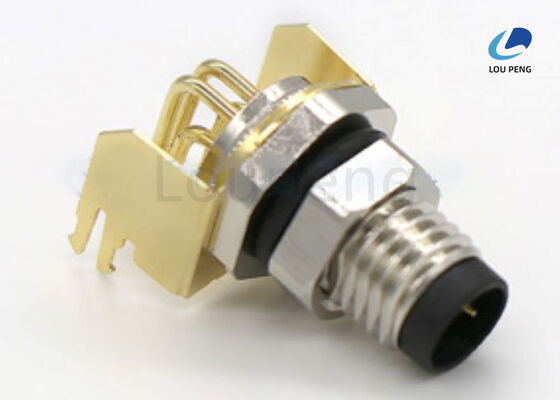

25C to 85C Circular MIL Spec Connectors Featuring Copper Alloy Contact Material Optimized for Military Grade Performance

Product Description:

The Circular Connector is a high-quality, versatile connector designed to meet the demanding needs of various electronic and industrial applications. Featuring a robust design and premium materials, this connector ensures reliable performance and long-lasting durability. At the heart of its construction lies the contact material, which is crafted from a superior copper alloy. This choice of material provides excellent electrical conductivity and mechanical strength, making it ideal for both signal and power transmission.

This particular Circular Connector is available in multiple types, including whip, puck, and panel configurations, allowing for flexible integration into different system designs. Whether you need a connector that can be easily incorporated into a cable assembly (whip), mounted on a circular puck for compact and secure connections, or affixed to a panel for fixed installations, this product offers all these options to suit your specific requirements.

The connector type is an 8-pin male solder cup, which is widely recognized for its ease of use and reliable connection. The solder cup design enables straightforward wire attachment, ensuring a strong and stable electrical connection. This makes it an excellent choice for applications where secure, high-quality connections are necessary. The 8-pin configuration supports multiple signals or power lines, making it highly adaptable to complex wiring schemes.

One of the standout features of this Circular Connector is its contact plating. Each contact is gold plated, which significantly enhances corrosion resistance and reduces the risk of oxidation. Gold plating also improves the electrical contact by providing a low-resistance interface, which is essential for maintaining signal integrity and power efficiency over time. This feature is especially beneficial in environments where connectors may be exposed to moisture or other corrosive elements.

Customization is another key aspect of this product. The length of the connector can be tailored to meet the unique needs of your application, ensuring an optimal fit and seamless integration into your system. Whether you require a short connector for compact spaces or a longer version for extended reach, this product can be adapted accordingly to deliver the best performance.

This Circular Connector is an excellent alternative or complement to other well-known connector types such as the Centronics Connector and Hirose Circular Connectors. Like these connectors, it offers reliable performance and robust construction but stands out with its customizable length and gold-plated copper alloy contacts. It is also considered a reliable Circular Power Connector solution, capable of handling power transmission alongside signal connections in a single compact unit.

In summary, this Circular Connector combines the best features of durable copper alloy contacts, gold plating for superior conductivity and corrosion resistance, and versatile type options including whip, puck, and panel configurations. The 8-pin male solder cup design facilitates easy wiring and dependable connectivity, while the customizable length ensures it can be adapted to a wide range of applications. Whether you are working on industrial equipment, communication devices, or power systems, this connector provides a robust, high-performance solution that rivals popular connectors like Centronics and Hirose Circular Connectors. Its ability to function effectively as a Circular Power Connector further enhances its appeal, making it a valuable component in any electronic or electrical assembly.

Features:

• Product Name: Circular Connector
• Contact Resistance: 5 OHMS MAX
• Operating Voltage: 250V
• Cable Outer Diameter (OD): 2.6mm - 7.5mm
• Length: Customizable to meet specific requirements
• Shock Resistance: 980m/s², 6ms, Half Sine Wave, 6 times
• Ideal for use as Connector Accessories in various applications
• Suitable Electric Bike Connector ensuring reliable performance
• Durable and efficient Circular Connectors for multiple industries

Technical Parameters:

Applications:

The LP Circular Connector, model number LP-M8001, is a highly reliable and versatile connector designed to meet the demanding requirements of various industrial and commercial applications. Manufactured in China and certified with ISO-9001:2000, this connector guarantees superior quality and performance. Its robust construction, combined with an IP67 waterproof rating, ensures excellent resistance to dust and water, making it ideal for use in harsh environments.

This 8-pin male solder cup connector features a break-away locking type and is designed for panel mounting, providing a secure and stable connection in various setups. The operating temperature range of -25℃ to +85℃ allows it to function efficiently in extreme temperature conditions, suitable for both indoor and outdoor applications. The LP-M8001 is part of the Hirose Circular Connectors family, known for their durability and precision, and it meets the stringent standards of Circular MIL Spec Connectors, ensuring military-grade performance.

The Circular Connector LP-M8001 is widely used in aerospace, military, telecommunications, and industrial automation. Its compact design and reliable locking mechanism make it perfect for equipment that requires frequent connection and disconnection without compromising signal integrity. Additionally, its panel mount feature allows for easy installation in control panels, instrumentation, and rugged machinery.

With a minimum order quantity of 1000PCS and a competitive price of 0.03 USD per piece, this connector is an economical choice for large-scale manufacturing and production needs. The product is packaged in tubes or trays to ensure safe delivery, with a supply ability of up to 100,000PCS and a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C, offering flexibility to buyers globally.

In summary, the LP-M8001 Circular Connector is an excellent solution for applications requiring reliable, waterproof, and high-performance connectors. Whether you are integrating Hirose Circular Connectors or seeking robust Circular MIL Spec Connectors, the LP brand offers a dependable product that meets international standards and is suitable for a wide range of industrial and military applications.
