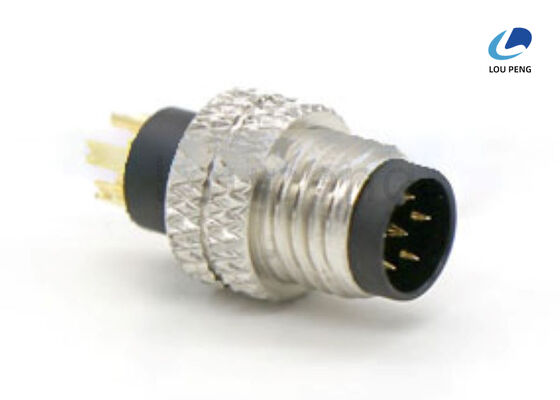

Panel Mount Circular MIL Spec Connectors Cable Od 2.6mm 7.5mm Electrical Connectors for Aerospace Defense and Industrial

Product Description:

The 8-pin Male Solder Cup Circular Connector is a highly reliable and versatile electrical connector designed for a wide range of applications. As part of the Circular Plastic Connectors family, this product combines durability, ease of use, and excellent electrical performance, making it an ideal choice for industries requiring robust and secure connections. Featuring a break-away locking type, this connector ensures quick and secure mating and unmating, providing both convenience and safety during installation and maintenance.

One of the standout features of this circular connector is its 8-pin configuration, which allows for multiple signal or power connections within a compact and organized design. The use of a solder cup termination method ensures a strong and stable electrical connection, minimizing the risk of signal loss or interruption. This method is especially favored in applications where a permanent and reliable connection is necessary, such as industrial machinery, automation systems, and communication equipment.

The contacts of this connector are gold plated, offering superior conductivity and resistance to corrosion. Gold plating not only enhances the electrical performance by reducing contact resistance but also extends the lifespan of the connector by preventing oxidation and wear. This makes the 8-pin Male Solder Cup Circular Connector suitable for environments where consistent signal integrity is critical.

The insulation material used in this connector is high-quality thermoplastic, which provides excellent electrical insulation properties while being resistant to heat, chemicals, and mechanical stress. This thermoplastic insulation contributes to the overall durability and reliability of the connector, ensuring safe operation even under demanding conditions. Additionally, the insulation material supports the wide operating temperature range of -25℃ to +85℃, enabling the connector to perform effectively in various environmental conditions, from cold industrial settings to warmer indoor environments.

In terms of design, this circular connector draws inspiration from the proven Centronics Connector style, known for its robust locking mechanisms and reliable connections. The break-away locking type is a distinctive feature that sets this connector apart, allowing for quick disconnection without the need for additional tools. This feature is particularly beneficial in applications that require frequent plugging and unplugging, as it reduces wear on the connector and speeds up maintenance tasks.

The compact and ergonomic design of this circular connector makes it an excellent solution for applications where space is limited but reliable connectivity is essential. Its circular form factor not only provides mechanical strength but also simplifies alignment during mating, reducing the risk of damage to pins or sockets. This contributes to long-term operational reliability and reduces downtime caused by connection issues.

As an electrical connector, this 8-pin Male Solder Cup Circular Connector is suitable for a broad spectrum of industries, including industrial automation, robotics, telecommunications, and instrumentation. Its robust construction and high-quality materials ensure that it meets the stringent demands of these sectors, providing secure and stable connections for critical systems.

In summary, this Circular Plastic Connector offers a perfect balance of durability, performance, and ease of use. Its gold-plated contacts, thermoplastic insulation, and wide operating temperature range make it a dependable choice for various electrical connection needs. The break-away locking mechanism enhances user convenience and safety, while the solder cup termination ensures a solid and reliable connection. Whether you are looking for a connector inspired by the classic Centronics Connector design or need a versatile circular connector for your electrical systems, this 8-pin Male Solder Cup Circular Connector is an excellent solution.

Features:

• Product Name: Circular Connector
• Operating Temperature Range: -25℃ to +85℃
• Waterproof Rating: IP67, ensuring excellent protection against water and dust
• Contact Plating: Gold Plated for enhanced conductivity and corrosion resistance
• Operating Voltage: 250V suitable for various electrical applications
• Contact Material: High-quality Copper Alloy for durability and reliable performance
• Designed as a Circular Waterproof Connector ideal for harsh environments
• Also available as a Heavy Duty Rectangular Connector variant
• Part of the Circular Electrical Connectors family providing versatile connectivity solutions

Technical Parameters:

Applications:

The LP Circular Connector, model number LP-M8006, is a versatile and reliable solution designed for various demanding application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, this product guarantees high quality and consistency, making it an ideal choice for industries requiring robust and efficient connectivity. Its shock resistance capability of 980m/s² over 6ms with a half sine wave impact, tested 6 times, ensures durability and stable performance even in harsh environments.

This Circular Connector Cable Assembly is widely used in sectors such as automotive, aerospace, industrial machinery, and telecommunications, where secure and efficient electrical connections are crucial. The product’s insulation material is thermoplastic, providing excellent resistance to heat and environmental factors, while its copper alloy contact material ensures superior electrical conductivity and corrosion resistance. Available in whip, puck, and panel types, the LP-M8006 can be customized to meet different installation requirements.

The Circular Power Connector is particularly suitable for power distribution systems, control panels, and heavy-duty equipment where reliable power transmission is essential. Its black color and compact design make it easy to integrate into existing systems without compromising aesthetics or space. The packaging options, including tube and tray, help protect the connectors during transportation and storage, ensuring they arrive in perfect condition.

With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, the LP Circular Connector is an economical choice for large-scale projects. The supply ability of 100,000PCS and a delivery time of 7 to 10 days enable manufacturers to maintain steady production schedules without delay. Payment terms such as T/T, Western Union, and L/C offer flexibility and convenience to buyers worldwide.

Additionally, the hermetic connector variant of this product ensures airtight sealing, making it ideal for applications exposed to moisture, dust, or other environmental contaminants. This feature is especially important in outdoor installations, military equipment, or medical devices where reliability and protection are paramount. Overall, the LP-M8006 Circular Connector stands out as a dependable and cost-effective component for a wide range of electrical and electronic applications.

Customization:

Our LP brand Circular Connector, model number LP-M8006, is a high-quality product originating from China and certified under ISO-9001:2000 standards. We specialize in providing customizable solutions for Circular Electrical Connectors and Circular Plastic Connectors to meet your specific needs.

With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, we ensure efficient production and delivery within 7 to 10 days. The connectors come packaged securely in tubes or trays, ensuring safe transportation.

This versatile connector is available in whip, puck, and panel types, featuring an 8-pin male solder cup connector type made from durable copper alloy contact material. The color is black, and the length can be customized to your requirements.

Our supply ability reaches up to 100,000PCS, supporting large-scale orders with reliable payment terms including T/T, Western Union, and L/C. Choose our Circular Connectors for superior performance and customization flexibility.

Support and Services:

Our Circular Connector product is supported by a dedicated technical support team committed to ensuring seamless integration and optimal performance. We provide comprehensive assistance including product selection guidance, application support, troubleshooting, and maintenance recommendations. Our services also encompass custom configuration options, compliance documentation, and lifecycle management to meet your specific project requirements. For detailed technical information, installation instructions, and best practices, please refer to the product datasheets and user manuals available on our website.

We strive to deliver prompt and effective solutions to any technical challenges you may encounter. Our experts are equipped to assist with design inquiries, compatibility assessments, and environmental considerations to help you maximize the reliability and durability of your circular connector installations. Additionally, we offer training sessions and webinars to keep your team informed about the latest advancements and industry standards related to circular connectors.

By choosing our Circular Connector product, you gain access to a full spectrum of technical support and services designed to facilitate successful implementation and long-term satisfaction. We are committed to partnering with you throughout the product lifecycle to ensure your connectivity needs are consistently met with excellence.

Packing and Shipping:

Our Circular Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent damage from shocks and vibrations.

For shipping, we use reliable carriers that provide tracking and insurance options. Orders are processed promptly and shipped within 1-3 business days. We offer worldwide shipping with various delivery speed options to meet your needs.

Please ensure the shipping address provided is accurate to avoid delays. For bulk orders, custom packaging solutions are available upon request to accommodate special requirements.
