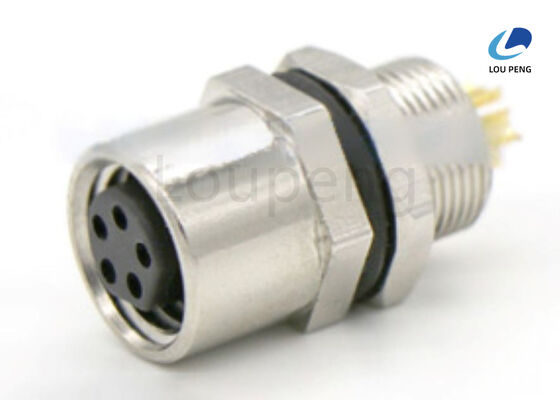

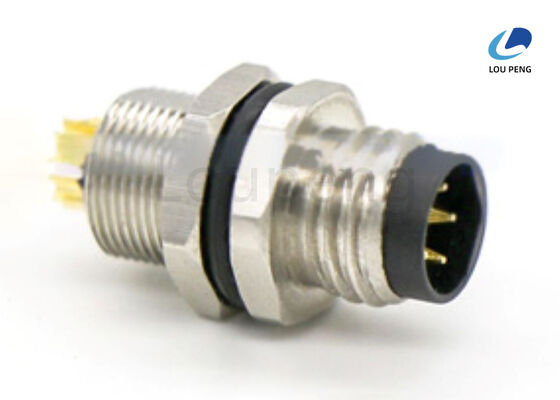

Panel Circular Connector Cable Assembly With Temperature Range Minus 25 Celsius to Plus 85 Celsius Connection for Industrial

Product Description:

The Circular Connector is a highly reliable and versatile industrial connector designed to meet the demanding requirements of various applications. Engineered with precision and durability in mind, this circular connector cable offers exceptional performance and ease of use, making it an ideal choice for both industrial and commercial environments.

One of the key features of this circular connector is its compatibility with cable outer diameters ranging from 2.6mm to 7.5mm, allowing it to accommodate a wide variety of cable sizes. This flexibility ensures that it can be seamlessly integrated into numerous systems, providing a secure and stable connection that is essential for uninterrupted operation in critical applications.

The locking mechanism of this circular connector employs a break-away type design, which enhances both safety and convenience. The break-away locking type ensures that the connector remains firmly in place during use, preventing accidental disconnections that could lead to system failures. At the same time, it allows for quick and easy disassembly when needed, facilitating maintenance and reducing downtime.

Constructed from high-quality materials, the insulation of this circular connector is made from thermoplastic, a material known for its excellent insulating properties, resistance to heat, and durability under harsh environmental conditions. This thermoplastic insulation protects the internal components from damage, moisture, and electrical interference, thereby increasing the overall lifespan and reliability of the connector.

The contact resistance of the circular connector is maintained at a maximum of 5 OHMS, ensuring efficient electrical conductivity and minimal energy loss. Low contact resistance is crucial in maintaining signal integrity and power transmission, especially in industrial settings where consistent performance and reliability are paramount.

Furthermore, the contacts within this circular connector are made from a high-quality copper alloy. Copper alloy is widely recognized for its superior electrical conductivity, corrosion resistance, and mechanical strength. Using copper alloy contacts guarantees that the connector provides stable and efficient electrical connections even in demanding environments, reducing the risk of connection failures and ensuring long-term operational stability.

Circular connectors, such as this product, are essential components in many industrial systems due to their robustness and versatility. They are commonly used in automation equipment, robotics, machinery, and control systems, where reliable and secure electrical connections are critical. The circular connector cable design allows for easy mating and unmating, making installation and maintenance straightforward and efficient.

In summary, this circular connector is an excellent choice for anyone seeking a durable, efficient, and easy-to-use industrial connector. Its wide cable OD compatibility, break-away locking mechanism, thermoplastic insulation, low contact resistance, and copper alloy contacts collectively contribute to its outstanding performance. Whether used in harsh industrial environments or precision electronic assemblies, this circular connector offers reliable connectivity and peace of mind.

By choosing this circular connector cable, users benefit from a product that combines advanced materials, thoughtful design, and rigorous quality standards. It stands out as a dependable solution for a broad range of applications, ensuring that electrical connections remain secure, efficient, and long-lasting.

Features:

• Product Name: Circular Connector
• Operating Voltage: 250V
• Insulation Material: Thermoplastic
• Locking Type: Break-away for secure and easy disconnection
• Length: Customizable to meet specific requirements
• Type Options: Whip, Puck, and Panel configurations available
• Ideal for Circular Connector Cable applications
• Designed to provide reliable performance in Circular Connector Cable systems
• Includes Circular Push Pull Connectors for enhanced connectivity

Technical Parameters:

Applications:

The LP Circular Connector, model LP-M8012, is a versatile and reliable solution designed for various application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, this Circular Plastic Connector stands out for its durability and high performance. With a waterproof rating of IP67, it is ideal for use in harsh environments where moisture and dust resistance are critical, such as outdoor industrial equipment, automotive wiring systems, and marine applications.

Thanks to its robust shock resistance of 980m/s² for 6ms with a half sine wave applied six times, the LP-M8012 Circular Connector excels in environments subject to vibrations and mechanical shocks. This makes it perfect for use in transportation sectors, heavy machinery, and aerospace technologies where reliability under stress is essential. The connector’s contact material, made of high-quality copper alloy, ensures excellent electrical conductivity and longevity, making it suitable for critical electrical connections.

This product is available in whip, puck, and panel types, providing flexible installation options to suit different mounting and connection requirements. It supports cable outer diameters ranging from 2.6mm to 7.5mm, accommodating a wide variety of cable sizes. With a minimum order quantity of 1000PCS and a competitive price of 0.03 USD per piece, the LP Circular Connector is an economical choice for large-scale manufacturing and assembly processes.

Packaging in tube or tray formats guarantees safe transportation and easy handling, while a delivery time of 7 to 10 days ensures efficient supply chain management. The supply ability of up to 100,000PCS ensures that demand can be met promptly. Payment terms including T/T, Western Union, and L/C provide flexibility for international buyers.

The LP-M8012 Circular Connector is especially suitable as a Cable Connector Fitting in industrial automation, telecommunications, and electronic instrumentation. Additionally, it functions effectively as a Centronics Connector alternative for secure and reliable data and power transmission in computer peripherals and networking devices. The combination of its high-quality materials, robust design, and flexible configurations makes the LP Circular Connector an excellent choice for engineers and designers seeking dependable cable connection solutions in diverse application scenarios.

Customization:

Our Circular Connector product, model LP-M8012 by LP, is a high-quality Circular Metal Connector designed to meet diverse application needs. Manufactured in China and certified with ISO-9001:2000, this Integrated Connector offers reliable performance with a contact resistance of 5 OHMS max and gold-plated contacts for enhanced conductivity and durability.

Designed with a break-away locking type, the connector ensures secure connections while allowing easy disconnection when necessary. It operates efficiently within a temperature range of -25℃ to +85℃ and withstands shocks up to 980m/s² for 6ms using a half sine wave, repeated 6 times, making it robust for demanding environments.

We offer flexible product customization services with a minimum order quantity of 1000PCS, priced at $0.03 per piece. Packaging options include tube or tray to suit your logistics needs. Our supply ability reaches up to 100,000PCS, ensuring timely delivery within 7 to 10 days.

Payment terms are convenient and secure, accepting T/T, Western Union, and L/C. Choose our Circular Connector solutions for reliable Connectors that combine excellent performance, customization flexibility, and prompt delivery.

Support and Services:

Our Circular Connector product comes with comprehensive technical support and services to ensure optimal performance and reliability. We provide detailed product documentation, including datasheets, installation guides, and application notes to assist you in the proper selection and use of the connector.

For technical inquiries, our team of experts is available to offer guidance on design integration, compatibility, and troubleshooting. We also offer customized solutions and modifications to meet specific application requirements.

Additionally, we provide testing and validation services to verify connector performance under various environmental and electrical conditions. Our commitment to quality includes rigorous inspection processes and continuous improvement initiatives.

Installation and maintenance support is available to help extend the lifespan of your connectors and maintain system integrity. We also offer training sessions and webinars to keep your team updated on the latest technologies and best practices related to circular connectors.

By choosing our Circular Connector product, you gain access to a dedicated support network aimed at maximizing your project success and minimizing downtime.

Packing and Shipping:

Our Circular Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent electrostatic discharge and moisture damage. The connectors are then placed in custom-designed foam inserts that secure the product firmly within sturdy corrugated boxes.

For shipping, we use durable outer cartons labeled with handling instructions to ensure careful treatment. Multiple packaging layers provide shock absorption and minimize vibration impact. Depending on the order size, products are shipped via reliable courier services with tracking options available to ensure timely and safe delivery.

We also offer customized packaging solutions upon request to meet specific customer requirements or regulatory standards. Our commitment is to deliver the Circular Connectors in perfect condition, ready for immediate use upon arrival.
