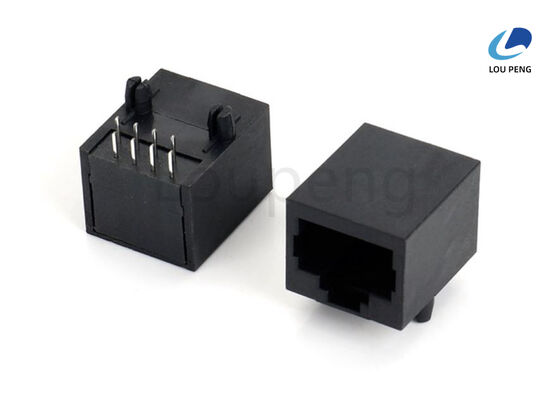

Dielectric Strength 1000 V AC or 1500 V DC RMS at 0.5mA 50 Hz 60 Hz for 1 Minute Ethernet Network Connector Offering 1.5 AMP Current Rating

Product Description:

The RJ45 / LAN Connector is a high-quality networking component designed to provide reliable and efficient connectivity for various Ethernet applications. This connector is engineered to meet the demanding requirements of modern network environments, ensuring stable data transmission and long-lasting performance. Featuring a robust LAN RJ45 Interface, this product is suitable for use in a wide range of networking devices, including switches, routers, patch panels, and network interface cards.

One of the key features of this RJ45 Modular Jack is its precision contact design. The contacts are made from phosphor bronze with a thickness of 0.35mm, which offers excellent conductivity and durability. Phosphor bronze is known for its superior resistance to corrosion and wear, ensuring that the connector maintains a reliable connection over extended periods of use. This material choice also contributes to the overall mechanical strength of the contacts, reducing the risk of deformation or damage during repeated plug-in and unplugging cycles.

The RJ45 / LAN Connector supports a wide range of cable types, making it highly versatile and adaptable to different network configurations. It is compatible with Cat5e, Cat6, Cat6a, and Cat7 cables, allowing it to handle various Ethernet standards and speeds. Whether you're setting up a simple home network or a high-speed enterprise-level infrastructure, this connector can accommodate your needs. The support for Cat7 cables also means it can handle higher frequencies and provide improved shielding against interference, resulting in enhanced signal integrity and reduced data loss.

The housing material of this Ethernet Connector Plug is made from high-grade plastic polycarbonate. This choice of material ensures that the connector is lightweight yet strong, providing excellent resistance to impact and environmental stress. The polycarbonate housing also offers good insulation properties, protecting the internal components from electrical interference and physical damage. Additionally, its smooth surface finish allows for easy insertion and removal of Ethernet cables, contributing to a user-friendly experience.

In terms of electrical performance, this RJ45 Modular Jack boasts an impressive insulation resistance of 500 to 1000 megaohms (MΩ) minimum at 500V DC. This high insulation resistance helps to prevent unwanted current leakage and ensures stable signal transmission, which is crucial for maintaining network reliability. Such electrical characteristics make this connector suitable for use in environments where electrical noise and interference could potentially disrupt data communication.

Before furnace processing, the connector exhibits a weight range of approximately 6.5kg to 7.5kg, indicating its solid build quality and the inclusion of durable materials throughout its construction. This weight range reflects the careful balance between robustness and practicality, ensuring that the connector is sturdy enough to withstand mechanical stress while remaining manageable for installation and maintenance purposes.

Overall, the RJ45 / LAN Connector with its LAN RJ45 Interface, high-quality phosphor bronze contacts, and compatibility with multiple Ethernet cable categories stands out as an excellent choice for anyone looking to establish a reliable and efficient network connection. Its plastic polycarbonate housing, high insulation resistance, and durable construction make it a dependable Ethernet Connector Plug for both residential and commercial networking applications. Whether you need a durable RJ45 Modular Jack for upgrading your existing network or building a new infrastructure from the ground up, this connector offers the performance and reliability you can trust.

Features:

• Product Name: RJ45 / LAN Connector
• Application: LAN Networking
• Type: Ethernet Port Connector
• Also Known As: Ethernet Connector Plug, Ethernet Network Connector
• Insulation Resistance: 500 / 1000MΩ minimum at 500V DC
• Retention Strength: 50N or 30N minimum for 60 seconds ±5 seconds
• Before Furnace Weight: 6.5kg to 7.5kg
• Housing Material: Plastic (Polycarbonate)

Technical Parameters:

Applications:

The LP-RJ036 LAN Cable Connector, manufactured by LP in China, is an essential component designed for reliable and high-performance network connections. Certified with ISO-9001:2000, this RJ45 Modular Jack ensures premium quality and durability, making it an ideal choice for various application occasions and scenarios in both residential and commercial environments. With a minimum order quantity of 1000PCS and a competitive price of 0.003 per unit, it offers excellent value for large-scale installations.

This LAN Cable Connector supports a wide range of cable compatibilities, including Cat5e, Cat6, Cat6a, and Cat7, making it highly versatile for different networking requirements. It is suitable for use in office buildings, data centers, telecommunications rooms, and home networking setups where stable and fast Ethernet connections are crucial. The LP-RJ036 is designed to accommodate RJ45, RJ11, and RJ12 connector types, offering flexibility for various communication systems and devices.

Thanks to its advanced gold plating over nickel, with plating thickness options ranging from 1U to 50U on the contact area, the connector provides excellent corrosion resistance and optimal signal transmission. This feature is particularly valuable in environments with high electromagnetic interference or where long-term reliability is mandatory. Additionally, the LP-RJ036 LAN Cable Connector guarantees a retention strength of 50N or 30N minimum for 60 seconds ±5 seconds, ensuring secure and stable connections even in demanding applications.

Packaging options for this RJ45 Modular Jack include reel and tray formats, facilitating efficient handling and installation during network assembly processes. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP can meet the demands of fast-paced projects and large deployment schedules. Payment terms such as T/T, Western Union, and L/C further simplify procurement for international clients.

Typical application scenarios for the LP-RJ036 LAN Cable Connector include wired LAN networks in corporate offices, internet service provider installations, network switches, routers, and patch panels. It is also widely used in smart home systems, security camera networks, and industrial automation where reliable data transmission is essential. The 12-month guarantee period offers peace of mind, assuring users of the connector’s performance and longevity in various networking environments.

In summary, the LP-RJ036 LAN Cable Connector is a high-quality, versatile, and cost-effective solution for all your network connection needs. Whether you are setting up a new local area network or upgrading existing infrastructure, this RJ45 Modular Jack delivers superior performance and reliability across diverse application occasions and scenarios.

Customization:

Introducing the LP brand RJ45 / LAN Connector, model number LP-RJ036, designed and manufactured in China with ISO-9001:2000 certification. This high-quality LAN Cable Connector meets rigorous standards to ensure reliability and performance in Ethernet network applications.

Our RJ45 Network Socket offers versatile mounting types including Through Hole, Surface Mount, and SMT, catering to various installation needs. The connector housing is made from durable LCP, PBT, or PA46 materials in black color, complying with UL 94V-0 flame retardant standards, ensuring safety and longevity.

Featuring shielding options of Shielded or Unshielded, the connector incorporates an iron alloy shield with a thickness of 0.2mm and a 30 microinch nickel finish for enhanced protection against electromagnetic interference.

With a retention strength of 50N or 30N minimum for 60 seconds ±5 seconds, this Ethernet Network Connector guarantees secure and stable connections in your network setup. The product is packaged in reels or trays for efficient handling and storage.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.003 per unit. Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience.

Choose the LP-RJ036 RJ45 Network Socket for your next project to ensure exceptional quality, reliability, and customization options tailored to your networking needs.

Support and Services:

Our RJ45 / LAN Connector product is designed to provide reliable and high-performance network connectivity for various applications. For technical support, please ensure that the connector is used within the specified environmental and electrical parameters to maintain optimal performance.

If you encounter any issues with the RJ45 / LAN Connector, verify the compatibility with your network devices and cables. Proper installation is crucial; ensure that the connector is securely attached and that all pins are correctly aligned to avoid connectivity problems.

For maintenance, regularly inspect the connector for any signs of damage, corrosion, or wear. Cleaning should be performed using appropriate electronic contact cleaners to prevent dust and debris buildup, which can affect signal quality.

Should you require further assistance or technical documentation, please refer to the product manual or visit our official website for detailed resources and troubleshooting guides.

We are committed to providing excellent customer service and support to ensure your networking solutions perform reliably and efficiently.

Packing and Shipping:

Each RJ45 / LAN Connector is carefully packaged in anti-static bags to prevent any damage from electrostatic discharge during handling and transit.

The connectors are then placed securely in sturdy cardboard boxes with appropriate cushioning materials to avoid any physical damage.

For bulk orders, the products are organized in labeled boxes to ensure easy identification and inventory management.

All packages are sealed properly and marked with handling instructions to ensure safe transportation.

We offer various shipping options including standard, expedited, and express delivery to meet customer requirements.

Tracking information is provided once the shipment is dispatched, allowing customers to monitor their order status until delivery.
