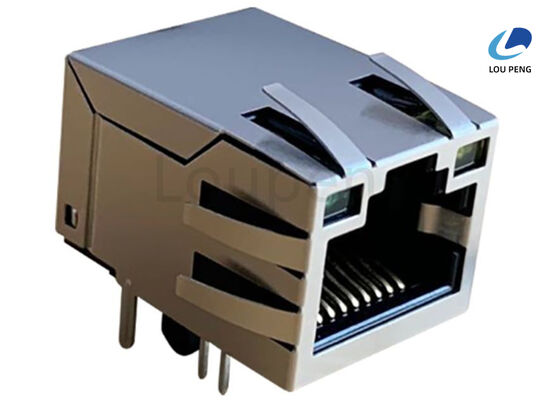

Plastic Polycarbonate Housing RJ45 Modular Jack Offering 750 Cycles Insertion Life Compatible with Ethernet Patch Panels

Product Description:

The RJ45 / LAN Connector is a high-quality Ethernet Port Connector designed specifically for LAN networking applications. It serves as a crucial component in establishing reliable and efficient Local Area Network connections, ensuring seamless data transmission and robust performance across various networking environments. This connector is engineered to meet the stringent requirements of modern Ethernet systems, making it an ideal choice for both commercial and industrial networking installations.

Constructed with a durable brass shell, the RJ45 / LAN Connector offers exceptional mechanical strength and corrosion resistance. The brass shell thickness options of 0.15 mm and 0.2 mm provide enhanced shielding against electromagnetic interference (EMI), which is vital for maintaining signal integrity in complex network setups. This robust shell ensures a stable and secure connection, minimizing the risk of data loss or connection failures during operation.

The housing of the connector is made from high-grade materials such as LCP (Liquid Crystal Polymer), PBT (Polybutylene Terephthalate), and PA46 (Polyamide 46), all available in black color. These materials are selected for their excellent thermal stability and mechanical durability, complying with UL 94V-0 flammability standards. This compliance guarantees that the connector is safe to use in environments where fire resistance is critical, adding an extra layer of safety and reliability to network installations.

In terms of standards compliance, this Ethernet Connector Plug adheres rigorously to TIA/EIA-568 and IEEE 802.3 specifications. These industry standards are essential for ensuring interoperability and consistent performance across different networking devices and systems. By conforming to these standards, the RJ45 / LAN Connector guarantees compatibility with a wide range of Ethernet equipment, facilitating straightforward integration and reliable network performance.

The plating of the connector is meticulously designed to optimize conductivity and durability. It features gold plating over nickel, with varying thicknesses tailored to specific connection areas. The plated nickel layer ranges from 30 to 50 microinches, providing a solid base that resists corrosion and wear. The soldering area is coated with 100 to 120 microinches of tin plating to ensure excellent solderability and mechanical stability during assembly.

The contact area, which is critical for signal transmission, is plated with gold in multiple thickness options including 1, 3, 6, 15, 30, and 50 microinches. This gold plating not only enhances electrical conductivity but also prevents oxidation and tarnishing over time, maintaining a reliable electrical interface for the Ethernet Port Connector. Such detailed attention to plating ensures long-term performance and reduces maintenance requirements.

Overall, the RJ45 / LAN Connector is a superior Local Area Network Connector that combines rugged construction, compliance with key industry standards, and advanced plating technology. It is perfectly suited for use as an Ethernet Connector Plug in a variety of networking applications, from office environments to data centers and industrial networks. Its design and material choices reflect a commitment to quality, reliability, and performance, making it a dependable component for any Ethernet-based communication system.

Whether you are building a new network or upgrading an existing infrastructure, this RJ45 / LAN Connector offers a reliable and efficient solution for establishing high-speed, stable Ethernet connections. Its compatibility with the latest networking standards and robust physical construction ensure that it will deliver consistent performance in demanding environments. Trust this connector to be the backbone of your Local Area Network, providing the critical link needed for smooth and uninterrupted data communication.

Features:

• Product Name: RJ45 / LAN Connector
• Connector Types Supported: RJ45, RJ11, RJ12
• Shield Material: Iron Alloy, Thickness 0.2mm
• Shield Finish: 30μ" Nickel for enhanced durability
• Shell Material: Brass with thickness options of 0.15mm and 0.2mm
• Infrared Temperature Tolerance: 260 ± 5°C for 5 to 10 seconds
• Maximum Contact Resistance: 20 to 30 milliohms
• Ideal LAN Cable Connector for reliable network connections
• High-quality LAN Cable Connector ensuring stable signal transmission
• Compatible with RJ45 Network Socket for versatile networking applications

Technical Parameters:

Applications:

The LP-RJ029 LAN Cable Connector, manufactured by the reputable brand LP in China, is designed to provide reliable and high-performance connectivity solutions for a wide range of networking applications. Certified under ISO-9001:2000, this Ethernet Connector Plug is engineered to meet stringent quality standards, ensuring durability and consistent performance in various environments. With its shielded and unshielded options, the LP-RJ029 caters to different installation needs, providing flexibility and enhanced protection against electromagnetic interference.

This Network Interface Connector is widely used in both residential and commercial settings where stable and fast network connections are essential. Ideal for setting up home networks, office LANs, data centers, and server rooms, the LP-RJ029 facilitates seamless communication between devices through wired Ethernet connections. Whether you are installing IPTV systems, VOIP phones, or high-speed internet access points, this connector ensures minimal signal loss and superior conductivity thanks to its gold-plated contacts, which are plated over nickel for added corrosion resistance.

The LP-RJ029 is particularly suitable for scenarios requiring high dielectric strength, boasting 1000 V AC or 1500 V DC RMS at 0.5mA 50 Hz / 60 Hz for 1 minute, making it reliable for environments with electrical noise or fluctuations. Its plastic polycarbonate housing offers robust protection while remaining lightweight and easy to handle during installation. The connector comes packaged in reels or trays, supporting efficient mass production and large-scale deployment with a minimum order quantity of 1000 pieces, a supply ability of 100,000 pieces, and a competitive price of $0.003 per unit.

Delivery times range from 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C, making procurement straightforward for businesses of all sizes. The LP-RJ029 LAN Cable Connector is an excellent choice for network engineers, IT professionals, and manufacturers seeking a dependable Ethernet Connector Plug that guarantees optimal network performance and long-term reliability across various application occasions such as corporate offices, educational institutions, industrial automation, and smart home installations.

Customization:

Our LP brand RJ45 / LAN Connector, model number LP-RJ029, offers exceptional product customization services tailored to meet your specific networking needs. Manufactured in China and certified with ISO-9001:2000, this LAN Cable Connector ensures high quality and reliability for all your network projects.

With a minimum order quantity of 1000PCS and a competitive price of $0.003 per unit, we provide flexible packaging options including Reel and Tray to suit your inventory requirements. Our efficient supply ability of 100,000PCS and delivery time of 7 to 10 days guarantee timely fulfillment of your orders.

The LP-RJ029 Network Interface Connector is compatible with a wide range of cables including Cat5e, Cat6, Cat6a, and Cat7, making it ideal for various network environments. It features a durable plastic (polycarbonate) housing material, a current rating of 1.5 AMP, and a mating/unmating force of 30N/3.06KGf max, ensuring robust performance.

Before furnace processing, the connector weight ranges between 6.5kg to 7.5kg, reflecting its solid construction quality. Payment terms are flexible, supporting T/T, Western Union, and L/C methods to facilitate smooth transactions.

Whether you require an RJ45 Network Socket for industrial or commercial applications, our customization services can adapt the product specifications to meet your unique requirements. Trust LP's RJ45 / LAN Connector to deliver superior connectivity solutions for your networking infrastructure.

Support and Services:

Thank you for choosing our RJ45 / LAN Connector product. To ensure optimal performance and longevity of your connector, please follow the installation and handling guidelines provided in the product manual.

Our RJ45 / LAN Connectors are designed to meet industry standards for network connectivity, providing reliable and high-speed data transmission for your LAN applications.

If you encounter any issues with the product, please verify the compatibility with your network devices and check all cable terminations for proper assembly. Ensure that the connector is securely plugged into the appropriate port without excessive force.

For troubleshooting common problems such as connectivity loss or intermittent signals, inspect the connector for physical damage, corrosion, or dirt. Cleaning the contacts gently with isopropyl alcohol may help restore functionality.

We recommend using our connectors within the specified temperature and environmental conditions to avoid degradation. Avoid bending or twisting the cable near the connector to prevent mechanical stress.

Should you require technical assistance, please refer to the detailed product datasheet and installation guide available on our website. Our support team is ready to help with any technical inquiries or product-related questions.

We are committed to providing high-quality products and support to ensure your network operates efficiently. Thank you for trusting our RJ45 / LAN Connector for your connectivity needs.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective anti-static bag to prevent damage and ensure product integrity during transit.

The connectors are then carefully placed in sturdy cardboard boxes with adequate cushioning materials to avoid movement and impact.

For bulk orders, multiple individual packages are consolidated into larger boxes, securely sealed and labeled for easy identification.

All packages are clearly marked with handling instructions and product details to ensure proper care during shipping and storage.

We utilize reliable courier services to guarantee timely delivery, and tracking information is provided for all shipments.
