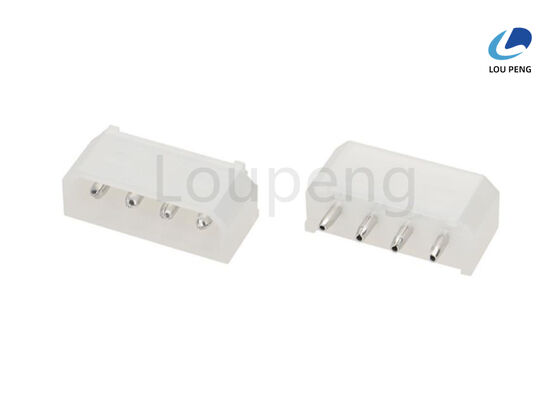

Operating temperaturerange minus 40 degrees Celsius to 85 degrees Celsius Wafer Terminal Housing Unit with High Temperature Plastic Insulating Material UL94V-0

Product Description:

The Plastic Housing Wafer Terminal is a highly versatile and reliable component designed for various electronic applications. Known for its robust construction and excellent electrical performance, this product is an essential part of any Wafer Terminal Housing Assembly. It is engineered to operate efficiently within a wide temperature range, from -40°C to 85°C, ensuring stable performance even in harsh environmental conditions.

This Housing Wafer Terminal is available in multiple configurations to suit different design requirements. It comes in Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows types, providing flexibility for diverse circuit board layouts. Such variety allows engineers to select the optimal configuration that best fits their assembly needs, enhancing both functionality and ease of installation.

The product features a range of pitch options, including 0.80mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm, 2.50mm, 2.54mm, 3.00mm, 3.96mm, 4.20mm, and 5.08mm. This extensive pitch selection enables precise alignment and connectivity in complex electronic assemblies, making the Plastic Housing Wafer Terminal suitable for applications requiring fine-pitch connections as well as those needing wider spacing. This adaptability is critical in modern electronics where space optimization and electrical integrity are paramount.

Standard plating options for the Housing Wafer Terminal include Gold and Tin Plated finishes with a thickness of 100 microinches (100U"). These plating materials provide excellent corrosion resistance and reliable electrical conductivity, which are vital for maintaining signal integrity and preventing contact degradation over time. The high-quality plating ensures that the Wafer Terminal Housing Assembly maintains consistent performance throughout its lifecycle.

One of the key performance characteristics of this product is its low contact resistance, rated at a maximum of 20 milliohms (20mΩ). This low resistance is crucial for minimizing power loss and ensuring efficient electrical connections within the assembly. The combination of low contact resistance and durable plating makes the Plastic Housing Wafer Terminal an ideal choice for high-performance electronic devices where reliability and efficiency are critical.

In addition to its electrical properties, the Plastic Housing Wafer Terminal is designed with robust plastic materials that offer excellent mechanical strength and durability. This makes it resistant to wear and mechanical stress during assembly and operation. The housing also provides effective insulation and protection for the contacts, reducing the risk of short circuits and enhancing the overall safety of the electronic system.

The Plastic Housing Wafer Terminal plays a vital role in the Wafer Terminal Housing Assembly by securely holding the contacts in place and ensuring precise alignment. This assembly is essential for creating reliable interconnections in printed circuit boards (PCBs) and other electronic modules. The product’s design facilitates easy insertion and removal of terminals, which helps simplify maintenance and repair tasks, ultimately reducing downtime and operational costs.

Overall, the Plastic Housing Wafer Terminal is a dependable component that combines mechanical robustness, excellent electrical performance, and versatile design options. Its wide operating temperature range, diverse types, multiple pitch sizes, and superior plating finishes make it suitable for a broad spectrum of electronic applications. Whether used in consumer electronics, industrial equipment, or communication devices, this product ensures optimal performance and long-term reliability within any Wafer Terminal Housing Assembly.

Features:

• Product Name: Housing Wafer Terminal Connector
• Voltage Rating: 50V AC / DC
• Current Rating: 1A AC / DC
• Application: Electrical Housing For Wafer Terminals
• Contact Material: Copper Alloy
• Mounting Type: Panel Mount
• Type: Plastic Housing Wafer Terminal
• Also known as: Wafer Terminal Housing Unit

Technical Parameters:

This Wafer Terminal Housing Assembly serves as a reliable Housing for Wafer Terminal solutions, providing a durable Housing Wafer Terminal Connector for various electrical applications.

Applications:

The LP Housing for Wafer Terminal, model number LP-WF013, is a high-quality component designed for reliable electrical connections in various industrial and commercial applications. Originating from China and certified under ISO-9001:2000, this product guarantees consistent performance and durability. Its panel mount design, with a voltage rating of 250V and an insulator resistance of 500 Megohms minimum, makes it ideal for secure and stable installations in control panels, electrical enclosures, and other mounting surfaces requiring efficient wafer terminal housing solutions.

Designed to meet stringent industry standards, the LP-WF013 Housing for Wafer Terminal is RoHS compliant and UL Certified, ensuring safety, environmental responsibility, and regulatory adherence. The product also boasts a withstanding voltage of 500V AC per minute, providing excellent insulation and protection against electrical surges, which is crucial in applications involving sensitive electronic equipment or high-voltage circuits.

The Wafer Terminal Housing Assembly is widely used in scenarios such as industrial automation systems, telecommunications equipment, power distribution units, and consumer electronics where secure and reliable terminal housing is essential. Its versatile packaging options—Reel, Tube, Tray, or Polybag—allow for convenient handling and integration into automated manufacturing processes or manual assembly lines. With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, LP ensures timely delivery within 7 to 10 days, accommodating both large-scale and small-batch production needs.

Payment terms including T/T, Western Union, and L/C offer flexibility and ease in procurement. Priced competitively at 0.0001 per unit, the LP Housing for Wafer Terminal provides an economical yet robust solution for engineers and manufacturers. Whether you are assembling wafer terminal housings for electrical panels, repairing existing equipment, or developing new electronic devices, the LP-WF013 stands out as a dependable choice for maintaining high performance and safety standards.

In summary, the LP Housing for Wafer Terminal and the Wafer Terminal Housing Assembly are essential components in electrical and electronic applications that demand reliability, compliance, and efficient mounting solutions. Their robust design, certifications, and flexible packaging make them suitable for a wide range of usage occasions and scenarios, from industrial automation to consumer electronics manufacturing.

Customization:

Introducing the LP Housing Wafer Terminal product, model number LP-WF013, proudly made in China and certified with ISO-9001:2000. This Housing Wafer Terminal Connector is designed for reliable and efficient electrical connections, featuring a voltage rating of 50V AC/DC and available in various types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows to suit different application needs.

The terminal type is Screw Terminal, ensuring secure and durable connections. The insulator material used is PA46 (UL94V-0) compliant with RoHS standards, providing excellent safety and environmental compliance. The contact material includes high-quality Phosphor Bronze and Brass, guaranteeing superior conductivity and corrosion resistance.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag to meet your specific requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, this Wafer Terminal Housing Assembly is ideal for both small and large scale production.

Our supply ability is robust at 100,000PCS, ensuring timely fulfillment of your orders. Delivery time ranges from 7 to 10 days, with convenient payment terms including T/T, Western Union, and L/C. Choose the LP Housing Wafer Terminal Connector for a reliable, certified, and customizable solution tailored to your electronic assembly needs.
