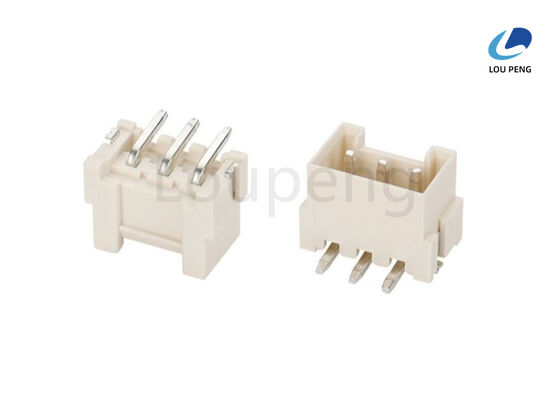

SMT Plastic Housing Wafer Terminal Double Row Vertical Gold Plated Standard Connector Optimized for Circuit Applications

Product Description:

The Housing Wafer Terminal is a versatile and reliable component designed to meet the demanding requirements of modern electrical and electronic applications. This Electrical Housing Wafer Terminal offers exceptional performance and durability, making it an ideal choice for various connector solutions. Manufactured with precision and high-quality materials, it ensures secure and stable connections, which are critical for maintaining the integrity of electrical systems.

One of the key features of this Wafer Terminal Housing Component is its low contact resistance, rated at a maximum of 20MΩ. This low resistance ensures efficient electrical conductivity, reducing power loss and enhancing the overall performance of the connected devices. Such a characteristic is particularly important in applications where signal integrity and minimal electrical interference are paramount.

The Connector Housing Wafer Terminal is available in multiple configuration types, including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows. This variety provides flexibility in design and application, allowing engineers and designers to select the most suitable configuration for their specific needs. Whether it is for compact PCB layouts or high-density connector applications, these options cater to a broad spectrum of industrial and commercial uses.

Constructed from PA46 insulator material, the Housing Wafer Terminal benefits from excellent mechanical strength and thermal stability. The PA46 material complies with UL94V-0 standards, ensuring that it is flame retardant and safe for use in environments where electrical safety is critical. Additionally, this product meets RoHS requirements, confirming its compliance with environmental regulations by restricting the use of hazardous substances.

Designed to operate efficiently within a temperature range of -40°C to 85°C, the Housing Wafer Terminal is suitable for use in diverse environmental conditions. This wide operating temperature range guarantees reliable performance in both low-temperature and high-temperature settings, making it an excellent choice for automotive, industrial, and consumer electronics applications.

The robust design and high-quality construction of this Electrical Housing Wafer Terminal ensure long-term reliability and durability. It provides excellent resistance against wear, corrosion, and environmental stress, contributing to the longevity of the electrical connections it supports. This reliability makes it an indispensable part of critical systems where failure is not an option.

In summary, the Housing Wafer Terminal stands out as a high-performance connector housing solution that combines low contact resistance, versatile configuration options, superior material quality, and broad temperature tolerance. Whether used as a Wafer Terminal Housing Component in complex electronic assemblies or as a Connector Housing Wafer Terminal in demanding industrial applications, this product delivers consistent and dependable results. Its adherence to stringent safety and environmental standards further enhances its appeal to designers and manufacturers seeking quality and compliance in their electrical components.

Features:

• Product Name: Housing Wafer Terminal
• Wafer Terminal Housing Assembly with excellent durability
• Connector Housing Wafer Terminal offers reliable electrical performance
• Plastic Housing Wafer Terminal made from high-quality PA46 (UL94V-0) material, RoHS compliant
• After environmental testing: Insulator resistance up to 30MΩ Max
• Insulator Resistance: 500 Megohms Min for superior insulation
• Number of contacts available: 2 to 64 pins to suit various applications
• Available Types: Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations

Technical Parameters:

Applications:

The LP Housing Wafer Terminal, model number LP-WF025, is a high-quality Plastic Housing Wafer Terminal designed to meet the demanding needs of modern electronic applications. Manufactured in China and certified under ISO-9001:2000, this product ensures reliable performance and superior quality. Its robust construction from premium materials such as phosphor bronze and brass, combined with copper alloy contact material, guarantees excellent conductivity and durability. With a maximum contact resistance of 20MΩ and a withstanding voltage of 500V AC per minute, the LP-WF025 is ideal for use in various electrical and electronic connector assemblies.

This Connector Housing Wafer Terminal is widely used in industries requiring secure, stable, and efficient electrical connections. Its plastic housing offers insulation and protection, making it suitable for applications in telecommunications, automotive electronics, industrial machinery, and consumer electronics. The Housing Shell for Wafer Terminal design allows for easy integration into connector systems, providing a compact and reliable solution for housing wafer terminals. The product’s packaging options, including reel, tube, tray, and polybag, cater to different assembly line requirements, making it convenient for mass production environments.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-WF025 is an economical choice for manufacturers looking to balance cost and quality. The supply ability of up to 1,000,000PCS ensures that large-scale projects can be supported with consistent product availability. Delivery is prompt, typically within 7 to 10 days, facilitating efficient production schedules. Payment terms are flexible, accepting T/T, Western Union, and L/C, which simplifies the procurement process for domestic and international buyers alike.

Typical application occasions for the LP Plastic Housing Wafer Terminal include the assembly of electronic connectors in communication devices, control panels, automotive wiring harnesses, and consumer electronics where reliable electrical contact and insulation are critical. Its use is also prevalent in industrial automation systems and instrumentation, where precise and durable connections are necessary to maintain system integrity and performance. The LP-WF025’s compact design and excellent electrical properties make it an essential component in modern connector solutions.

In summary, the LP Housing Wafer Terminal LP-WF025 is a versatile and dependable product perfectly suited for a broad range of application scenarios. Its plastic housing provides safety and durability, the connector housing wafer terminal design ensures easy installation and secure connections, and the housing shell for wafer terminal construction offers protection and longevity. Whether used in high-volume manufacturing or specialized electronic assemblies, this product stands out as a reliable choice for engineers and manufacturers worldwide.

Customization:

Introducing the LP Housing Wafer Terminal Connector, model number LP-WF025, proudly made in China. This Housing Shell for Wafer Terminal is certified under ISO-9001:2000, ensuring top-quality standards for your applications.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the Wafer Terminal Housing Unit is available in versatile packaging options including Reel, Tube, Tray, and Polybag to suit your logistics needs.

The product features a voltage rating of 250V and utilizes a reliable Screw Terminal type for secure connections. Choose from multiple configurations such as Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows to match your design requirements.

Available in White, Black, and Grey colors, the Housing Wafer Terminal Connector delivers excellent performance with a maximum resistance of 30MΩ after environmental testing. This ensures durability and stability in various conditions.

Our supply ability reaches up to 1,000,000PCS, with a prompt delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience.

Trust the LP Wafer Terminal Housing Unit for efficient and reliable connectivity solutions in your electronic assemblies.
