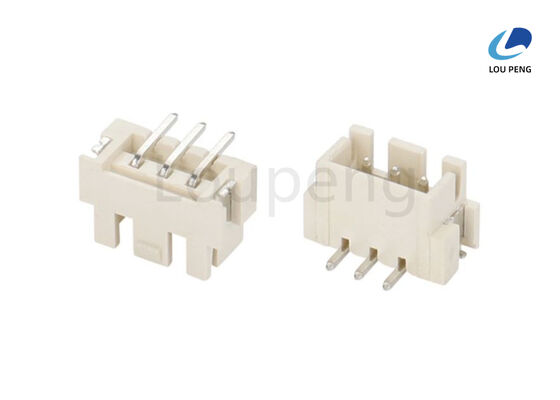

Phosphor Bronze Housing Wafer Terminal Copper Alloy Contact Material UL Certified Electrical Connector for Industrial Equipment

Product Description:

The Housing Wafer Terminal is a high-quality Wafer Terminal Housing Component designed to meet the rigorous demands of modern electronic and electrical applications. This Connector Housing Wafer Terminal offers exceptional performance, reliability, and durability, making it an ideal choice for a wide range of industries including telecommunications, automotive, consumer electronics, and industrial machinery. With its robust construction and versatile design, the Housing Wafer Terminal ensures secure and stable connections that are essential for efficient signal transmission and power distribution.

One of the standout features of this Wafer Terminal Housing Assembly is its impressive insulation resistance of 100 MΩ minimum. This high level of insulation resistance guarantees excellent electrical isolation between terminals, reducing the risk of short circuits and enhancing the overall safety and reliability of the system. This characteristic is particularly important in applications where electrical interference and leakage currents must be minimized to maintain optimal performance.

The insulator material used in the Housing Wafer Terminal is PA46, a high-performance polyamide known for its superior mechanical strength, thermal stability, and chemical resistance. This material is UL94V-0 rated, ensuring that the connector housing meets strict flammability standards and provides excellent protection against fire hazards. Furthermore, the PA46 insulator complies with RoHS regulations, making it an environmentally friendly choice that supports sustainable manufacturing practices.

The contact material employed in this Connector Housing Wafer Terminal is a premium copper alloy. Copper alloy contacts are renowned for their excellent electrical conductivity, corrosion resistance, and mechanical durability. These attributes enable the Housing Wafer Terminal to maintain reliable electrical connections over extended periods, even in harsh environmental conditions. The copper alloy contacts also contribute to low contact resistance, ensuring efficient signal transmission and reducing power loss.

This Wafer Terminal Housing Component features a screw terminal type, which provides a secure and robust mechanical connection for wiring. Screw terminals are widely appreciated for their ease of installation and maintenance, as well as their strong retention force that prevents accidental disconnections. The screw terminal design also allows for flexible wiring options, accommodating various wire sizes and types without compromising connection integrity.

The Housing Wafer Terminal is available in multiple pitch options, ranging from 0.80mm to 5.08mm, including 0.80mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm, 2.50mm, 2.54mm, 3.00mm, 3.96mm, 4.20mm, and 5.08mm. This wide selection of pitch sizes makes the Wafer Terminal Housing Assembly highly adaptable to different design requirements and space constraints. Whether the application demands a compact configuration or a larger, more robust connection, this product can be tailored to fit the specific needs of the project.

In summary, the Housing Wafer Terminal is an exceptional Connector Housing Wafer Terminal that combines high insulation resistance, superior insulator material, reliable copper alloy contacts, and versatile screw terminal connections. Its broad range of pitch options further enhances its flexibility, making it a preferred choice for engineers and designers seeking dependable, high-performance wafer terminal housing solutions. The Wafer Terminal Housing Assembly not only ensures electrical safety and efficiency but also supports compliance with environmental standards, reflecting a commitment to quality and sustainability in electronic component design.

Features:

• Product Name: Housing Wafer Terminal
• Application: Electrical Housing For Wafer Terminals
• Insulator Resistance: 500 Megohms Min
• Terminal Type: Screw Terminal
• Current Rating: 1A AC / DC
• Withstanding Voltage: 500V AC/minute
• Designed as a Wafer Terminal Housing Assembly for secure connections
• Functions effectively as a Wafer Terminal Housing Unit
• Reliable Electrical Housing Wafer Terminal ensuring optimal insulation and durability

Technical Parameters:

Applications:

The LP brand Housing Wafer Terminal, model number LP-WF036, is a high-quality Plastic Housing Wafer Terminal designed and manufactured in China. Certified under ISO-9001:2000, this product ensures reliability and superior performance in various electrical and electronic applications. With a voltage rating of 250V and a withstanding voltage of 500V AC per minute, the LP-WF036 is ideal for use in environments requiring stable electrical connections and high insulation standards.

The Housing Wafer Terminal is crafted from durable phosphor bronze and brass materials, providing excellent conductivity and mechanical strength. Its insulating material is made from high-temperature plastic compliant with UL94V-0 standards, ensuring safety and resistance to heat in demanding conditions. Available in white, black, and grey colors, this product offers versatility in design and application.

The Plastic Housing Wafer Terminal is commonly applied in the assembly of wafer terminal housing assemblies, making it a critical component in electronic device manufacturing, automotive electronics, and industrial automation systems. The housing shell for wafer terminal serves to protect and insulate the internal terminals, preventing short circuits and enhancing the longevity of the electrical connections.

Typical application scenarios for the LP-WF036 include printed circuit board (PCB) connectors, telecommunications equipment, consumer electronics, and control panels. Its compact design and robust construction make it suitable for use in both high-volume production lines and custom electronic solutions. The product is packaged in reels, tubes, trays, or polybags, facilitating easy integration into automated assembly processes.

With a minimum order quantity of 1000PCS and a supply ability of up to 1,000,000PCS, the LP Housing Wafer Terminal is ideal for manufacturers seeking large-scale procurement combined with reliable delivery. The delivery time ranges between 7 to 10 days, and flexible payment terms such as T/T, Western Union, and L/C are available to accommodate diverse customer needs.

In summary, the LP-WF036 Plastic Housing Wafer Terminal is perfectly suited for applications requiring dependable electrical terminal housings, such as wafer terminal housing assemblies and housing shells for wafer terminals. Its high-quality materials, safety certifications, and customizable packaging solutions make it an excellent choice for modern electronic and electrical manufacturing industries.

Customization:

Introducing the LP brand Housing Wafer Terminal, model number LP-WF036, a high-quality Connector Housing Wafer Terminal designed and manufactured in China. This Housing Shell for Wafer Terminal meets the ISO-9001:2000 certification standards, ensuring reliable performance and durability.

Our Housing for Wafer Terminal features a screw terminal type with a voltage rating of 250V and a current rating of 1A AC/DC, making it suitable for various electrical applications. After environmental testing, it maintains an insulation resistance of 30MΩ max, guaranteeing safety and stability in operation.

We offer flexible packaging options including reel, tube, tray, and polybag to meet your specific needs. With a minimum order quantity of 1000PCS, competitive pricing at 0.0001 per unit, and a supply ability of up to 1,000,000PCS, we can efficiently support your production demands.

Our delivery time ranges from 7 to 10 days, and we accept multiple payment terms such as T/T, Western Union, and L/C for your convenience. Choose LP’s Housing Wafer Terminal for a dependable and customizable housing solution tailored to your wafer terminal applications.

Support and Services:

Our Housing Wafer Terminal product is designed to provide reliable and efficient electrical connections in a compact form factor. For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and maintenance recommendations to ensure optimal performance.

We provide detailed datasheets and application notes to help you understand the specifications and integration methods for the Housing Wafer Terminal. Our support team is equipped to address any technical inquiries and provide solutions tailored to your application requirements.

Installation services are available to help with proper mounting and wiring techniques, ensuring secure and durable connections. Additionally, we offer repair and replacement services under warranty to maintain the longevity of your Housing Wafer Terminal installations.

For ongoing service and support, we recommend regular inspection and cleaning of the terminals to prevent corrosion and ensure consistent electrical conductivity. Our technical documentation includes best practices for handling and storage to avoid damage during transportation and installation.

We are committed to delivering high-quality support and services to maximize the performance and reliability of your Housing Wafer Terminal product.

Packing and Shipping:

The Housing Wafer Terminal product is carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static foam inserts to prevent any damage from shocks or vibrations. The packaging box is made of durable, eco-friendly cardboard with clear labeling for easy identification.

For shipping, the packages are sealed with tamper-evident tape and labeled with appropriate handling instructions. Multiple units are palletized and shrink-wrapped to maintain stability and prevent movement during transportation. We use reliable courier services to guarantee timely delivery and provide tracking information for every shipment.

Special care is taken to comply with international shipping regulations and standards, ensuring the product arrives safely and in perfect condition to our customers worldwide.
