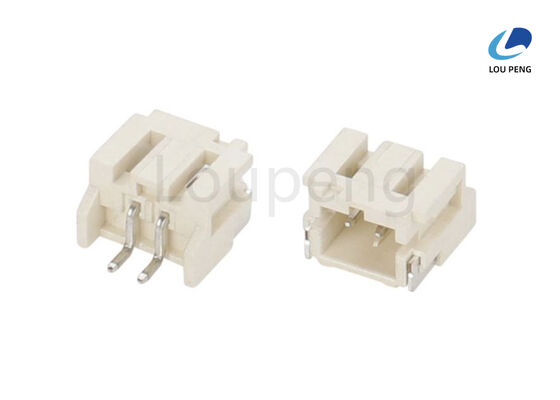

After environmental testing 30MΩ Max Plastic Housing Wafer Terminal with Insulator Resistance 500 Megohms Mi Ensuring Circuit Board Connections

Product Description:

The Housing Wafer Terminal is a highly reliable and durable component designed to meet the demanding requirements of various electrical and electronic applications. This product is specifically crafted to serve as a Wafer Terminal Housing Module, providing an essential protective enclosure for wafer terminal connectors. Engineered with precision, the Housing Wafer Terminal Connector ensures secure and stable connections, enhancing the overall performance and safety of electrical systems.

One of the standout features of this Housing for Wafer Terminal is its ability to operate efficiently within a wide temperature range, from -40°C to 85°C. This broad operating temperature range makes it suitable for use in harsh environments and extreme conditions, ensuring consistent performance whether in cold outdoor settings or elevated temperature indoor applications. The resilience to temperature fluctuations guarantees that the housing maintains its structural integrity and insulation properties, which is critical for long-term reliability.

Constructed from high temperature plastic with a UL94V-0 rating, the insulating material used in the Housing Wafer Terminal offers excellent fire retardant characteristics. This high temperature plastic not only provides superior insulation but also enhances the product’s durability against thermal stress and mechanical wear. The UL94V-0 certification underscores the housing's compliance with stringent safety standards, making it an ideal choice for applications where fire safety and material robustness are paramount.

In addition to its thermal and mechanical advantages, this Housing Wafer Terminal Module is fully RoHS compliant, ensuring that it is free from hazardous substances such as lead, mercury, and cadmium. This compliance aligns with global environmental regulations and promotes safer, more sustainable manufacturing practices. Furthermore, the product is UL certified, which confirms that it has undergone rigorous testing and meets the highest standards for electrical safety and performance.

The Housing Wafer Terminal Connector supports a current rating of 1A for both AC and DC applications. This current rating makes it suitable for a wide range of low-power electrical circuits, providing reliable conduction and minimizing the risk of overheating or electrical failures. Whether used in consumer electronics, automotive systems, or industrial control equipment, the housing ensures consistent electrical connectivity and protection.

Available in three versatile color options—white, black, and grey—the Housing for Wafer Terminal can be easily integrated into different design schemes and environments. The color variety allows for better visual identification and customization according to specific project requirements or aesthetic preferences. This flexibility enhances the usability of the product across various industries and applications.

In summary, the Housing Wafer Terminal is an essential component designed to protect and insulate wafer terminal connectors effectively. Its robust construction using high temperature plastic with UL94V-0 rating, broad operating temperature range from -40°C to 85°C, and compliance with RoHS and UL standards make it an outstanding choice for ensuring safety, durability, and environmental responsibility. The product’s current rating of 1A AC/DC and availability in white, black, and grey colors further contribute to its adaptability and reliable performance. Whether you require a Wafer Terminal Housing Module for industrial use or a Housing Wafer Terminal Connector for advanced electronic devices, this product delivers exceptional quality and dependable functionality.

Features:

• Product Name: Housing Wafer Terminal
• Wafer Terminal Housing Module available with 2 to 64 pins
• Electrical Housing Wafer Terminal featuring Gold or Tin Plated 100U contacts (Standard)
• Color options: White, Black, and Grey
• Insulation resistance of 100 MΩ minimum for reliable performance
• Durable Wafer Terminal Housing Assembly designed for long-lasting use

Technical Parameters:

Applications:

The LP-WF035 Plastic Housing Wafer Terminal, manufactured by the reputable brand LP in China, is designed to meet the rigorous demands of modern electronic assembly and manufacturing environments. Certified under ISO-9001:2000, this product ensures high quality and reliability, making it an excellent choice for various industrial applications. The Housing Shell for Wafer Terminal is crafted from premium materials such as phosphor bronze and brass, with a polished finish that guarantees durability and optimal performance. Its contact material, copper alloy, further enhances conductivity and corrosion resistance, essential for maintaining stable electrical connections.

This Housing for Wafer Terminal is highly versatile and widely used in occasions where compact, reliable, and efficient electrical connections are required. It is ideal for use in telecommunications equipment, consumer electronics, automotive electrical systems, and industrial control devices. The wafer terminal housing protects sensitive contacts within electrical connectors, ensuring secure and stable connections even in harsh environments. Its insulator resistance of 500 megohms minimum provides excellent electrical insulation, reducing the risk of short circuits and enhancing overall system safety.

Available in three classic colors—white, black, and grey—the LP-WF035 Plastic Housing Wafer Terminal can be seamlessly integrated into a variety of design aesthetics and functional requirements. It is supplied in convenient packaging options including reels, tubes, trays, and polybags, facilitating easy handling, storage, and automated assembly processes. With a supply capacity of up to 1,000,000 pieces and a minimum order quantity of 1000PCS, this product is suitable for large scale production runs as well as smaller projects.

Customers can expect prompt delivery within 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C, ensuring smooth procurement processes. The LP brand's commitment to quality and efficiency makes this Housing Shell for Wafer Terminal a dependable choice for engineers and manufacturers looking to enhance the performance and reliability of their wafer terminal assemblies. With an extremely competitive price point of 0.0001 per piece, it offers exceptional value without compromising on quality.

In summary, the LP-WF035 Housing for Wafer Terminal is a robust, high-performance component tailored for electronic applications requiring secure, insulated, and durable wafer terminal housings. Its superior materials, quality certifications, and flexible supply options make it indispensable in scenarios ranging from telecommunications infrastructure to automotive wiring harnesses and consumer electronics assembly lines.

Customization:

Introducing the LP Brand Housing Wafer Terminal, model number LP-WF035, a high-quality Electrical Housing Wafer Terminal designed and manufactured in China. Certified with ISO-9001:2000, this Wafer Terminal Housing Module ensures reliability and superior performance for various electrical applications.

Our Housing Wafer Terminal Connector features excellent insulation resistance of 100 MΩ minimum and uses premium copper alloy for contact material, guaranteeing efficient conductivity and durability. The insulator material is PA46 (UL94V-0) compliant with RoHS standards, providing enhanced safety and environmental compliance.

The product is available in multiple types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, catering to diverse design requirements. It operates at a voltage rating of 50V AC/DC, making it suitable for a wide range of electronic devices.

We offer flexible packaging options such as Reel, Tube, Tray, and Polybag to meet your specific needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, we ensure cost-effective solutions for your projects.

Our supply ability reaches up to 1,000,000PCS, with a delivery time of 7 to 10 days. Payment terms accepted include T/T, Western Union, and L/C, providing convenience and security in transactions.

Choose the LP Housing Wafer Terminal Connector for your next project and benefit from a trusted Wafer Terminal Housing Module that combines quality, versatility, and affordability.

Support and Services:

Our Housing Wafer Terminal product is designed to provide reliable and efficient connections in various electronic assemblies. For technical support, our team is available to assist with product specifications, installation guidance, and troubleshooting procedures to ensure optimal performance.

We offer comprehensive services including customization options, compatibility assessments, and lifecycle management to meet your specific project requirements. Our experts can provide detailed documentation and application notes to help integrate the Housing Wafer Terminal seamlessly into your systems.

In case of any issues or inquiries, please refer to our online resources such as FAQs, user manuals, and firmware updates. We are committed to delivering prompt and effective solutions to maximize your product experience and satisfaction.

Packing and Shipping:

Product Packaging:

The Housing Wafer Terminal is carefully packaged to ensure maximum protection during transit. Each terminal is individually wrapped in anti-static material to prevent electrostatic discharge damage. The terminals are then placed in custom-molded foam inserts within sturdy cardboard boxes to avoid any physical damage. Outer packaging includes clear labeling with product details, handling instructions, and barcodes for easy identification and inventory management.

Shipping:

Shipping of the Housing Wafer Terminal is handled with utmost care to maintain product integrity. We use reliable courier services that provide tracking and insurance options. The packages are shipped in climate-controlled environments when necessary to prevent exposure to moisture or extreme temperatures. Delivery times and shipping methods can be customized based on customer requirements, including express and standard options. All shipments include documentation such as packing lists and certificates of conformity as applicable.
