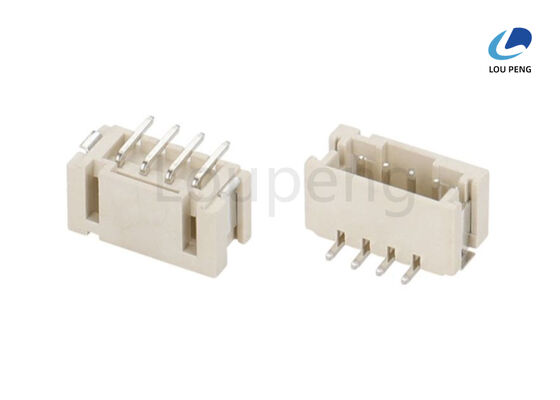

Insulator Resistance 500 Megohms Wafer Terminal Housing Unit Offering Pitch Options from 0.80mm to 5.08mm Designed for Terminal Connections

Product Description:

The Housing Wafer Terminal is a high-quality component designed to provide reliable and efficient electrical connections in various electronic assemblies. This product serves as an essential part of the Housing Shell for Wafer Terminal systems, offering durability, safety, and excellent performance for both industrial and commercial applications.

One of the standout features of this Housing Wafer Terminal is its polished finish. The polished surface not only enhances the aesthetic appeal of the terminal housing but also contributes to its resistance against corrosion and wear over time. This finish ensures that the terminal maintains its integrity and appearance even in demanding environments, making it a dependable choice for long-term use.

The terminal type incorporated in this product is the screw terminal, which is widely recognized for its secure and stable connections. Screw terminals provide a simple yet effective method for fastening wires, allowing for easy installation and maintenance. This feature is particularly beneficial in applications where frequent disassembly and reassembly may be required, as it ensures a solid electrical connection without the risk of loosening.

Constructed from high-quality materials, the Housing Wafer Terminal features phosphor bronze and brass components. These materials are chosen for their excellent electrical conductivity, mechanical strength, and resistance to corrosion. Phosphor bronze offers good spring properties, which help maintain consistent contact pressure within the terminal, while brass contributes to the overall durability and robustness of the assembly. Together, these materials ensure that the Housing Shell for Wafer Terminal delivers optimal performance and reliability.

The current rating of this terminal is 1A for both AC and DC applications. This rating makes it suitable for a wide range of low-power electrical circuits, including signal transmission and control circuits. Whether used in consumer electronics, automotive systems, or industrial machinery, the terminal can handle the electrical load efficiently without compromising safety or performance.

Another critical aspect of this product is its insulator material. The Housing Wafer Terminal utilizes PA46, a high-performance polyamide known for its excellent mechanical and thermal properties. Certified with UL94V-0 flame retardant rating, the insulator material ensures that the terminal housing assembly meets stringent safety standards, providing resistance to fire and high temperatures. Additionally, the use of PA46 complies with RoHS regulations, making this product environmentally friendly and suitable for use in applications requiring adherence to modern safety and environmental guidelines.

The Housing Wafer Terminal is an integral component in the Wafer Terminal Housing Assembly, providing a secure and well-insulated housing shell that protects the internal connections. Its design and material selection contribute to minimizing electrical resistance and preventing short circuits, thereby enhancing the overall reliability of the electronic system it is part of. The assembly process is straightforward, and the terminal’s compatibility with standard wafer terminal sizes makes it a versatile solution for various design requirements.

In summary, the Housing Wafer Terminal is a polished, screw terminal-based component crafted from phosphor bronze and brass, rated for 1A current in both AC and DC applications. Its PA46 insulator material offers superior flame retardant properties and complies with RoHS standards, ensuring safety and environmental responsibility. As a vital element of the Housing Shell for Wafer Terminal and the Wafer Terminal Housing Assembly, this product provides a dependable, high-performance solution for secure electrical connections in a broad spectrum of electronic applications.

Features:

• Housing Shell for Wafer Terminal with voltage rating of 250V
• Connector Housing Wafer Terminal made from high-quality PA46 (UL94V-0) insulator material, RoHS compliant
• Housing for Wafer Terminal with excellent durability, featuring 30MΩ max insulation resistance after environmental testing
• Available in configurations ranging from 2 to 64 pins
• Constructed using premium Phosphor Bronze and Brass materials for reliable performance

Technical Parameters:

Applications:

The LP brand Connector Housing Wafer Terminal, model number LP-WF033, is a high-quality product originating from China, designed to meet the rigorous demands of modern electrical and electronic applications. Certified under ISO-9001:2000, this Electrical Housing Wafer Terminal ensures reliability and consistency in performance, making it an ideal choice for various industrial and commercial uses. With a minimum order quantity of 1000PCS and an attractive price of 0.0001 per piece, it offers excellent value for large-scale manufacturing and assembly operations.

The LP-WF033 wafer terminal housing assembly is widely used in scenarios where secure and efficient electrical connections are critical. Its screw terminal type provides a robust and stable connection, suitable for environments that require frequent maintenance or reconfiguration. The terminal’s contact material, made from premium copper alloy, guarantees excellent conductivity and durability, while the housing constructed from PA46 (UL94V-0) material ensures high insulation resistance of at least 100 MΩ and compliance with RoHS standards. This makes it ideal for use in telecommunications, automotive electronics, industrial machinery, and consumer electronics.

Packaging options for the LP-WF033 include reel, tube, tray, and polybag, catering to different handling and assembly preferences. With a supply ability of up to 1,000,000PCS and a delivery time frame of 7 to 10 days, this product supports both small and large-scale production needs efficiently. Payment terms such as T/T, Western Union, and L/C offer flexibility to customers worldwide.

In practical application, the Electrical Housing Wafer Terminal is essential in creating reliable connector systems in circuit boards, control panels, and wiring harnesses. Its phosphor bronze and brass materials provide mechanical strength and resistance to corrosion, ensuring long-term performance even in harsh environments. Whether used in factory automation, renewable energy systems, or household appliances, the LP Connector Housing Wafer Terminal assembly enhances electrical integrity and system safety.

Overall, the LP-WF033 model stands out as a dependable and cost-effective solution for manufacturers and engineers seeking high-performance wafer terminal housing assemblies. Its combination of quality materials, certification, and versatile packaging makes it a preferred choice for a broad range of electrical and electronic applications across various industries.

Customization:

Introducing the LP brand Housing Shell for Wafer Terminal, model number LP-WF033, proudly made in China. This product is certified with ISO-9001:2000, ensuring top quality and reliability for your applications.

Our Housing Shell for Wafer Terminal is available with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per piece. We offer flexible packaging options including Reel, Tube, Tray, and Polybag to suit your logistics needs.

With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, we guarantee prompt and efficient service. Payment terms include T/T, Western Union, and L/C for your convenience.

This Housing Shell for Wafer Terminal supports multiple types: Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations. It features a maximum contact resistance of 20MΩ and can withstand voltage up to 500V AC per minute.

Compliant with RoHS and UL Certified standards, the product operates reliably in temperature ranges from -40°C to 85°C, making it suitable for various industrial environments.
