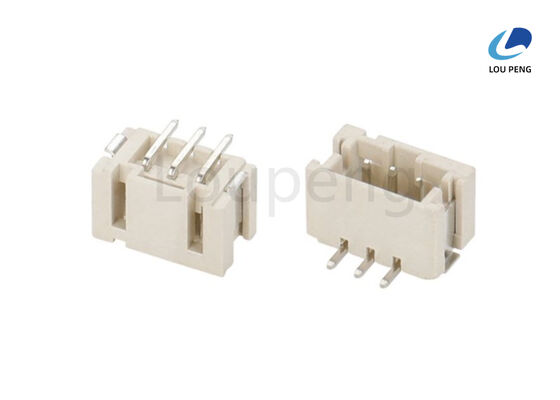

1A AC DC Current Rating Housing Wafer Terminal Panel Mount Designed for Secure Electrical Connections in Control Panels

Product Description:

The Plastic Housing Wafer Terminal is a versatile and reliable component designed to provide secure electrical connections in a wide range of electronic applications. Engineered with precision and manufactured from high-quality materials, this Housing Wafer Terminal Connector is ideal for use in various industries, including telecommunications, automotive, industrial equipment, and consumer electronics. The product is specifically crafted to ensure optimal performance, durability, and ease of installation, making it a preferred choice for engineers and designers alike.

One of the key features of this Wafer Terminal Housing Unit is its exceptionally low contact resistance, rated at a maximum of 20 milliohms (20MΩ Max). This low resistance ensures efficient electrical conductivity, minimizing power loss and improving the overall reliability of the connection. Such performance is critical in applications where stable and consistent electrical signals are necessary to maintain system integrity.

The Plastic Housing Wafer Terminal is constructed from premium materials to guarantee long-lasting performance and resistance to wear and corrosion. The housing itself is made from durable plastic, available in multiple color options including white, black, and grey, allowing for easy identification and aesthetic integration within various assemblies. The choice of plastic also contributes to excellent insulation properties, preventing electrical shorts and enhancing safety.

The contact components of the Housing Wafer Terminal Connector are made from copper alloy, a material well-known for its superior electrical conductivity and mechanical strength. Additionally, the internal contacts utilize phosphor bronze or brass, both of which offer excellent elasticity, corrosion resistance, and durability under repeated mating cycles. This combination of materials ensures that the terminal can withstand demanding environmental conditions while maintaining reliable electrical connections over time.

This Wafer Terminal Housing Unit is available in multiple configurations to accommodate diverse design requirements. Customers can choose from vertical, right-angle, surface-mount technology (SMT), single row, double row, and three-row types. This flexibility allows for seamless integration into various circuit board layouts, optimizing space and improving assembly efficiency. Whether the application calls for a compact vertical connection or a more complex multi-row arrangement, this product line provides the necessary options to meet those needs.

The versatility of the Plastic Housing Wafer Terminal extends beyond its physical configurations. The availability of different colors—white, black, and grey—enables color-coded wiring schemes that simplify troubleshooting and maintenance. This feature is particularly valuable in complex systems where quick identification of connection points reduces downtime and enhances overall system reliability.

In summary, the Housing Wafer Terminal Connector offers a combination of low contact resistance, high-quality materials, and adaptable configurations that make it an excellent choice for electronic interconnection needs. Its copper alloy contacts and phosphor bronze/brass components ensure robust electrical performance, while the plastic housing provides essential insulation and protection. With options for vertical, right-angle, and SMT mounting, as well as single, double, or three-row arrangements, this Wafer Terminal Housing Unit can be tailored to fit a wide range of applications.

For engineers and manufacturers seeking a dependable, efficient, and customizable terminal solution, the Plastic Housing Wafer Terminal stands out as a superior product. Its blend of performance, material quality, and design flexibility supports the development of advanced electronic devices that demand reliable and long-lasting connections. Choosing this Housing Wafer Terminal Connector means investing in a product that delivers consistent electrical performance and contributes to the overall success of your electronic projects.

Features:

• Product Name: Housing Wafer Terminal
• Insulating material made of High Temperature Plastic (UL94V-0)
• Voltage rating of 50V AC / DC
• Available with 2 to 64 pins (Number of contacts)
• Withstanding voltage of 500V AC per minute
• Constructed using durable Phosphor Bronze and Brass materials
• Designed as a Wafer Terminal Housing Component for reliable connectivity
• Functions as a Housing Wafer Terminal Connector for various electrical applications
• Serves as a Housing for Wafer Terminal ensuring safety and performance

Technical Parameters:

This Wafer Terminal Housing Module serves as an essential Housing Shell for Wafer Terminal applications, providing reliable and durable Housing for Wafer Terminal solutions.

Applications:

The LP Housing Wafer Terminal, model number LP-WF032, is a high-quality electrical component designed and manufactured in China with ISO-9001:2000 certification, ensuring reliable performance and superior standards. This product is an essential part of the Housing Shell for Wafer Terminal applications, offering excellent insulation and durability thanks to its high-temperature plastic material rated UL94V-0. With a voltage rating of 50V AC/DC, it is well-suited for various electrical housing needs specifically tailored for wafer terminals.

In numerous industrial and commercial settings, the LP Housing for Wafer Terminal serves as a critical component that protects and secures wafer terminal connections. Its panel mount design allows for easy and secure installation within electrical panels, control boxes, and other housing assemblies. This makes it an ideal choice for manufacturing environments, electrical control systems, and automation equipment where reliable electrical connections are paramount.

The Wafer Terminal Housing Component is highly versatile and widely used in applications requiring robust insulation and protection against environmental factors such as dust, moisture, and mechanical stress. It is commonly employed in electrical distribution panels, communication devices, instrumentation, and consumer electronics to ensure safety and maintain system integrity. The product’s packaging options – including reel, tube, tray, and polybag – provide flexibility for different assembly line requirements and handling preferences.

With a supply ability of up to 1,000,000 pieces and a minimum order quantity of 1000PCS, the LP-WF032 Housing Wafer Terminal is suitable for large-scale production and OEM projects. The competitive pricing of 0.0001 per piece, along with efficient delivery times of 7 to 10 days, makes it an economical and timely solution for manufacturers and distributors. Payment terms such as T/T, Western Union, and L/C further facilitate smooth and secure transactions.

In summary, the LP Housing Shell for Wafer Terminal is an indispensable component in electrical housing for wafer terminals, offering reliable insulation, ease of mounting, and a wide range of application scenarios. Whether used in industrial automation, electrical cabinets, or communication equipment, this housing component ensures that wafer terminals are securely housed and protected, thereby enhancing overall system performance and safety.

Customization:

LP brand offers high-quality Housing for Wafer Terminal, model number LP-WF032, manufactured in China with ISO-9001:2000 certification. Our Connector Housing Wafer Terminal is designed to meet rigorous standards including RoHS and UL certifications, ensuring reliable performance and safety.

We provide customizable Housing for Wafer Terminal solutions with a pitch range of 0.80mm to 5.08mm, including 0.80mm, 1.00mm, 1.25mm, 1.50mm, 2.00mm, 2.50mm, 2.54mm, 3.00mm, 3.96mm, 4.20mm, and 5.08mm options to suit various application needs. The polished finish enhances durability and aesthetic appeal.

Our Housing for Wafer Terminal supports a withstanding voltage of 500V AC per minute and an insulation resistance of at least 100 MΩ, guaranteeing excellent electrical insulation and safety in operation.

Packaging options include Reel, Tube, Tray, and Polybag to accommodate different handling and shipping requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, we ensure cost-effective solutions without compromising quality.

We maintain a strong supply ability of up to 1,000,000PCS and a delivery time of 7 to 10 days, backed by flexible payment terms including T/T, Western Union, and L/C. Choose LP’s Connector Housing Wafer Terminal for reliable, customizable, and certified housing solutions tailored to your specific needs.
