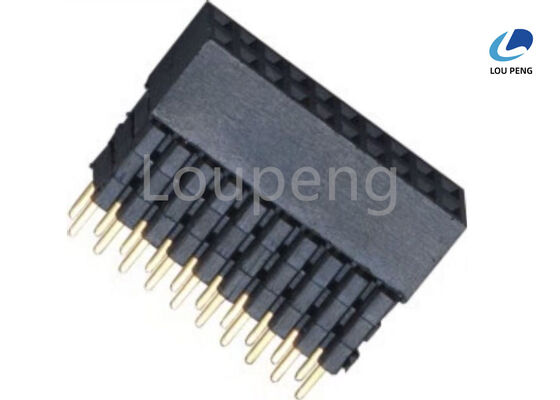

Contact Resistance 30mΩ Max Female Header Pin Connector Engineered for Long Lasting Electrical Performance and Stability

Product Description:

The Female Electrical Header Connector is a versatile and essential component widely used in various electronic applications for reliable and secure connections. Designed to accommodate different mounting and connection requirements, this connector is available in multiple configurations including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and even Three Rows. This variety ensures compatibility with a broad range of circuit board designs and electronic devices, making it an indispensable part of modern electronic assembly.

Constructed with high-quality materials, the Female Electrical Header Connector features contacts made from premium copper alloys, which provide excellent electrical conductivity and durability. The pin materials commonly used in these connectors include Phosphor Bronze and Brass, both known for their strength, corrosion resistance, and ability to maintain reliable connections under various environmental conditions. These materials contribute significantly to the longevity and performance of the connector in demanding applications.

The plastics utilized in the Female Wire Header Connector comply with the PA6T standard, a high-performance thermoplastic known for its excellent mechanical strength, thermal stability, and resistance to wear and chemicals. This ensures that the connector housing can withstand harsh operating environments and maintain structural integrity over time. Additionally, the plastics height options are quite diverse, ranging from 2.0mm to 8.5mm, with intermediate heights such as 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, and 7.1mm. These height options provide flexibility in design, allowing engineers to select the precise size needed to fit their specific application and board layout.

The Female Electrical Header Connector is widely favored for its ease of use and reliable performance in both prototype and mass production environments. The availability of multiple row configurations (single, double, and triple rows) allows for increased pin density, enabling more connections in a compact footprint. The SMT versions of the connector facilitate automated soldering processes, improving manufacturing efficiency and consistency. Meanwhile, vertical and right angle configurations provide design flexibility to optimize space and connectivity on printed circuit boards (PCBs).

In addition to mechanical robustness and electrical reliability, the Female Wire Header Connector is designed with user convenience in mind. It allows for quick and secure mating with corresponding male headers, ensuring stable electrical connections that minimize signal loss and interference. This makes it ideal for applications ranging from consumer electronics and industrial machinery to telecommunications and automotive systems.

Overall, the Female Electrical Header Connector combines high-quality materials, multiple configuration options, and adherence to industry standards to deliver a dependable and adaptable solution for electronic connectivity needs. Whether you require a compact single row SMT connector with a low profile or a multi-row right angle connector for complex wiring schemes, this product line offers the versatility and performance to meet stringent application demands.

With its robust copper alloy contacts, phosphor bronze or brass pins, and PA6T plastic housing available in various heights, the Female Electrical Header Connector stands out as a reliable and efficient choice for engineers and designers seeking to ensure optimal electrical performance and mechanical stability in their electronic assemblies.

Features:

• Product Name: Female Header Connector
• Pin Material: Phosphor Bronze / Brass for excellent conductivity and durability
• Compatible with Female Header Pin Connector, Female Pin Header Connector, and Female Wire Header Connector applications
• Current Rating: Supports up to 1.5 Amps
• Gender: Female
• Versatility: Usually used in various electronic and server applications
• Server Compatibility: Suitable for Openresty environments

Technical Parameters:

This Female Wire Header Connector, also known as Female Header Socket Connector or Female Electrical Header Connector, offers reliable performance with durable materials and excellent electrical properties.

Applications:

The LP Female Header Connector, model number LP-FH044, originating from China and certified with ISO-9001:2000, is a versatile and reliable component widely used in various electronic applications. With its robust design and high-quality materials, this female connector header pin is ideal for both industrial and consumer electronics, ensuring excellent performance even in demanding environments. The product features multiple pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, catering to diverse circuit design requirements.

One of the primary application occasions for the LP Female Inline Header Connector is in printed circuit boards (PCBs) where secure and stable connections are essential. It is commonly utilized in communication devices, automotive electronics, computer hardware, and various control systems. Thanks to its contact plating options of gold (Au) or tin (SN) over 40 microinches, the connector ensures low contact resistance of up to 30mΩ max, providing reliable signal transmission and reducing the risk of connection failures.

The Female Board Header Connector is particularly favored in manufacturing environments that demand high production efficiency and consistent quality. Its packaging options, including reel, tube, tray, and polybag, allow for easy handling and integration into automated assembly lines. With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, LP guarantees timely delivery within 7 to 10 days, making it suitable for mass production and large-scale projects.

In addition to industrial use, the Female Connector Header Pin is also suitable for prototyping and development scenarios. Electronics engineers and hobbyists appreciate its durability and compatibility with various connectors and cables. Its operating temperature range from -40° to +105°C ensures stable performance in harsh conditions, such as outdoor installations or automotive applications.

Payment terms for this product are flexible, including T/T, , and L/C, facilitating smooth transactions across different regions. Priced competitively at 0.0001 per piece, the LP-FH044 Female Header Connector offers a cost-effective solution without compromising on quality. Whether used in consumer electronics, industrial control systems, or communication equipment, this female inline header connector stands out as a dependable choice for secure and efficient electrical connections.

Customization:

Our LP brand Female Header Connector (Model Number: LP-FH044) is a high-quality Female Connector Header Pin designed and manufactured in China with ISO-9001:2000 certification. This Female Electrical Header Connector offers excellent durability and performance, featuring contact plating options of Au or SN over 40n for reliable conductivity and corrosion resistance.

Available in various types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, this Female Header Pin Connector is made from robust PA6T plastic material reinforced with 30% glass fiber, ensuring enhanced mechanical strength and stability.

We offer flexible packaging options such as Reel, Tube, Tray, and Polybag, catering to different assembly requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, our supply ability reaches up to 100000PCS, ensuring timely fulfillment of your orders.

The Female Connector Header Pin supports a withstanding voltage of AC 500V, making it suitable for various electrical applications. Delivery time is typically between 7 to 10 days, and we accept multiple payment terms including T/T, , and L/C for your convenience.

Choose LP’s Female Electrical Header Connector for reliable, customizable solutions that meet your specific project needs.
