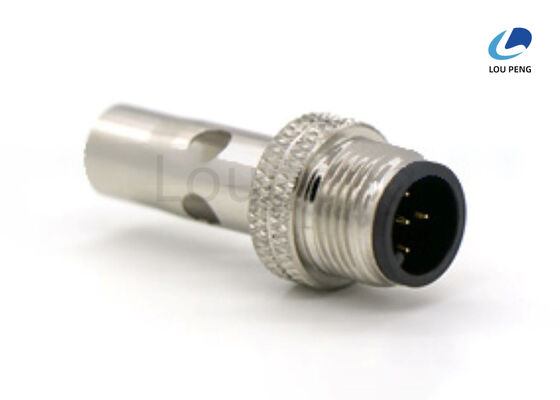

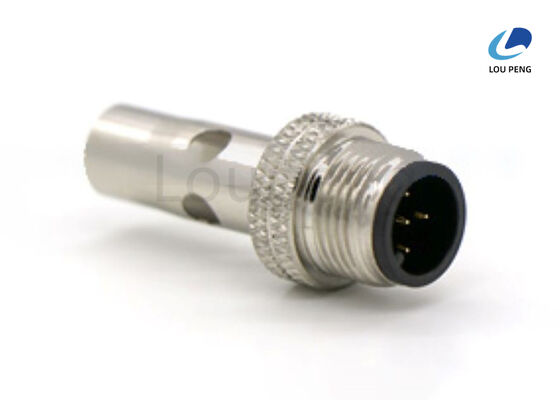

Gold Plated Circular Waterproof Connector 8 Pin Male Solder Cup Providing Electrical Connections in Moisture Prone Areas

Product Description:

The Circular Connector, featuring an 8-pin male solder cup design, is an essential component in various electrical and industrial applications. Engineered to provide reliable and secure connections, this connector is widely recognized for its robust construction and versatile functionality. As an Industrial Connector, it is specifically designed to meet the rigorous demands of harsh environments and challenging conditions, making it an ideal choice for professionals seeking durability and performance.

One of the standout features of this Circular Connector is its 8-pin male configuration, which allows for multiple signal or power connections within a compact footprint. The solder cup termination method ensures a solid and dependable electrical connection by allowing direct soldering of wires to the connector pins. This method is particularly advantageous in applications where vibration or mechanical stress might otherwise compromise the integrity of the connection.

Additionally, this connector incorporates a break-away locking type mechanism. This unique locking system provides secure mating between connectors, preventing accidental disconnections while still allowing for easy and quick disengagement when required. The break-away lock enhances safety and reliability, especially in industrial settings where equipment may need to be frequently connected and disconnected without damaging the connector or the cable.

Designed to operate effectively in a wide range of temperatures, the Circular Connector supports an operating temperature range from -25℃ to +85℃. This broad temperature tolerance ensures the connector maintains optimal performance and stability in both cold and warm environments, making it suitable for outdoor installations, industrial machinery, and other temperature-sensitive applications.

The connector is also compatible with cables having an outer diameter (OD) ranging from 2.6mm to 7.5mm. This flexibility allows users to pair the connector with a variety of cable sizes, providing versatility across different wiring setups and applications. Whether you are dealing with thin signal cables or thicker power cables, this connector accommodates them with ease.

Constructed using high-quality copper alloy for the contacts, the Circular Connector guarantees excellent electrical conductivity and resistance to corrosion. Copper alloy contacts are known for their superior performance in conducting electrical current, which minimizes signal loss and ensures consistent connectivity. Furthermore, the durability of copper alloy contributes to the long service life of the connector, even in demanding industrial environments.

As an Electrical Connector, this Circular Connector is suitable for numerous applications including automation systems, control panels, instrumentation, and communication devices. Its robust design and reliable locking mechanism make it a preferred choice for engineers and technicians who require dependable connections under challenging conditions.

Moreover, the Circular Connector shares functional similarities with the Centronics Connector family, known for their secure and efficient electrical connections. While Centronics Connectors are often used in data and printer interfaces, this Circular Connector adapts those principles to industrial and electrical applications, ensuring a strong, stable connection with ease of use and maintenance.

In summary, the 8-pin male solder cup Circular Connector with break-away locking type is a high-performance Industrial Connector designed for durability, versatility, and reliability. Its wide operating temperature range, compatibility with various cable diameters, and copper alloy contacts make it an excellent choice for anyone seeking a dependable Electrical Connector solution. Whether used in industrial automation, instrumentation, or other electrical systems, this connector delivers consistent, high-quality performance that meets the demands of modern engineering applications.

Features:

• Product Name: Circular Connector
• Waterproof Rating: IP67, ensuring reliable protection against water and dust
• Available Types: Whip, Puck, and Panel configurations to suit various applications
• Color: Black finish for a professional and durable appearance
• Length: Customizable to meet specific installation requirements
• Shock Resistance: 980m/s², 6ms, Half Sine Wave, 6 times, providing excellent durability in harsh environments
• Ideal for use as Industrial Circular Connectors in demanding industrial settings
• Functions effectively as a Cable Joint Connector for secure and reliable connections

Technical Parameters:

Applications:

The Loupeng LP-M12017 Circular Connector is an exceptional choice for a wide range of application occasions and scenarios, thanks to its robust design and reliable performance. As a Circular Power Connector, it is ideally suited for use in industrial automation, machinery, and equipment where secure and stable power connections are critical. Its 8-pin male solder cup configuration and panel mount design ensure easy installation and reliable connectivity in environments that demand durability and precision.

In many industrial and commercial settings, Circular Push Pull Connectors like the LP-M12017 play a vital role. Their push-pull locking mechanism allows for quick and secure connection and disconnection, making them perfect for scenarios where frequent maintenance or equipment changes occur. This makes them highly useful in manufacturing lines, robotics, and automated systems where downtime must be minimized, and connectors need to withstand repeated use without degradation.

The LP-M12017 model, manufactured by Loupeng in China and certified under ISO-9001:2000, guarantees high quality and consistency. Its Circular Metal Connectors construction provides excellent mechanical strength and electromagnetic interference resistance, making it suitable for harsh environments with operating temperatures ranging from -25℃ to +85℃. This temperature range ensures reliable performance in outdoor equipment, transportation systems, and military applications where environmental conditions can vary widely.

Besides industrial uses, the LP-M12017 connector is also perfect for medical devices, audiovisual equipment, and communication systems that require compact, dependable, and low-resistance connectors. With a contact resistance of 5 ohms max, it ensures efficient electrical conductivity, which is crucial for sensitive electronic components. The black color finish adds a professional and sleek look, suitable for modern electronic assemblies.

For businesses requiring large quantities, Loupeng offers a supply ability of 100,000 PCS with a minimum order quantity of 1000 PCS, priced competitively at 0.03 USD per unit. Packaging options include tube or tray, catering to different handling and storage preferences. Delivery time is efficient, ranging from 7 to 10 days, and payment terms include T/T and L/C, accommodating various purchasing processes.

In summary, the Loupeng LP-M12017 Circular Connector is designed to meet the demands of diverse application occasions, from industrial automation and machinery to medical and communication equipment, providing a reliable, durable, and cost-effective solution for power and signal transmission needs.

Customization:

The Loupeng LP-M12017 Circular Connector is an Integrated Connector designed specifically for high-performance applications such as Electric Bike Connectors. Manufactured in China and certified with ISO-9001:2000, this product ensures superior quality and reliability. Featuring a break-away locking type and waterproof rating of IP67, it offers excellent durability and protection against harsh environments.

This Circular Connector Cable Assembly uses gold-plated contacts made from copper alloy to guarantee optimal conductivity and corrosion resistance. It withstands shocks up to 980m/s² for 6 milliseconds with a half sine wave repeated 6 times, making it suitable for demanding mechanical conditions.

The minimum order quantity for the LP-M12017 model is 1000PCS, with a competitive price of $0.03 per unit. Packaging options include tube or tray to meet your logistical needs. We offer a supply ability of 100,000PCS, with delivery times ranging from 7 to 10 days. Payment terms accepted are T/T and L/C, ensuring flexible transaction options.
