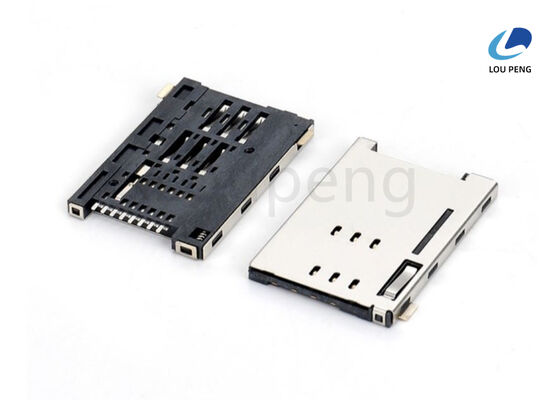

Pitch 0.7mm Mobile SIM Slot Connector Offering 100Miliohms Maximum Contact Resistance Choice for Mobile Communication Devices

Product Description:

The SIM Holder Connector is a highly reliable and durable component designed specifically for modern electronic devices that require secure and efficient SIM card integration. Engineered with precision, this SIM Card Slot Connector is ideal for applications demanding consistent performance and long-lasting durability. One of the standout features of this connector is its Surface Mount Technology (SMT) mounting type, which allows for seamless integration onto printed circuit boards (PCBs). SMT ensures a compact footprint and optimal electrical performance, making it perfect for compact and high-density device designs.

Designed to accommodate various SIM card formats, this SIM Card Holder Connector is particularly compatible with nano SIM cards, which are the smallest standard SIM card size used in most contemporary smartphones and communication devices. The Nano SIM Card Connector provides a secure and stable connection, ensuring that the SIM card remains firmly in place even under rigorous usage conditions. This is crucial for maintaining uninterrupted network connectivity and reliable device operation.

The connector boasts an insertion force ranging between 100 to 200 grams, striking an excellent balance between ease of use and secure retention. This moderate insertion force ensures that users can insert and remove their SIM cards without exerting excessive pressure, reducing wear and tear on both the connector and the SIM card itself. At the same time, the force is sufficient to prevent accidental disconnections or loosening of the SIM card during regular device handling or movement.

Durability is a key attribute of this SIM Card Slot Connector, with an impressive rated mating cycle of up to 5000 insertions. This means the connector can withstand repeated SIM card insertions and removals without compromising its structural integrity or electrical performance. Such high mating cycles are particularly beneficial for devices that require frequent SIM card changes or for testing environments where connectors are repeatedly engaged and disengaged.

To ensure excellent electrical conductivity and corrosion resistance, the contact plating of this SIM Holder Connector is gold-plated. Gold plating is widely recognized for its superior ability to maintain low contact resistance over time, even in harsh environmental conditions. This results in stable signal transmission and minimal risk of connection failures, which are critical for maintaining uninterrupted communication in mobile and IoT devices.

The contacts themselves are made from high-quality copper alloy, combining excellent electrical conductivity with mechanical strength. Copper alloy contacts provide reliable conductivity, ensuring that data and power signals pass through with minimal loss or interference. The combination of copper alloy contacts and gold plating maximizes both performance and longevity, making this SIM Card Holder Connector a premium choice for manufacturers and designers seeking top-tier components.

In summary, this SIM Card Slot Connector is a robust, high-performance solution tailored for modern electronic devices requiring efficient SIM card integration. Its SMT mounting type supports compact and reliable PCB assembly, while the 100-200 grams insertion force offers user-friendly operation without sacrificing card retention. With a remarkable 5000 mating cycles, gold-plated contacts, and copper alloy material, this Nano SIM Card Connector guarantees exceptional durability, conductivity, and resistance to wear. Whether for smartphones, tablets, or other communication devices, this SIM Card Holder Connector delivers consistent, long-term reliability and superior electrical performance, making it an indispensable component in today’s technology landscape.

Features:

• Product Name: SIM Holder Connector
• Operating Temperature Range: -40°C to +105°C
• Durability: Up to 10,000 Mating Cycles
• Mating Cycles: 5000 Insertions
• Mounting Type: Surface Mount Technology (SMT)
• Compatible with SIM Tray Card Connector applications
• Reliable SIM Tray Card Connector for secure SIM card placement
• High-quality SIM Card Socket Connector ensuring stable connectivity

Technical Parameters:

Applications:

The LP brand SIM Holder Connector, model number LP-S024, is a highly reliable and versatile component designed for various applications requiring secure SIM card connections. Manufactured in China and certified with ISO-9001:2000, this connector ensures top-notch quality and durability, making it an ideal choice for electronics manufacturers and device assemblers. With a minimum order quantity of 1000PCS and a competitive price of 0.001 per unit, it offers excellent value for large-scale production runs.

This SIM Tray Card Connector is widely used in mobile phones, tablets, and other communication devices where compact and efficient SIM card interfacing is essential. Its availability in multiple heights (1.5mm to 3.0mm) and pitch options (0.7mm to 2.54mm) allows it to cater to a broad range of design requirements. The gold-plated contacts and high-quality plastic and metal alloy construction provide superior conductivity and resistance to wear, supporting up to 5000 mating cycles. This makes the SIM Socket Holder Connector particularly suitable for devices that may require frequent SIM card swapping without compromising connection integrity.

In addition to consumer electronics, the SIM Card Holder Connector is also extensively used in IoT devices, wireless communication modules, and embedded systems. Its compact design and robust performance make it perfect for scenarios where space is limited but reliable data transmission is critical. The connector’s packaging in reels or tubes supports efficient automated assembly processes, enabling manufacturers to streamline production and reduce costs.

With a supply ability of 100,000PCS and delivery times ranging from 7 to 10 days, LP ensures timely fulfillment of orders to meet urgent project deadlines. Payment terms such as T/T and L/C provide flexible options for international buyers. Whether used in new product development or as a replacement component, the LP-S024 SIM Holder Connector guarantees consistent performance, durability, and ease of integration across various applications and scenarios.

Customization:

LP presents the SIM Holder Connector, model number LP-S024, a high-quality Micro SIM Holder Slot designed for reliable performance and durability. Manufactured in China and certified under ISO-9001:2000, this Subscriber Identity Module Holder ensures compliance with international standards, including RoHS compliance for environmental safety.

With a minimum order quantity of 1000PCS and a competitive price of $0.001 per unit, this Subscriber Identity Module Holder is ideal for large-scale production needs. The packaging is thoughtfully designed, available in reels or tubes, facilitating easy handling and integration into your assembly line.

The LP-S024 features gold-plated contact plating to guarantee excellent conductivity and corrosion resistance. It supports a withstanding voltage of AC 500V R.m.s. and mating cycles up to 5000 insertions, ensuring long-lasting and stable connections. The mounting type is Surface Mount Technology (SMT), making it suitable for modern electronic manufacturing processes.

With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures timely fulfillment of your orders. Payment terms include T/T and L/C, providing flexibility and convenience for your purchasing requirements.

Choose the LP SIM Holder Connector LP-S024 for your Subscriber Identity Module Holder needs and benefit from superior quality, efficient delivery, and excellent customer service.

Support and Services:

Our SIM Holder Connector product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We offer detailed product documentation, including datasheets, application notes, and installation guides to assist you in the integration process.

For technical inquiries, our support team provides expert assistance to troubleshoot issues, answer questions, and offer recommendations tailored to your specific application requirements. We also offer custom engineering support to help adapt the SIM Holder Connector to unique design needs.

Additionally, we provide reliable after-sales services, including warranty coverage and replacement policies, to guarantee product quality and longevity. Our commitment is to support you throughout the product lifecycle, from selection and installation to maintenance and upgrades.

Packing and Shipping:

The SIM Holder Connector is carefully packaged to ensure maximum protection during transit. Each unit is placed in an anti-static bag to prevent any electrostatic damage, followed by secure cushioning material to avoid physical impact. The product is then boxed in a sturdy, corrugated cardboard carton that is clearly labeled with product details and handling instructions.

For shipping, we use reliable carriers that provide tracking and timely delivery services. Depending on the order size and destination, shipments are sent via air or sea freight with appropriate customs documentation. Our packaging and shipping processes are designed to guarantee that the SIM Holder Connector arrives safely and in perfect working condition to our customers worldwide.
