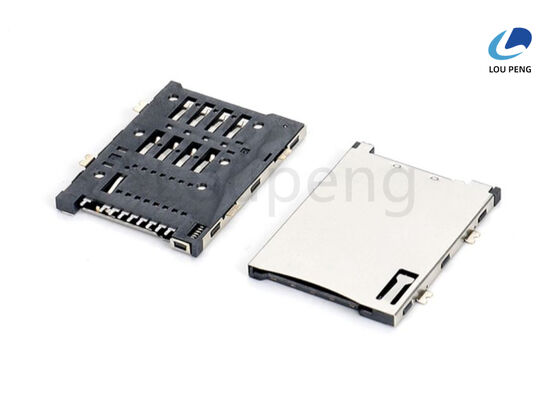

Hl Temp Plastic UL 94V-0 Rated SIM Holder Connector Supporting IoT Devices with 3 Amps Current Rating and Durable Construction

Product Description:

The SIM Holder Connector is a highly reliable and efficient component designed specifically for modern electronic devices requiring secure and stable SIM card connections. This product, also known as a SIM Socket Holder Connector, serves as an essential interface between the SIM card and the device’s circuitry, ensuring seamless communication and data transfer. Engineered with precision, the SIM Holder Connector is ideal for applications in mobile phones, tablets, IoT devices, and various communication equipment where durability and performance are critical.

One of the standout features of this SIM Holder Connector is its mounting type. It employs Surface Mount Technology (SMT), which allows for streamlined and automated assembly processes on printed circuit boards (PCBs). SMT mounting not only reduces manufacturing time but also enhances the mechanical stability of the connector, making it less prone to damage from vibrations or physical shocks. This is particularly important in portable and handheld devices that are frequently subjected to movement and handling.

The SIM Holder Connector is available in configurations with either 6PIN or 8PIN contacts, catering to different SIM card types and functionalities. These multiple contact options provide flexibility for device designers to select the appropriate connector based on their hardware requirements. The pins are carefully engineered to maintain robust electrical connections, ensuring the integrity of data signals and power supply to the SIM card.

Durability is another key attribute of the SIM Card Interface Holder. This connector is rated for up to 5000 mating cycles, meaning it can endure thousands of insertions and removals without performance degradation. Such high mating cycle capability makes it an excellent choice for devices that require frequent SIM card changes or testing during manufacturing and servicing. Users can trust that the SIM Card Slot Connector will maintain consistent contact quality throughout its lifespan.

Electrical performance is critical in any connector, and the SIM Holder Connector excels in this aspect as well. It features a maximum contact resistance of 100 milliohms, ensuring low resistance pathways for electrical signals. This low contact resistance contributes to reduced power loss and improved signal integrity, which is essential for maintaining reliable communication between the SIM card and the device. The result is stable operation with minimal risk of data errors caused by poor electrical contacts.

The design of the SIM Socket Holder Connector also emphasizes user convenience and device safety. The connector securely locks the SIM card in place, preventing accidental disconnections or damage due to movement. Moreover, it is compact in size, making it suitable for slim and lightweight device designs without compromising on durability or functionality. Its compatibility with various SIM card standards further enhances its versatility across different device models and manufacturers.

In summary, the SIM Holder Connector is a premium-quality SIM Card Interface Holder that combines superior mechanical design, robust electrical performance, and manufacturing efficiency through SMT mounting. With options for 6PIN and 8PIN contacts, a high mating cycle rating of 5000 insertions, and a maximum contact resistance of only 100 milliohms, this SIM Card Slot Connector is engineered to meet the demanding requirements of modern electronic devices. Whether used in consumer electronics, industrial communication systems, or IoT applications, this connector ensures reliable and long-lasting SIM card connectivity, making it an indispensable component in today’s digital world.

Features:

• Product Name: SIM Holder Connector
• Micro SIM Holder Slot design for secure and reliable SIM card placement
• Contact Resistance: 100 Milliohms Maximum, ensuring stable electrical connection
• Insertion Force: 100-200 Grams for easy and smooth SIM card insertion and removal
• Available Heights: 1.5mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, and 3.0mm to fit various device requirements
• Mating Cycles: Supports up to 5000 insertions, providing long-lasting durability
• Shell made of high-quality Copper Alloy for enhanced strength and corrosion resistance
• Ideal as a SIM Tray Card Connector for mobile devices and communication equipment
• Reliable SIM Tray Card Connector ensuring stable and consistent performance

Technical Parameters:

Applications:

The LP brand SIM Holder Connector, model number LP-S023, is a highly reliable and durable component designed for various applications that require secure and efficient SIM card connections. Manufactured in China and certified under ISO-9001:2000 standards, this SIM Card Socket Connector guarantees quality and consistency, making it an ideal choice for both mass production and specialized electronic devices.

Primarily used in mobile communication devices, the LP-S023 SIM Card Slot Connector is essential for smartphones, tablets, and feature phones. Its gold-plated contact plating ensures excellent conductivity and corrosion resistance, which enhances signal reliability and device performance. The copper alloy shell provides robust mechanical strength while maintaining lightweight properties, allowing manufacturers to integrate it seamlessly into compact and slim designs.

Beyond consumer electronics, this SIM Card Socket Connector finds applications in IoT devices, automotive telematics, and industrial communication systems. The connector's impressive mating cycles of up to 5000 insertions make it highly durable for scenarios requiring frequent SIM card changes, such as testing environments or multi-SIM device applications. It operates efficiently within a wide temperature range of -40°C to +105°C, ensuring stable performance even in harsh environmental conditions.

With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, the LP-S023 SIM Holder Connector is suitable for large-scale manufacturing. Its packaging in reels or tubes facilitates automated assembly processes, reducing handling time and minimizing damage risk. The product complies with RoHS standards, reflecting its environmental friendliness and adherence to global safety regulations.

Customers benefit from competitive pricing at $0.001 per unit and flexible payment terms including T/T and L/C. The typical delivery time ranges from 7 to 10 days, ensuring timely supply for production schedules. Whether used in telecommunications, consumer electronics, or industrial applications, the LP SIM Card Socket Connector LP-S023 delivers reliable connectivity, durability, and compliance, making it a versatile component in modern electronic design.

Customization:

Our SIM Socket Holder Connector, model LP-S023 from the reputable brand LP, offers exceptional quality and customization options to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this SIM Tray Card Connector ensures reliable performance and durability.

We provide flexible customization services including various pitch options of 0.7mm, 0.88mm, 1.1mm, 1.27mm, and 2.54mm to suit different design requirements. The SIM Socket Holder Connector features gold-plated contact plating for excellent conductivity and corrosion resistance, and an insulator made from high-quality LCP (UL94V-0) material for enhanced safety and durability.

With a current rating of 3 Amps and durability of up to 10,000 mating cycles, this connector is ideal for long-term and reliable use. We offer a minimum order quantity of 1000PCS, with packaging available in reels or tubes for convenient handling and assembly.

Our supply ability is robust, capable of delivering up to 100,000PCS with a typical delivery time of 7 to 10 days. Payment terms include T/T and L/C to facilitate secure and flexible transactions. The competitive price of 0.001 per unit makes this SIM Socket Holder Connector an excellent choice for your projects.

Trust LP’s SIM Tray Card Connector customization services for tailored solutions that meet your exact specifications and ensure optimal performance in your applications.

Support and Services:

Our SIM Holder Connector is designed to provide a reliable and secure connection for SIM cards in various electronic devices. For technical support, please ensure that the SIM card is properly aligned within the holder to avoid connectivity issues. The connector supports standard SIM card sizes and is compatible with most mobile communication devices.

During installation, handle the SIM Holder Connector with care to prevent damage to the delicate pins and contacts. Avoid excessive force when inserting or removing SIM cards to maintain the integrity of the connector.

If you encounter any operational issues, verify that the SIM card is clean and free from dust or debris. For cleaning, use a soft, dry cloth and avoid using any liquids or abrasive materials.

For product servicing, please refer to the datasheet and installation guidelines provided with the product. These documents contain detailed instructions on mounting, soldering, and maintenance procedures to ensure optimal performance.

In case of product failure or malfunction, inspect the connector for physical damage or corrosion. If necessary, replace the SIM Holder Connector with an identical model to ensure compatibility and functionality.

We recommend periodic inspection of the SIM Holder Connector in devices exposed to harsh environments to prevent degradation over time. Proper handling and maintenance will extend the service life of the product.

For further technical assistance and troubleshooting, consult the comprehensive support documentation available on our website.

Packing and Shipping:

Each SIM Holder Connector is carefully packaged to ensure protection during transit. The product is first placed in an anti-static bag to prevent any electrostatic damage. Multiple units are then arranged securely in a sturdy cardboard box with adequate padding to avoid movement and impact.

For bulk orders, the boxes are stacked on pallets and wrapped tightly to maintain stability during shipping. All packages are clearly labeled with product information, handling instructions, and shipping details.

We offer various shipping options including standard, expedited, and express delivery to meet customer needs. Tracking information is provided once the order has been dispatched to ensure timely and secure delivery of your SIM Holder Connector.
