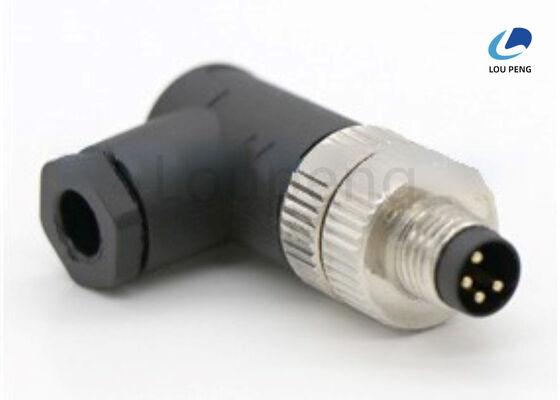

Shock Half Sine Wave Circular Connector Black Contact Resistance 5 OHMS MAX Durable Electrical Connection Solution

Product Description:

The Circular Connector is a highly reliable and versatile solution designed to meet the demanding requirements of various industrial applications. As part of the Industrial Circular Connectors family, this product offers exceptional performance, durability, and ease of use, making it an ideal choice for systems requiring secure and efficient electrical connections. Engineered with precision, the Circular Connector features a break-away locking type that ensures quick and secure mating and unmating, providing both convenience and safety in environments where rapid connection changes are necessary.

One of the standout features of this Circular Connector is its impressive waterproof rating of IP67. This rating guarantees complete protection against dust ingress and the ability to withstand immersion in water up to a depth of 1 meter for 30 minutes. Such robust waterproofing makes the connector exceptionally suitable for outdoor and harsh industrial environments where exposure to moisture, dust, and contaminants is common. Whether used in manufacturing plants, automation systems, or outdoor instrumentation, the connector maintains reliable connectivity under challenging conditions.

The insulation material used in this Circular Connector is high-quality thermoplastic, chosen for its excellent electrical insulation properties, mechanical strength, and resistance to heat and chemicals. Thermoplastic insulation ensures that the connector can endure demanding operational environments without compromising safety or performance. This material also contributes to the connector’s lightweight design, facilitating easier handling and installation without sacrificing durability.

Customization is another significant advantage of this product. The length of the Circular Connector can be tailored to meet specific application requirements, allowing for flexible integration into diverse setups. This customization capability ensures that the connector fits perfectly within the spatial constraints of your system, optimizing both functionality and aesthetics. Manufacturers and system integrators benefit from this adaptability, as it simplifies the design process and reduces the need for additional modifications.

The contact material of the Circular Connector is a premium copper alloy, selected for its excellent electrical conductivity and corrosion resistance. Copper alloy contacts ensure efficient signal transmission and power delivery, reducing energy loss and enhancing overall system performance. Additionally, the durability of copper alloy contacts contributes to the long service life of the connector, even in environments subject to vibration, mechanical stress, or frequent mating cycles.

This Circular Connector is also designed as an Integrated Connector solution, combining multiple functions into a single compact unit. This integration reduces the complexity of wiring harnesses and improves system reliability by minimizing potential points of failure. The streamlined design facilitates faster assembly and maintenance, which can significantly reduce downtime and operational costs in industrial settings.

In summary, the Circular Connector stands out as a superior choice within the realm of Industrial Circular Connectors due to its break-away locking mechanism, IP67 waterproof rating, thermoplastic insulation material, customizable length, and copper alloy contacts. Its robust construction and integrated design make it suitable for a wide range of industrial applications, including automation equipment, robotics, transportation systems, and outdoor electrical installations. By choosing this Circular Connector, users gain a durable, efficient, and adaptable connectivity solution that meets the highest standards of performance and reliability.

Features:

• Product Name: Circular Connector
• Type: Whip, puck, panel
• Length: Customize to fit your needs
• Contact Resistance: 5 OHMS MAX
• Locking Type: Break-away for secure connections
• Cable Outer Diameter (OD): 2.6mm - 7.5mm
• Compatible with Centronics Connector standards
• Durable Circular Plastic Connector design
• Ideal for various Circular Cable Connectors applications

Technical Parameters:

Applications:

The LP Circular Connector Model LP-M8003, manufactured in China and certified under ISO-9001:2000, is an exceptional electrical connector designed for a wide range of application occasions and scenarios. With its robust panel mount design and gold-plated contacts offering a maximum contact resistance of 5 OHMS, this circular connector cable assembly ensures reliable and stable connections, making it ideal for demanding environments where durability and performance are critical.

This circular push pull connector is widely used in industrial automation systems, where secure and quick connection and disconnection are vital. Its user-friendly push-pull locking mechanism simplifies installation and maintenance, reducing downtime and increasing operational efficiency. The LP-M8003 model supports cable diameters ranging from 2.6mm to 7.5mm, providing great flexibility for various wiring requirements in control panels, machinery, and instrumentation.

Due to its compact black housing and high-quality gold-plated contacts, the LP circular connector is also well-suited for medical equipment, audio-visual devices, and communication systems where signal integrity and corrosion resistance are paramount. The product’s compliance with strict quality standards backed by ISO certification guarantees consistent performance and longevity, which is essential in critical applications.

With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, businesses can efficiently procure these circular connector cable assemblies in bulk. Packaging is carefully arranged in tubes or trays to ensure safe transportation and easy handling. The supply ability of 100,000PCS and a delivery timeframe of 7 to 10 days enables timely fulfillment of large-scale projects and ongoing production needs.

Payment terms such as T/T, Western Union, and L/C provide flexible options for international buyers, making the LP-M8003 circular push pull connectors accessible worldwide. Whether used in aerospace, automotive, telecommunications, or industrial equipment, these electrical connectors deliver dependable performance, ensuring stable electrical connections in diverse operational scenarios.
