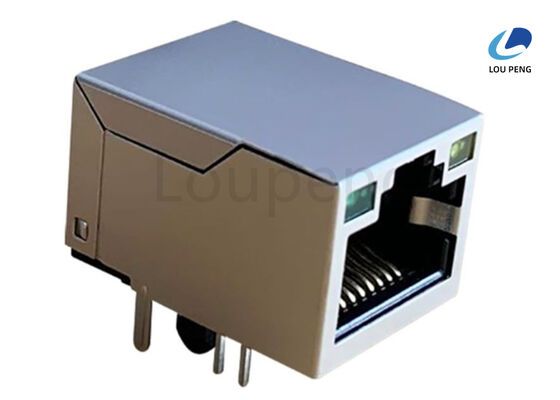

UL 94V-0 Housing RJ45 Ethernet Plug Operating Temperature Range Minus 40 Celsius To Plus 85 Celsius Connector For Network Cabling

Product Description:

The RJ45 / LAN Connector is a high-quality component designed to ensure reliable and efficient network connectivity in a variety of applications. This versatile Ethernet connector plug is available with either 6 or 8 positions, making it suitable for different wiring configurations and network standards. Whether you are setting up a home network, office infrastructure, or industrial communication system, this RJ45 Ethernet Plug provides the durability and performance required for stable data transmission.

One of the standout features of this RJ45 Ethernet Plug is its impressive current rating of 1.5 AMP, which allows it to handle power and data signals effectively without compromising safety or performance. This current rating ensures that the connector can support Power over Ethernet (PoE) applications, enabling devices such as IP cameras, wireless access points, and VoIP phones to receive power and data over a single cable.

The housing of this Ethernet connector plug is constructed from premium materials, including LCP (Liquid Crystal Polymer), PBT (Polybutylene Terephthalate), and PA46 (Polyamide 46), all finished in a sleek black color. These materials are chosen not only for their mechanical strength but also for their excellent heat resistance and flame retardant properties, conforming to UL 94V-0 standards. This ensures that the connector maintains its integrity and safety even under demanding environmental conditions, making it ideal for use in both residential and industrial settings.

Before furnace processing, the connector maintains a weight range of 6.5kg to 7.5kg, highlighting its robust construction. This weight specification reflects the solid build quality and reliability of the product, ensuring that it can withstand the mechanical stresses encountered during installation and operation.

Additionally, the RJ45 / LAN Connector offers both shielded and unshielded options to cater to different network requirements. The shielded variant provides enhanced protection against electromagnetic interference (EMI) and radio frequency interference (RFI), which is crucial in environments with high levels of electrical noise. This shielding helps maintain signal integrity, reduces data loss, and improves overall network performance. On the other hand, the unshielded option is suitable for less demanding environments where interference is minimal, offering a cost-effective solution without sacrificing connection quality.

Designed with precision engineering, this RJ45 Ethernet Plug ensures a secure and stable connection with minimal signal attenuation. The contacts are crafted to provide excellent conductivity and corrosion resistance, contributing to the longevity and reliability of the network connection. The connector’s design also facilitates easy installation and maintenance, making it a preferred choice for network technicians and engineers.

In summary, the RJ45 / LAN Connector stands out as a dependable Ethernet connector plug that combines versatility, durability, and performance. With options for 6 or 8 positions, a current rating of 1.5 AMP, robust housing materials compliant with UL 94V-0 standards, and availability in shielded or unshielded configurations, it meets the diverse needs of modern networking applications. Whether you are upgrading an existing network or building a new one, this RJ45 Ethernet Plug offers the reliability and quality that ensure seamless and efficient data communication.

Features:

• Product Name: RJ45 / LAN Connector
• High-quality Local Area Network Connector suitable for various applications
• Plating: Gold plating over nickel with plated nickel thickness of 30-50µ"
• Sn plating thickness: 100-120µ"
• Gold plated on content area available in 1µ", 3µ", 6µ", 15µ", 30µ", and 50µ"
• Guaranteed for 12 months ensuring durability and reliability
• Operating Temperature Range: -40°C to +85°C, suitable for harsh environments
• After furnace test (48 hours): Mechanical strength between 6.2kg to 7.2kg
• Compatible with multiple cable types including Cat5e, Cat6, Cat6a, and Cat7
• Functions as an Ethernet Connector Plug and Ethernet Port Connector for network devices

Technical Parameters:

This Ethernet Port Connector serves as a reliable Network Interface Connector, designed to meet the demands of modern Ethernet Port Connector applications.

Applications:

The LP-RJ027 RJ45 / LAN Connector is a high-quality Ethernet Port Connector designed to meet the demanding needs of modern networking environments. Manufactured in China under strict ISO-9001:2000 certification standards, this connector ensures exceptional reliability and performance. With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, it is well-suited for large-scale production and deployment. The connector is priced competitively at 0.003 per unit, making it an ideal choice for cost-conscious projects without compromising quality.

This RJ45 Modular Jack is engineered for versatile mounting options, including Through Hole, Surface Mount, and SMT, allowing seamless integration into various printed circuit boards and devices. It features phosphor bronze contacts with a thickness of 0.35mm, providing excellent conductivity and durability. The connector supports an operating temperature range from -40°C to +85°C, ensuring stable performance in diverse environmental conditions. Additionally, its robust design guarantees an operating life of at least 750 mating cycles, with a maximum mating/unmating force of 30N/3.06KGf, ensuring reliable connections over time.

Packaging options for the LP-RJ027 include convenient Reel and Tray formats, facilitating efficient handling and automated assembly processes. The delivery time of 7 to 10 days and flexible payment terms such as T/T, Western Union, and L/C further enhance the product’s appeal for global procurement.

The Ethernet Port Connector is ideal for a wide range of application occasions and scenarios. It is commonly used in networking equipment such as routers, switches, and hubs where stable and high-speed LAN connectivity is essential. The LAN Cable Connector plays a critical role in data centers and server farms, supporting the backbone of enterprise network infrastructure. It is also widely employed in consumer electronics, including desktop computers, laptops, and gaming consoles, to provide seamless internet access.

In industrial settings, the RJ45 Modular Jack is utilized in automation systems, surveillance cameras, and IoT devices where environmental resilience and secure connectivity are crucial. Its ability to operate reliably under harsh temperature conditions makes it suitable for outdoor installations and transportation networks. Moreover, telecommunications equipment, smart home devices, and office networking solutions greatly benefit from the LP-RJ027’s robust performance and easy integration.

Overall, the LP-RJ027 RJ45 / LAN Connector by LP stands out as a dependable and versatile component that supports a wide spectrum of networking applications, ensuring efficient data transmission and connectivity in both consumer and industrial scenarios.

Customization:

Our LP brand RJ45 / LAN Connector, model number LP-RJ027, is a high-quality Ethernet Network Connector designed to meet rigorous standards and deliver reliable performance. Manufactured in China and certified with ISO-9001:2000, this Network Interface Connector complies with TIA/EIA-568 and IEEE 802.3 standards, ensuring compatibility and durability in various networking applications.

With a minimum order quantity of 1000PCS and a competitive price of 0.003 per unit, this LAN RJ45 Interface is available with packaging options including Reel or Tray. The connector features a brass shell with thickness options of 0.15 or 0.2 mm, plated with gold over nickel to enhance conductivity and corrosion resistance. The plating includes nickel thickness of 30-50U, tin 100-120U, and gold plating on content areas ranging from 1U to 50U.

The LP-RJ027 supports IR temperature tolerance of 260 ± 5°C for 5 to 10 seconds, ensuring reliable soldering and long-term stability. We offer a supply ability of 100,000PCS with a delivery time of 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C options.

This LAN RJ45 Interface is designed in black color, providing a professional look suitable for various Ethernet networking environments. Choose our LP RJ45 / LAN Connector for your Ethernet Network Connector needs and experience superior quality and service.

Support and Services:

Our RJ45 / LAN Connector products are designed to provide reliable and high-performance network connectivity for various applications. For technical support, please ensure that your installation complies with the specified wiring standards and environmental conditions as outlined in the product datasheet.

If you encounter any issues with the RJ45 / LAN Connector, verify the cable type, connector compatibility, and proper termination techniques. We recommend using certified tools and following best practices to maintain optimal signal integrity and minimize connection problems.

We offer comprehensive services including product troubleshooting, replacement guidance, and application support to help you achieve the best performance from your network installations. Our technical team is equipped to assist with integration advice and to provide detailed product information upon request.

For additional resources, please refer to the product manuals, installation guides, and FAQs available on our website. Staying updated with the latest firmware and standards will ensure your RJ45 / LAN Connector operates efficiently within your network infrastructure.

Packing and Shipping:

Each RJ45 / LAN Connector is carefully packaged to ensure protection during transit. The connectors are placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then securely packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical damage.

For bulk orders, the connectors are organized in smaller inner boxes, which are then placed inside larger master cartons for added protection and easier handling. All packages are clearly labeled with product information, quantity, and handling instructions.

We use reliable shipping services to deliver the products promptly and safely to your specified address. Tracking information is provided once the order is dispatched, allowing you to monitor the shipment status until it arrives.
