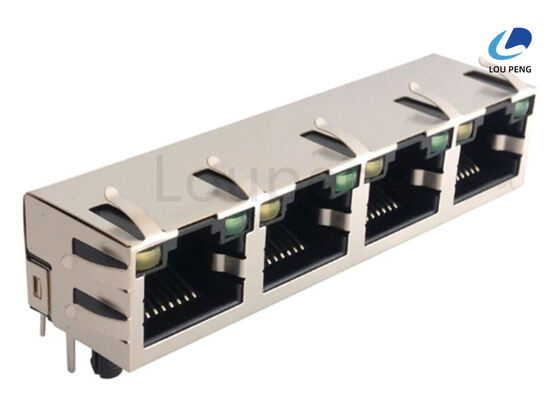

Insertion Life 750 Cycles RJ45 LAN Connector Industrial Grade LAN Networking Connector Suitable for Ethernet Connections

Product Description:

The RJ45 / LAN Connector is a high-quality Local Area Network Connector designed to provide reliable and efficient connectivity for a wide range of networking applications. Engineered with precision and durability in mind, this RJ45 Modular Jack is an essential component for establishing secure and stable Ethernet connections in various devices and systems.

One of the standout features of this RJ45 Modular Jack is its robust shell, which is crafted from brass with a thickness of either 0.15mm or 0.2mm. This brass shell not only ensures excellent durability and resistance to physical wear but also contributes to enhanced shielding capabilities. The connector is available in both shielded and unshielded options, allowing users to select the best variant based on their specific environmental and electromagnetic interference requirements.

When it comes to installation flexibility, this Local Area Network Connector offers multiple mounting types to suit different PCB assembly processes and design constraints. It supports Through Hole, Surface Mount, and SMT (Surface Mount Technology) mounting types, making it adaptable for various manufacturing setups. Whether you are designing a compact device or a more robust networking equipment, this RJ45 Modular Jack can be seamlessly integrated to meet your needs.

Performance-wise, the connector is engineered to maintain a secure connection with a maximum mating force of 30N (approximately 3.06 kgf). This ensures that once plugged in, the RJ45 Modular Jack remains firmly connected, minimizing the risk of accidental disconnections during operation. The unmating force is also carefully calibrated to allow easy disconnection without causing damage to the connector or the cable, providing both reliability and user convenience.

Quality assurance is a key aspect of this RJ45 / LAN Connector. To guarantee long-term performance and customer satisfaction, the product comes with a 12-month guarantee period. This warranty reflects the manufacturer's confidence in the durability and functionality of the connector, offering peace of mind to users who rely on stable network connections for their critical applications.

In summary, the RJ45 Modular Jack is a versatile and dependable Local Area Network Connector that combines robust materials, flexible mounting options, and reliable mechanical performance. Whether you require shielded or unshielded variants, or prefer Through Hole, Surface Mount, or SMT installation methods, this connector is designed to meet the stringent demands of modern networking environments. Its brass shell construction, secure mating force, and comprehensive warranty make it an ideal choice for engineers and manufacturers seeking high-quality RJ45 connectors for Ethernet and other LAN applications.

Features:

• Product Name: RJ45 / LAN Connector
• Number Of Contacts: 8 / 6
• Number Of Positions: 8 / 6
• Application: LAN Networking
• Cable Compatibility: Cat5e, Cat6, Cat6a, Cat7
• Guarantee Period: 12 Months
• Features RJ45 Network Socket for reliable connections
• Designed as a LAN Cable Connector to ensure stable data transmission
• Supports LAN RJ45 Interface standards for broad compatibility

Technical Parameters:

Applications:

The LP-RJ030 RJ45 / LAN Connector, proudly manufactured in China by the reputable brand LP, is an essential component for various networking applications. Certified under ISO-9001:2000 standards, this Ethernet Port Connector offers reliable and high-quality performance, making it suitable for a wide range of product application occasions and scenarios. Designed with durability and efficiency in mind, the LP-RJ030 is ideal for both commercial and residential networking setups.

One of the primary application occasions for the LP-RJ030 is in office environments where stable and fast wired internet connections are crucial. As a Network Interface Connector, it serves as the backbone for connecting computers, printers, and other devices to local area networks (LAN), ensuring seamless data transfer and communication. Its robust housing made from LCP, PBT, or PA46 materials, rated UL 94V-0 in black, guarantees resistance to wear and environmental stress, supporting insertion life of up to 750 cycles.

The LAN RJ45 Interface is also widely used in data centers and server rooms where high-density networking is required. The connector’s gold plating over nickel, with plating thickness options ranging from 1U to 50U, provides excellent conductivity and corrosion resistance, enhancing signal integrity and connection stability. This makes it suitable for environments where uninterrupted network connectivity is vital, such as in cloud computing facilities and enterprise-level IT infrastructures.

Additionally, the LP-RJ030 connector is an excellent choice for consumer electronics and smart home devices that require reliable Ethernet connections. Its compact design and low mating/unmating force (30N/3.06KGf max) facilitate easy installation and maintenance, making it perfect for routers, switches, gaming consoles, and media streaming devices. The connector’s packaging options, available in reels or trays, support large-scale production and assembly line use, with a minimum order quantity of 1000 pieces and a supply ability of 100,000 pieces, ensuring timely delivery within 7 to 10 days.

With a competitive price of just 0.003 per unit and flexible payment terms including T/T, Western Union, and L/C, the LP-RJ030 RJ45 / LAN Connector is a cost-effective solution for manufacturers and network engineers alike. The product also comes with a 12-month guarantee period, providing peace of mind regarding its long-term reliability. Whether it is used for upgrading existing network infrastructure or building new systems, this Ethernet Port Connector is designed to deliver exceptional performance across all network interface connector applications.

Customization:

LP brand offers the LP-RJ030 model, a high-quality Network Interface Connector designed and manufactured in China with ISO-9001:2000 certification to ensure superior standards.

This Ethernet Connector Plug features gold plating over nickel with plating thickness options including Nickel 30-50U, Sn 100-120U, and gold plating on contact areas ranging from 1U to 50U, providing excellent corrosion resistance and reliable connectivity.

The LAN RJ45 Interface supports standards compliance such as TIA/EIA-568 and IEEE 802.3, making it suitable for a wide range of network applications. It offers versatile mounting types including Through Hole, Surface Mount, and SMT.

Operating reliably in temperature ranges from -40°C to +85°C, this connector is ideal for various environmental conditions. The product is supplied with packaging options of reel or tray and a minimum order quantity of 1000PCS.

LP ensures a supply ability of 100,000PCS with a competitive price of $0.003 per unit. Delivery time is typically 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C.

Before furnace processing, the weight ranges between 6.5kg to 7.5kg, ensuring quality control before final production. Choose LP's LP-RJ030 for a reliable, cost-effective, and customizable Network Interface Connector solution.

Support and Services:

Our RJ45 / LAN Connectors are designed to provide reliable and high-performance network connections for a variety of applications. To ensure optimal functionality and longevity of your connectors, please follow the installation and maintenance guidelines provided in the product manual.

If you encounter any issues with the RJ45 / LAN Connectors, please verify that the connectors are properly seated and that all cables are securely attached. Check for any visible damage to the connectors or cables, and replace any defective components as necessary.

For technical support, our team of experts is available to assist with troubleshooting, product compatibility, and performance optimization. We also offer comprehensive services including product customization, bulk orders, and technical training to help you make the most of your network infrastructure.

Regular inspections and cleaning of the connectors can prevent connectivity problems caused by dust or corrosion. Use appropriate cleaning tools and avoid exposure to harsh environmental conditions to maintain the integrity of the connectors.

Please refer to the detailed datasheets and user manuals available on our website for additional information on specifications, installation procedures, and safety precautions related to the RJ45 / LAN Connectors.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective plastic bag to prevent damage and contamination during handling and transport.

Connectors are then securely placed in sturdy cardboard boxes with appropriate padding to ensure they remain intact throughout shipping.

Boxes are labeled clearly with product information, quantity, and handling instructions to facilitate easy identification and safe delivery.

For bulk orders, multiple boxes are consolidated into larger cartons and palletized as needed to optimize shipping efficiency and protect the product.

We partner with reliable carriers to ensure timely and secure delivery to your specified location.
