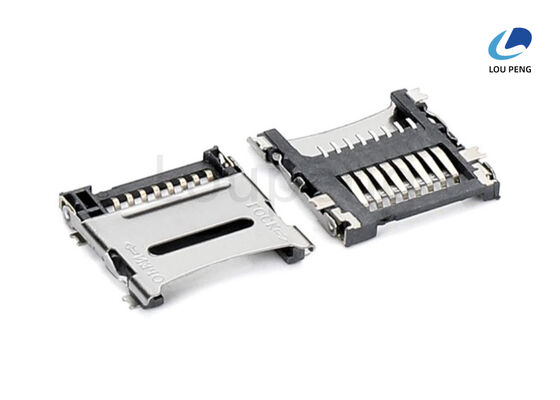

Phosphor Bronze Contact Material Micro SD Holder Connector Stainless Steel Shell 0.20mm Thickness SD Card Slot Connector Type

Product Description:

The SD Holder Connector is a high-quality SD Card Reader Connector designed to provide reliable and efficient connectivity for Secure Digital (SD) cards. This connector is engineered to meet the demands of various electronic devices that require secure and stable interfaces for SD memory cards, making it an essential component in modern digital devices such as cameras, laptops, and handheld gadgets.

One of the standout features of this SD Memory Slot Connector is the integrated card detect switch. This switch allows the host device to automatically recognize when an SD card is inserted or removed, enhancing user convenience and system responsiveness. By incorporating the card detect switch, the connector ensures seamless communication between the SD card and the host system, reducing the risk of data loss or corruption caused by improper card handling.

The SD Holder Connector is designed with durability and performance in mind. It features a plating specification of Tin/Lead with 100 microinches at the solder tail contact area, combined with a gold plating of 10 microinches on the contact surfaces. This dual plating approach not only ensures excellent solderability and mechanical strength but also provides superior corrosion resistance and signal integrity. The gold plating on the contact points minimizes contact resistance and enhances the overall reliability of the Secure Digital Card Slot during repeated card insertions and removals.

Operating in a wide temperature range from -40°C to 90°C, this SD Card Reader Connector is well-suited for use in diverse environments, including industrial applications, outdoor devices, and automotive electronics. The broad operating temperature range guarantees stable performance even under extreme conditions, making it a versatile choice for manufacturers seeking robust connectivity solutions.

Another critical electrical characteristic of this SD Memory Slot Connector is its low contact resistance, which is rated at a maximum of 40 milliohms. This low resistance ensures efficient electrical conduction, reducing power loss and enhancing signal transmission quality. The reliable contact resistance performance contributes to the overall durability and longevity of the connector, ensuring consistent performance over the lifespan of the device.

The connector type is specifically designed as an SD Card Slot, compatible with a wide range of Secure Digital cards, including standard SD, SDHC, and SDXC formats. This compatibility makes it an ideal component for devices that require expandable storage options, enabling users to easily insert and remove SD cards for data transfer, storage expansion, or media playback.

In summary, the SD Holder Connector combines functional design with robust material construction to deliver a dependable solution for Secure Digital Card Slot applications. Its built-in card detect switch, dual plating for enhanced durability, wide operating temperature range, and low contact resistance make it an excellent choice for manufacturers and designers looking to integrate SD Card Reader Connectors into their products. Whether used in consumer electronics, industrial equipment, or automotive systems, this SD Memory Slot Connector ensures secure, efficient, and long-lasting connectivity for all your SD card interfacing needs.

Features:

• Product Name: SD Holder Connector
• Contact Material: Copper Alloy (thickness 0.15mm)
• Available Number of Pins: 8, 9, or 11
• Contact Resistance: Maximum 40 Megohms
• Card Insertion Force: 30-50N for smooth and secure insertion
• Card Retention Force: 10-20N to ensure reliable card holding
• Designed for use in Secure Digital Card Reader applications
• Compatible with Secure Digital Card Slot configurations
• Ideal for SD Card Holder Assembly in various electronic devices

Technical Parameters:

Applications:

The LP SD Holder Connector, model number LP-SD025, is a high-quality Secure Digital Holder Connector designed to meet the rigorous demands of modern electronic devices. Manufactured in China under strict ISO-9001:2000 certification, this connector ensures reliability and durability in various applications. Its robust housing made of high-temperature plastic UL 94V-0 provides excellent heat resistance and safety, making it ideal for use in environments where thermal stability is crucial.

This Secure Digital Holder Connector is widely used in consumer electronics, including digital cameras, portable media players, and handheld gaming devices, where reliable data storage and transfer are essential. The SD Memory Slot Connector supports Secure Digital Card Slots with 8, 9, or 11 pins, accommodating a broad range of SD card types and ensuring compatibility with numerous devices. Its black color housing not only offers a sleek appearance but also adds to its durability and resistance to wear and tear.

With an impressive mating cycle of 10,000 insertions and a withstanding voltage of AC 500V, the LP-SD025 model guarantees long-lasting performance and safety in electronic connections. This makes it suitable for professional applications such as industrial control systems, automotive electronics, and medical devices where continuous and stable data communication is critical.

The connector's packaging options, including Reel, Tube, and Tray, cater to various manufacturing and assembly needs, facilitating efficient production lines. With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, the LP Secure Digital Holder Connector is an economical choice for bulk purchasing. Delivery is prompt, typically within 7 to 10 days, and flexible payment terms such as T/T, Western Union, and L/C are available to accommodate different customer preferences.

Thanks to its supply ability of 100,000PCS, the LP-SD025 Secure Digital Holder Connector can meet large-scale production demands without compromising quality or lead time. Whether you’re designing new consumer electronics or upgrading existing products, this SD Memory Slot Connector provides a dependable solution for integrating Secure Digital Card Slots, ensuring secure, fast, and stable data storage and retrieval in a wide range of applications.

Customization:

Our LP brand SD Holder Connector, model number LP-SD025, is a high-quality Secure Digital Card Reader designed and manufactured in China with ISO-9001:2000 certification, ensuring reliable performance and durability.

This SD Card Socket Connector supports multiple card formats including Micro SD, MINI SD, 4-in-1 (MS+SD+MMC+XD), and 3-in-1 configurations, making it a versatile SD Card Interface Holder suitable for various applications.

Featuring a phosphor bronze contact material and a stainless steel shell with a thickness of 0.20mm, the connector offers excellent insulation resistance of 1000 MΩ minimum and can withstand an AC voltage of 500V, guaranteeing safety and stability during operation.

We offer flexible packaging options including Reel, Tube, and Tray to meet diverse customer needs. With a supply ability of 100,000 PCS and a minimum order quantity of 1,000 PCS, we ensure timely delivery within 7 to 10 days.

Our competitive price of 0.0003 per unit, combined with convenient payment terms such as T/T, Western Union, and L/C, makes the LP-SD025 an ideal choice for your SD card connectivity requirements.

Support and Services:

Our SD Holder Connector product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, troubleshooting manuals, and maintenance instructions to assist users in effectively utilizing the product.

Technical support is available to help resolve any issues related to compatibility, connectivity, or performance. Our team of experts is equipped to offer guidance on integration with various devices and systems, ensuring seamless operation.

We also offer firmware updates and software tools designed to enhance the functionality and security of the SD Holder Connector. Regular updates help maintain compatibility with the latest SD card standards and improve overall reliability.

For customers requiring customized solutions, we provide consultation services to tailor the SD Holder Connector to specific application needs. This includes modifications in design, materials, or configurations to meet unique operational requirements.

Additionally, we offer warranty services that cover manufacturing defects and provide repair or replacement options within the warranty period. Our goal is to deliver a dependable product backed by responsive and knowledgeable support.

To maximize the lifespan and efficiency of your SD Holder Connector, we recommend following the provided usage guidelines and taking advantage of our support resources whenever needed.

Packing and Shipping:

Product Packaging: The SD Holder Connector is securely packaged in an anti-static bag to protect it from electrostatic discharge. It is then placed inside a sturdy cardboard box with foam padding to prevent any physical damage during transit. Each package includes the SD Holder Connector unit along with a user manual and installation guide.

Shipping: We offer worldwide shipping with reliable carriers to ensure timely delivery. Orders are processed within 1-2 business days. Tracking information will be provided once the product is dispatched. For expedited shipping options, please contact our customer service. We take utmost care in packaging to guarantee the product arrives in perfect condition.
