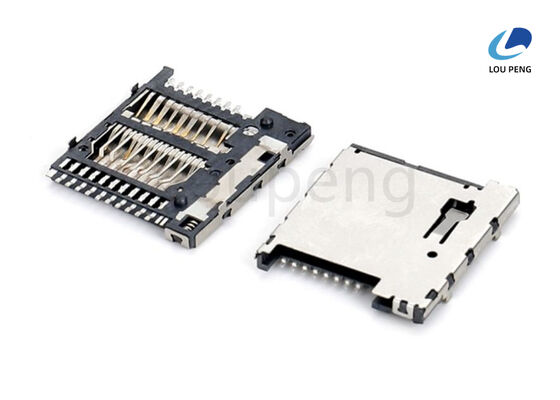

Insulation Resistance 1000 MΩ Minimum Micro SD Memory Card Holder Featuring Dielectric Withstanding Voltage AC 50OV Rm s Data Protection

Product Description:

The SD Holder Connector is a high-quality component designed specifically for the reliable and efficient connection of Secure Digital (SD) cards in various electronic devices. As an essential part of the SD Card Holder Assembly, this connector ensures a secure and stable interface between the SD card and the host device, making it ideal for applications requiring frequent data transfer, such as digital cameras, portable media players, and embedded systems.

Constructed with precision and durability in mind, the SD Holder Connector features contact materials made from premium copper alloy. This choice of material guarantees excellent electrical conductivity and corrosion resistance, which are critical for maintaining signal integrity over long periods of use. The copper alloy contacts have a thickness of 0.15mm, providing a robust and reliable connection to the SD card pins without compromising flexibility or durability.

To enhance the longevity and performance of the contacts, the connector employs a sophisticated plating process. The solder tail contact areas are plated with a layer of tin/lead measuring 100 microinches (u"), which ensures optimal solderability and strong mechanical bonding during assembly. Additionally, the contact surfaces that interface directly with the SD card are plated with 10 microinches of gold. This gold plating significantly improves corrosion resistance, reduces contact resistance, and minimizes wear from repeated insertions and removals of the SD card, thereby extending the service life of the Secure Digital Holder Connector.

Beyond the electrical contacts, the mechanical structure of the SD Holder Connector is engineered for durability and reliability. The link component is made from stainless steel, a material known for its strength and resistance to deformation and corrosion. This stainless steel link provides the necessary mechanical support and alignment to ensure the SD card is securely held in place within the Secure Digital Card Slot, preventing accidental disconnections or damage during use.

The spring mechanism incorporated into the SD Holder Connector is crafted from SWP (Spring Wire Phosphor Bronze), which offers excellent elasticity and resilience. This spring ensures consistent contact pressure between the SD card and the connector contacts, maintaining stable electrical connections even under vibration or minor movements. The use of SWP for the spring also contributes to the overall durability and reliability of the SD Card Holder Assembly, as it can withstand numerous insertion and removal cycles without losing its effectiveness.

Designed with both functionality and ease of assembly in mind, the SD Holder Connector integrates seamlessly into a wide range of electronic devices. Its compact form factor and precision engineering allow for easy installation on printed circuit boards (PCBs), while ensuring compatibility with standard SD card sizes. This makes it an ideal choice for manufacturers seeking a dependable and efficient solution for incorporating Secure Digital Card Slots into their products.

In summary, the SD Holder Connector stands out as a top-tier component within the realm of SD Card Holder Assemblies. Its combination of copper alloy contacts with specialized plating, a stainless steel link, and an SWP spring mechanism delivers exceptional electrical performance, mechanical stability, and long-term durability. Whether used in consumer electronics, industrial equipment, or embedded systems, this Secure Digital Holder Connector guarantees a secure and reliable connection for all your SD card interfacing needs.

Features:

• Product Name: SD Holder Connector
• Compatible with SD Card Reader Connector and Secure Digital Card Reader applications
• Terminal made from high-quality Copper Alloy for reliable conductivity
• Cover constructed from Brass with Nickel Plating for enhanced durability
• Plating includes Tin/Lead 100μ" at solder tail contact area and Gold Plating 10μ" for corrosion resistance
• Material combines Plastic and Metal for sturdy and lightweight design
• Color: Black, providing a sleek and professional look
• Designed to fit Secure Digital Card Slot seamlessly

Technical Parameters:

Applications:

The LP SD Holder Connector, model number LP-SD022, is a high-quality Secure Digital Card Reader designed to meet the demanding requirements of modern embedded systems and consumer electronics. Manufactured in China, this SD Card Socket Connector is crafted from durable plastic and metal materials, with contacts made from phosphor bronze and copper alloy to ensure excellent conductivity and long-lasting performance. Certified under ISO-9001:2000, the LP-SD022 guarantees reliability and consistency, making it a trusted component for various electronic applications.

This Secure Digital Card Slot is ideal for use in a wide range of application occasions and scenarios where secure and efficient data storage and transfer are essential. In embedded systems, the LP SD Holder Connector provides a compact and reliable interface for SD cards, enabling seamless integration into devices such as industrial controllers, automotive electronics, and IoT devices. Its robust design with a card detect switch ensures that the device accurately detects the presence of an SD card, preventing data loss or corruption.

In the consumer electronics sector, this SD Card Socket Connector is perfectly suited for devices like digital cameras, handheld gaming consoles, portable media players, and laptops. Its precise construction supports quick and secure insertion and removal of SD cards, offering users an enhanced experience in data handling and storage. The LP-SD022’s packaging options—Reel, Tube, or Tray—facilitate easy handling and assembly for manufacturers, supporting efficient production workflows.

With a minimum order quantity of 1000 pieces and a competitive price of 0.0003 per unit, the LP SD Holder Connector is an excellent choice for large-scale manufacturing. Its supply ability of 100,000 pieces and delivery timeframe of 7 to 10 days ensure timely fulfillment of orders. Payment terms are flexible, accepting T/T, Western Union, and L/C, accommodating various business needs.

Overall, the LP-SD022 Secure Digital Card Reader is a versatile and dependable solution for any project requiring a secure and efficient Secure Digital Card Slot. Whether you are developing embedded systems or consumer electronics, this SD Card Socket Connector offers the performance, quality, and convenience needed to support your product’s success.

Customization:

The LP brand Secure Digital Card Reader, model number LP-SD022, is a high-quality SD Card Socket Connector manufactured in China with ISO-9001:2000 certification. Designed for surface mount applications, this product features a copper alloy contact thickness of 0.15mm, ensuring excellent conductivity and durability. It offers a minimum insulation resistance of 1000 MΩ, guaranteeing reliable performance in various electronic devices.

Our SD Holder Connector comes with plating options including Tin/Lead 100u" at the solder tail contact area and Gold plating 10u" for enhanced corrosion resistance and superior signal transmission. The connector's link is made from stainless steel, providing robust mechanical strength.

We provide flexible packaging solutions such as Reel, Tube, or Tray to meet your production needs. With a minimum order quantity of 1000PCS and a competitive price of 0.0003 per unit, LP ensures efficient supply ability of up to 100000PCS with a delivery time of 7 to 10 days.

Payment terms accepted include T/T, Western Union, and L/C, facilitating smooth and secure transactions. Choose LP's Secure Digital Card Reader SD Holder Connector for reliable, high-performance SD Card Socket Connector solutions tailored to your product customization requirements.

Support and Services:

Our SD Holder Connector product is designed to provide reliable and secure connections for SD cards in various electronic devices. For technical support, we offer comprehensive assistance including troubleshooting, installation guidance, and compatibility information to ensure optimal performance.

Our support team is equipped to help with product specifications, usage instructions, and resolving any issues related to connectivity or hardware integration. We also provide firmware updates and maintenance tips to enhance the longevity and functionality of the SD Holder Connector.

Additionally, we offer customization services to meet specific application requirements, including modifications for different sizes, locking mechanisms, and mounting options. Our goal is to ensure seamless integration of the SD Holder Connector into your devices, backed by expert support throughout the product lifecycle.

For further assistance, detailed product documentation and user manuals are available to guide you through installation and operation processes, ensuring you get the best performance from your SD Holder Connector.

Packing and Shipping:

Product Packaging:

The SD Holder Connector is carefully packaged in a sturdy, protective box to ensure it arrives in perfect condition. Inside the box, the connector is secured with anti-static foam padding to prevent any damage during transit. The packaging includes a clear label with product specifications and handling instructions for easy identification.

Shipping:

We offer reliable shipping options worldwide with tracking available for all orders. Each SD Holder Connector is shipped promptly after order confirmation and quality inspection. For international shipments, all necessary customs documentation is provided to ensure smooth delivery. Shipping times may vary depending on the destination, and expedited shipping options are available upon request.
