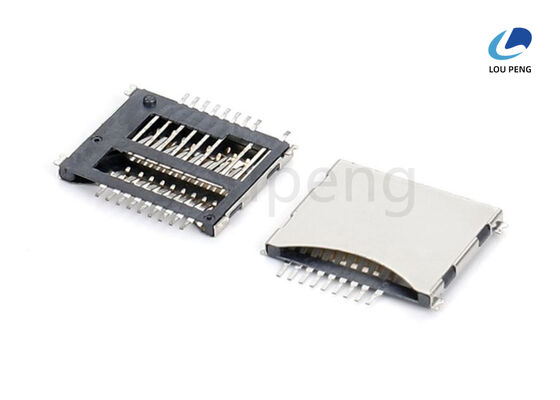

Nickel Plating For All SD Holder Connector Copper Alloy Contact Material Contact Resistance 40 Megohms Max Durable Electrical Component

Product Description:

The SD Holder Connector is a highly reliable and versatile component designed specifically to accommodate Secure Digital (SD) cards, making it an essential part of any device requiring efficient and secure data storage solutions. Engineered to support multiple configurations, this connector is available with 8, 9, or 11 pins, allowing for compatibility with a wide range of SD card types and applications. Whether you are designing a compact handheld device, an industrial machine, or a consumer electronics product, this SD Card Socket Connector offers the flexibility and performance needed to ensure seamless integration and optimal functionality.

One of the standout features of this SD Holder Connector is its robust operating temperature range, which spans from -40°C to 90°C. This wide temperature tolerance ensures reliable performance in various environmental conditions, from extreme cold to high heat, making it suitable for applications in automotive, outdoor, and industrial environments. The ability to function effectively across such a broad temperature spectrum guarantees that your data storage device will maintain stable connections and consistent data transfer rates even under challenging conditions.

The design of the connector emphasizes durability and ease of use, particularly concerning the card insertion force. With a card insertion force calibrated between 30-50N, users can expect a secure yet manageable insertion experience. This balance ensures that the SD card is firmly held in place within the slot, minimizing the risk of accidental disconnections or data loss, while also allowing for smooth insertion and removal without excessive effort. This attribute is especially important in portable devices, where frequent card changes are common.

At the heart of the connector’s high performance lies the choice of contact material. The contacts are made from phosphor bronze, a material renowned for its excellent elasticity, durability, and electrical conductivity. Phosphor bronze contacts provide superior mechanical strength and resist wear and corrosion over time, which translates to longer connector lifespan and reliable electrical connections throughout the product’s life cycle. Complementing the contact material is the gold plating on the contacts, which significantly enhances conductivity and provides excellent resistance to oxidation and tarnishing. This combination of phosphor bronze contacts with gold plating ensures low contact resistance and stable signal transmission, critical factors for maintaining data integrity and preventing communication errors.

This SD Card Reader Connector is engineered to meet the rigorous demands of modern electronics, offering a compact yet robust solution for embedding Secure Digital Card Slots in your devices. Its precision manufacturing and high-quality materials make it an ideal choice for applications ranging from consumer electronics like digital cameras and MP3 players to professional equipment such as medical devices and industrial controllers. The connector’s secure locking mechanism and reliable electrical contacts ensure that the SD card remains securely in place during operation, reducing the likelihood of accidental disconnection or damage due to vibration or movement.

In summary, the SD Holder Connector delivers exceptional functionality, durability, and versatility. With options for 8, 9, or 11 pins, it caters to various device requirements and SD card types. Its wide operating temperature range of -40°C to 90°C guarantees robust performance in diverse environments, while the carefully designed card insertion force of 30-50N provides a secure yet user-friendly experience. The use of phosphor bronze contact material combined with gold plating ensures long-lasting, high-quality electrical connections essential for reliable data transfer. Whether you are integrating a Secure Digital Card Slot into a new device or upgrading an existing system, this SD Card Socket Connector and SD Card Reader Connector is a dependable choice that meets the highest standards of quality and performance.

Features:

• Product Name: Secure Digital Holder Connector
• Contact Material: Copper Alloy (t=0.15mm) for reliable conductivity
• Spring Type: SWP ensuring stable card retention
• Card Insertion Force: 30-50N for optimal balance between ease of use and secure fit
• Connector Type: SD Card Slot, compatible with standard SD cards
• Cover Material: Brass with Nickel Plating for enhanced durability and corrosion resistance
• Also known as SD Memory Slot Connector and Secure Digital Card Slot

Technical Parameters:

Applications:

The LP SD Holder Connector, model LP-SD021, is a high-quality Secure Digital Card Slot designed and manufactured in China, adhering to the ISO-9001:2000 certification standards. This SD Memory Slot Connector is ideal for various applications requiring reliable and durable SD memory card connections. Its robust construction with copper alloy terminals and precise plating—tin/lead 100u" at the solder tail contact area and gold plating 10u"—ensures excellent conductivity and corrosion resistance, making it suitable for long-term use in demanding environments.

This SD Memory Card Holder offers card retention force ranging from 10 to 20 Newtons, providing a secure and stable connection for SD cards with 8, 9, or 11 pins configurations. Such versatility allows it to be used in multiple device types, including digital cameras, portable media players, handheld gaming consoles, and other consumer electronics that require efficient and reliable SD card integration.

Thanks to its compliance with RoHS and REACH environmental standards, the LP-SD021 SD Memory Slot Connector is an excellent choice for manufacturers committed to sustainability and environmental responsibility. Its packaging options—Reel, Tube, or Tray—offer flexibility for mass production lines or small batch orders, with a minimum order quantity of 1000 pieces. With a supply ability of 100,000 pieces and a competitive price point of 0.0003 per unit, this connector is well-suited for large-scale manufacturing requirements.

The LP SD Holder Connector finds application across a wide range of scenarios, including consumer electronics, automotive infotainment systems, industrial equipment, and portable data storage devices. Its fast delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C make it a reliable component to integrate into various production schedules and business models.

In summary, the LP-SD021 Secure Digital Card Slot is a dependable SD Memory Slot Connector that provides excellent performance, environmental compliance, and cost efficiency. Whether you are designing compact electronic gadgets, upgrading existing devices, or manufacturing new product lines, this SD Memory Card Holder delivers the quality and reliability required for modern digital storage solutions.

Customization:

Our LP brand Secure Digital Card Connector, model number LP-SD021, is designed and manufactured in China with ISO-9001:2000 certification, ensuring high quality and reliability. We offer product customization services for this SD Memory Card Holder to meet your specific requirements.

The LP-SD021 SD Card Holder Assembly features a durable housing made of high temperature plastic UL 94V-0, providing excellent insulation resistance of 1000 MΩ minimum. It includes a card detect switch and uses a reliable SWP spring mechanism, making it ideal for applications in embedded systems and consumer electronics.

We support minimum order quantities starting at 1000PCS, with a competitive price of 0.0003 per unit. Packaging options include reel, tube, and tray to suit your logistics needs. Our supply ability can reach up to 100000PCS, and we ensure a prompt delivery time of 7 to 10 days.

Payment terms are flexible, accepting T/T, Western Union, and L/C. Customize your Secure Digital Card Connector with us to get a tailored SD Memory Card Holder solution that fits your application perfectly.

Support and Services:

Our SD Holder Connector product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, troubleshooting manuals, and maintenance instructions to help you get the most out of your connector.

Our technical support team is available to assist with any product-related inquiries, including compatibility questions, installation assistance, and operational guidance. We also offer firmware updates and software tools when applicable to maintain and enhance product functionality.

For service needs, we provide repair and replacement options under warranty terms. Our quality assurance process guarantees that each SD Holder Connector meets rigorous industry standards before delivery.

Additionally, customized solutions and consulting services are available for specialized applications or unique project requirements. We are committed to delivering reliable support and services to maximize the value and longevity of your SD Holder Connector.

Packing and Shipping:

Product Packaging:

The SD Holder Connector is securely packaged in a sturdy, anti-static box to protect it from damage during transportation. Each unit is individually wrapped in a protective film to prevent scratches and dust accumulation. The packaging includes a user manual and installation guide to ensure easy and correct usage.

Shipping:

We offer worldwide shipping with reliable carriers to ensure timely delivery. All orders are processed within 1-2 business days. The SD Holder Connector is shipped with tracking information provided for every order. Careful handling is ensured to maintain product integrity during transit.
