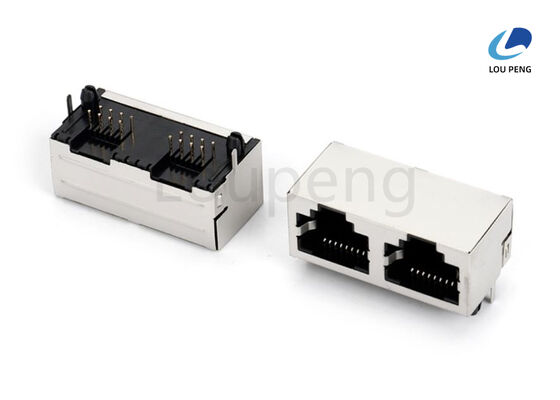

125 VAC RMS Voltage Rating RJ45 Ethernet Plug Gold Plated Contact Ideal for Network Cable Assembly and Data Transmission

Product Description:

The RJ45 / LAN Connector is a high-quality Local Area Network Connector designed to provide reliable and efficient connectivity for Ethernet applications. This connector is engineered to meet the demanding requirements of modern networking environments, ensuring stable data transmission and durable performance. It is widely recognized as an essential component in networking hardware, serving as the interface for Ethernet cables in various devices such as routers, switches, and computers.

One of the key features of this RJ45 Network Socket is its robust construction, which includes contacts made from phosphor bronze with a thickness of 0.35mm. Phosphor bronze is known for its excellent electrical conductivity and corrosion resistance, making it an ideal material for maintaining signal integrity over extended periods. This ensures that the Ethernet Network Connector delivers consistent, low-resistance connections that support high-speed data transfer.

The connector is also equipped with an iron alloy shield, measuring 0.2mm in thickness and finished with a 30-micron coating. This shielding plays a crucial role in protecting the connector from electromagnetic interference (EMI) and radio frequency interference (RFI), which can degrade network performance. The high-quality finish enhances durability and prevents corrosion, extending the lifespan of the connector even in challenging environmental conditions.

In terms of electrical specifications, the RJ45 / LAN Connector has a voltage rating of 125 VAC RMS, ensuring it can safely handle the power requirements typical in networking equipment. This rating guarantees that the connector can operate reliably without risk of electrical failure or safety hazards, making it suitable for both residential and commercial network installations.

The connector offers versatility with its availability in two configurations based on the number of positions: 8 and 6 positions. The 8-position variant is standard for most Ethernet connections, supporting the full eight wires used in typical RJ45 cables for 10/100/1000 Mbps network speeds. The 6-position version is suitable for applications requiring fewer contacts, providing flexibility for different networking setups and devices.

Another important attribute of this Local Area Network Connector is its mating and unmating force. It features a maximum mating force of 30 Newtons (equivalent to approximately 3.06 kilograms-force), which ensures a secure connection when plugging in Ethernet cables. The controlled force prevents damage to the connector and cable while maintaining a firm grip that resists accidental disconnections. This balance of ease of use and connection stability is essential for maintaining network uptime and reliability.

Overall, this RJ45 / LAN Connector is an excellent choice for anyone looking to establish or maintain a high-performance Ethernet network. Its combination of durable materials, reliable electrical specifications, and practical design features makes it a dependable Ethernet Network Connector suitable for a wide range of networking applications. Whether you are setting up a new Local Area Network or upgrading existing infrastructure, this RJ45 Network Socket delivers the performance and longevity required for modern network systems.

Features:

• Product Name: RJ45 / LAN Connector
• Type: Ethernet Connector Plug
• Shell Material: Brass with thickness of 0.15 / 0.2 mm
• Number of Contacts: 8 or 6
• Contact Plating: Gold Plated for enhanced conductivity and corrosion resistance
• Cable Compatibility: Supports Cat5e, Cat6, Cat6a, and Cat7 cables
• Guarantee Period: 12 Months
• Also known as RJ45 Modular Jack for Ethernet connections

Technical Parameters:

Applications:

The LP-RJ044, manufactured by LP in China, is a high-quality RJ45 Modular Jack designed to meet the rigorous demands of modern networking environments. With ISO-9001:2000 certification, this Ethernet Connector Plug guarantees reliable performance and durability, making it an ideal choice for various application occasions and scenarios.

This Ethernet Port Connector is extensively used in commercial and residential networking installations, providing seamless and stable data transmission for internet connectivity. Its gold-plated contact plating ensures excellent conductivity and corrosion resistance, which is essential for maintaining signal integrity in high-speed Ethernet networks.

In enterprise settings, the LP-RJ044 RJ45 Modular Jack is commonly integrated into network switches, routers, and patch panels, enabling robust wired connections for servers, workstations, and communication devices. Its operating temperature range of -40°C to +85°C allows it to function reliably in diverse environments, from climate-controlled offices to industrial facilities with fluctuating temperatures.

The LP-RJ044 is also suitable for use in data centers, where high-density and reliable Ethernet Port Connectors are necessary to support large volumes of data traffic. The housing material, made from LCP, PBT, or PA46 with UL 94V-0 flammability rating, ensures that the connector meets safety and durability standards required in critical infrastructure.

For telecommunications and networking equipment manufacturers, the LP-RJ044 Ethernet Connector Plug offers easy integration due to its standardized design and packaging options such as reels and trays, facilitating automated assembly processes. With a supply ability of 100,000 pieces and a minimum order quantity of 1000PCS, it suits both small and large-scale production requirements.

Additionally, the connector’s phosphor bronze contacts with a thickness of 0.35mm provide excellent mechanical strength and electrical performance, making it suitable for repeated plugging and unplugging in environments such as IT workstations, classrooms, and conference rooms.

With a competitive price of 0.003 per piece and flexible payment terms including T/T, Western Union, and L/C, the LP-RJ044 offers cost-effective solutions for businesses and integrators looking for dependable Ethernet Port Connectors. The delivery time of 7 to 10 days ensures timely supply for urgent projects or ongoing manufacturing needs.

In summary, the LP-RJ044 RJ45 Modular Jack is perfect for a wide range of application occasions and scenarios including office networking, data centers, telecommunications equipment, industrial networking setups, and residential internet connections. Its robust construction, reliable performance, and compliance with international standards make it an indispensable component in modern Ethernet infrastructure.

Customization:

Introducing the LP brand RJ45 / LAN Connector, model number LP-RJ044, a high-quality Local Area Network Connector designed to meet rigorous industry standards. Manufactured in China and certified under ISO-9001:2000, this LAN Cable Connector ensures reliable performance and durability for various networking applications.

Our RJ45 Ethernet Plug complies with TIA/EIA-568 and IEEE 802.3 standards, guaranteeing compatibility and optimal data transmission speeds. The connector supports mounting types including Through Hole, Surface Mount, and SMT, providing flexibility for different assembly processes.

With a dielectric strength of 1000 V AC or 1500 V DC RMS at 0.5mA 50 Hz / 60 Hz for 1 minute, and an infrared temperature tolerance of 260 ± 5°C for 5 to 10 seconds, the LP-RJ037 is built to endure demanding electrical conditions. Additionally, it is designed to operate within a storage temperature range of -40°C to +85°C with relative humidity below 80%, ensuring stability in diverse environments.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.003 per unit. Packaging options include Reel or Tray, tailored to suit your inventory and assembly needs. Our supply ability reaches up to 100,000PCS, with a delivery time frame of 7 to 10 days.

Payment terms are flexible, accepting T/T, Western Union, and L/C to facilitate smooth transactions. Choose the LP-RJ044 RJ45 Ethernet Plug for a dependable and customizable LAN Cable Connector solution that enhances your network connectivity.

Support and Services:

For technical support and services related to the RJ45 / LAN Connector, please ensure that you have the product model number and purchase details ready. Our support team is equipped to assist with installation guidance, troubleshooting, compatibility questions, and warranty services. We recommend consulting the product manual for detailed specifications and usage instructions. If you encounter any issues, please refer to our online resources including FAQs, technical datasheets, and user guides available on our website. For repair or replacement services, verify the warranty status of your product and follow the return process as outlined in the warranty policy. Our goal is to provide prompt and effective support to ensure optimal performance of your RJ45 / LAN Connector.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective anti-static bag to prevent damage during handling and transportation.

The connectors are then securely placed in sturdy cardboard boxes with cushioning materials to ensure they remain intact and free from dust and moisture.

For bulk orders, multiple boxes are consolidated into larger cartons, which are labeled clearly with product information and handling instructions.

All shipments are carefully inspected before dispatch to guarantee product quality and accuracy of the order.

We offer various shipping options including standard, expedited, and freight services to accommodate delivery needs worldwide.

Tracking information is provided once the order has been shipped, allowing customers to monitor their shipment until it arrives safely.
