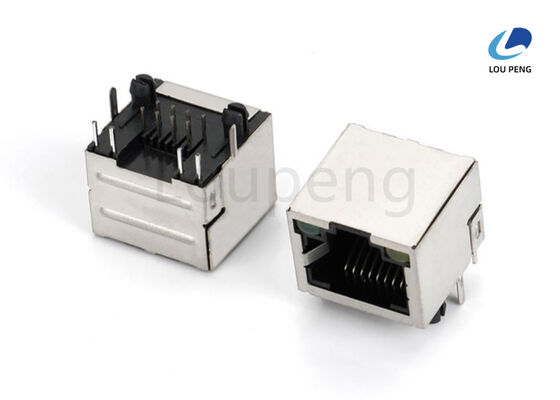

Plated Nickel 30-50U Network Interface Connector Built with LCP PBT PA46 Black Housing Providing Stable Data Transmission

Product Description:

The RJ45 / LAN Connector is a versatile and reliable component designed for high-performance networking applications. This connector is widely used in various electronic devices to establish stable and efficient Ethernet connections, making it an essential part of modern communication systems. Whether you require a connection for data transfer, internet access, or local area network (LAN) setups, the RJ45 Ethernet Plug and RJ45 Modular Jack options offer exceptional performance and durability to meet your needs.

One of the key features of this RJ45 / LAN Connector product is its flexible mounting types. It supports Through Hole, Surface Mount, and SMT (Surface Mount Technology) mounting methods, providing compatibility with a broad range of circuit board designs. Through Hole mounting offers robust mechanical strength, ideal for applications subject to mechanical stress. Surface Mount and SMT options enable compact, space-saving designs, perfect for modern, miniaturized electronic devices. This flexibility allows designers to select the most suitable mounting technique to optimize their device’s layout and functionality.

The connector is available with both shielded and unshielded versions, accommodating different environmental and electromagnetic interference (EMI) requirements. The shielded RJ45 Modular Jack option is designed to minimize EMI and crosstalk, ensuring signal integrity in noisy environments. This is particularly important in industrial or high-frequency communication systems where maintaining data accuracy is critical. On the other hand, the unshielded versions provide cost-effective solutions for less demanding applications where EMI is not a significant concern.

Contact reliability and conductivity are paramount in network connectors, and this product excels in that regard. It features gold-plated contacts, which not only enhance conductivity but also provide excellent corrosion resistance. The gold plating ensures a consistent, low-resistance connection, reducing the risk of signal degradation over time. This is crucial for maintaining high-speed data transmissions and preventing network interruptions, especially in professional and industrial networking scenarios.

The RJ45 / LAN Connector is designed with a high retention strength to ensure secure and stable connections. It boasts a retention strength of 50N or 30N minimum for 60 seconds ± 5 seconds, depending on the specific model. This impressive retention capability guarantees that the connector remains firmly attached under mechanical stress, vibration, or repeated insertion and removal cycles. Such durability is vital in environments where connectors are frequently handled or where devices are subject to movement.

This connector is offered with multiple position options, including 8-position and 6-position configurations. The 8-position RJ45 Ethernet Plug and Modular Jack are the most common types used for standard Ethernet cables, supporting all eight conductors necessary for full network functionality. The 6-position variant is suitable for applications that require fewer conductors, such as certain telephony or specialized data transmission systems. This range of position options allows for versatile usage across different networking setups and device requirements.

The LAN RJ45 Interface provided by this connector ensures compatibility with a wide array of networking equipment, including routers, switches, computers, and other communication devices. Its robust design and high-quality materials guarantee long-lasting performance, making it ideal for both residential and commercial networking solutions. Whether you are designing a new product or upgrading an existing system, this RJ45 / LAN Connector offers the reliability and flexibility needed for efficient Ethernet connectivity.

In summary, the RJ45 / LAN Connector is a high-quality, adaptable component designed to meet the diverse needs of modern networking applications. Featuring multiple mounting types (Through Hole, Surface Mount, SMT), gold-plated contacts, shielded and unshielded options, and strong retention strength, it provides dependable and efficient connectivity. Available in both 8-position and 6-position configurations, this connector is an excellent choice for ensuring stable, high-speed Ethernet connections in any environment. Its compatibility with the RJ45 Ethernet Plug, RJ45 Modular Jack, and LAN RJ45 Interface standards makes it an indispensable part of any professional or consumer network setup.

Features:

• Product Name: RJ45 / LAN Connector
• RJ45 Modular Jack with LAN RJ45 Interface
• Operating Temperature Range: -40°C to +85°C
• Contact Resistance: 20 / 30mΩ Max.
• Plating: Gold plating over nickel, plated nickel 30-50μ
• Mounting Type: Through Hole / Surface Mount / SMT
• Current Rating: 1.5 AMP
• Reliable RJ45 Modular Jack suitable for various LAN applications

Technical Parameters:

This Local Area Network Connector, also known as an RJ45 Network Socket, is designed to provide reliable connections for various networking applications.

Applications:

The LP-RJ040 RJ45 / LAN Connector, manufactured by LP in China, is a high-quality Ethernet Port Connector designed for diverse networking applications. Certified under ISO-9001:2000 standards, this product ensures superior reliability and performance in both residential and commercial networking environments. With a minimum order quantity of 1000PCS and a competitive price of 0.003 per unit, it offers excellent value for bulk procurement. The connectors come packaged in reel or tray formats, facilitating easy handling and efficient installation processes. Delivery is prompt, typically within 7 to 10 days, and multiple payment options such as T/T, Western Union, and L/C are accepted, making transactions convenient and flexible.

The LP-RJ040 is engineered with robust materials including LCP, PBT, and PA46 housing in black, compliant with UL 94V-0 flame retardant standards. It is available in shielded and unshielded options, catering to different levels of electromagnetic interference protection depending on the installation environment. The connector plating consists of gold plating over nickel or plated nickel with a thickness of 30-50 microns, ensuring excellent conductivity and corrosion resistance. Its dielectric strength is rated at 1000 V AC or 1500 V DC RMS at 0.5mA for 1 minute at 50 Hz / 60 Hz, providing outstanding electrical insulation and safety. Additionally, it withstands an IR temperature of 260 ± 5°C for 5 to 10 seconds, confirming its durability during soldering and assembly.

In practical scenarios, the LP-RJ040 RJ45 Modular Jack is widely used in Ethernet Network Connector applications such as home routers, switches, modems, and network interface cards. It is ideal for office environments where stable and fast Ethernet connections are critical for daily operations and data transfer. Moreover, it is suitable for industrial automation systems that demand robust networking connectors capable of withstanding harsh conditions. Data centers and telecom equipment also benefit from its high supply ability of 100,000PCS, ensuring availability for large-scale deployments.

Whether for setting up a new local area network, upgrading existing infrastructure, or manufacturing network-enabled devices, the LP-RJ040 Ethernet Port Connector delivers dependable connectivity and longevity. Its versatile design and compliance with international quality standards make it a preferred choice for network engineers, manufacturers, and IT professionals seeking reliable RJ45 Modular Jacks and Ethernet Network Connectors.

Customization:

Introducing the LP-RJ040 RJ45 Ethernet Plug, a high-quality Network Interface Connector designed for reliable and efficient Ethernet connections. Manufactured in China under ISO-9001:2000 certification, this Ethernet Network Connector ensures superior performance and durability.

The LP-RJ040 features a plastic (polycarbonate) housing material and gold-plated contacts with gold plating over nickel, providing excellent conductivity and corrosion resistance. The plated nickel thickness ranges from 30 to 50 microns, guaranteeing long-lasting connections with an insertion life of up to 750 cycles.

This product supports a voltage rating of 125 VAC RMS and is available with packaging options including reel and tray. With a minimum order quantity of 1000PCS and a competitive price of $0.003 per unit, the LP-RJ040 is ideal for large-scale deployments.

We offer flexible payment terms including T/T, Western Union, and L/C, with a supply ability of 100,000PCS and a delivery time of 7 to 10 days. Customize your RJ45 Ethernet Plug to meet your specific requirements and enjoy reliable Ethernet network connectivity with the LP-RJ040 Ethernet Network Connector.

Support and Services:

For technical support and services related to the RJ45 / LAN Connector, please refer to the product manual and installation guidelines provided with your purchase. Our support team is available to assist with troubleshooting, compatibility questions, and installation advice to ensure optimal performance of your network connections.

We offer comprehensive warranty coverage and repair services for genuine RJ45 / LAN Connectors. In case of product defects or failures, please follow the warranty claim procedures outlined in the documentation.

Additional resources such as FAQs, technical datasheets, and software drivers can be accessed through our official website to support your use of the RJ45 / LAN Connector.

For advanced technical inquiries or customized solutions, our engineering support staff is ready to provide expert assistance to meet your specific networking requirements.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective anti-static bag to prevent damage during handling and transportation.

The connectors are then placed in sturdy cardboard boxes with adequate cushioning materials to ensure they remain secure and undamaged.

For bulk orders, multiple boxes are consolidated into larger cartons, which are clearly labeled with product information and handling instructions.

All packages are sealed securely and inspected for quality assurance before shipping.

Shipping options include standard, expedited, and freight services to accommodate customer needs, with tracking information provided upon dispatch.

We ensure that all shipments comply with relevant international shipping regulations to guarantee timely and safe delivery.
