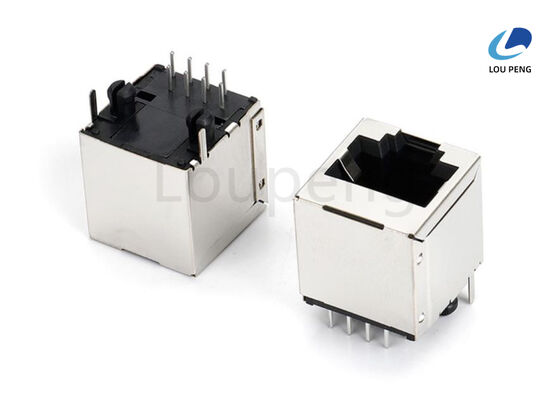

Cat7 Compatible RJ45 LAN Connector with Insulation Resistance 500 Megaohms Minimum at 500V DC and Operating Life 750 Cycles Minimum

Product Description:

The RJ45 / LAN Connector is an essential component designed for reliable and high-performance network connectivity. This product is widely used in various networking applications, providing a robust and durable interface for Ethernet communication. Specifically engineered to meet stringent quality standards, the RJ45 Network Socket ensures seamless data transmission in both commercial and industrial environments.

One of the standout features of this RJ45 Ethernet Plug is its carefully constructed shielding system. The shield is made from high-quality iron alloy with a thickness of 0.2mm, which is then finished with a 30-micron coating to enhance corrosion resistance and durability. This shielding not only protects the internal contacts from electromagnetic interference but also ensures stable signal integrity, making it ideal for environments with high electrical noise.

The housing of this Ethernet Port Connector is manufactured using a blend of LCP (Liquid Crystal Polymer), PBT (Polybutylene Terephthalate), and PA46 (Polyamide 46) materials, all in a sleek black finish. These materials conform to UL 94V-0 flammability standards, ensuring that the connector is flame-retardant and safe for use in various electronic devices. The robust housing offers excellent mechanical strength and thermal stability, contributing to the connector’s long service life and consistent performance under demanding conditions.

Durability is a critical factor in networking components, and the RJ45 / LAN Connector excels in this area with an operating life rated at a minimum of 750 cycles. This means it can withstand repeated plugging and unplugging without degradation in performance, making it highly reliable for applications where frequent connections are necessary. Such longevity reduces maintenance costs and downtime, providing users with a dependable solution for their networking needs.

The contact pins within the RJ45 Ethernet Plug are crafted from phosphor bronze with a thickness of 0.35mm. Phosphor bronze is known for its excellent conductivity, corrosion resistance, and mechanical resilience, ensuring that the electrical connections remain stable and efficient over time. This material choice guarantees low contact resistance, which is crucial for maintaining high-speed data transfer rates and reducing signal loss.

In addition to the shielding and contacts, the connector’s shell is constructed from brass with thicknesses ranging from 0.15mm to 0.2mm. Brass offers superior strength and corrosion resistance, providing a sturdy exterior that protects the internal components from physical damage and environmental factors. The combination of brass shell and iron alloy shield creates a robust enclosure that enhances the overall reliability and longevity of the Ethernet Port Connector.

Designed to meet the demands of modern networking equipment, this RJ45 Network Socket is compatible with a wide range of devices requiring Ethernet connectivity. Whether used in routers, switches, computers, or industrial machinery, this connector delivers consistent performance and ease of installation. Its design supports standard RJ45 interfaces, making it a versatile choice for upgrading or repairing Ethernet ports.

In summary, the RJ45 / LAN Connector is a high-quality Ethernet Port Connector that combines durable materials, excellent shielding, and precise engineering to provide a reliable RJ45 Ethernet Plug solution. With a robust iron alloy shield finished to 30 microns, flame-retardant housing made from LCP, PBT, and PA46, phosphor bronze contacts for superior conductivity, and a sturdy brass shell, this connector is built to last and perform under various conditions. Its long operating life of at least 750 cycles ensures that it can handle frequent use without compromising connection quality, making it an ideal choice for both commercial and industrial networking applications.

Features:

• Product Name: RJ45 / LAN Connector
• LAN RJ45 Interface for reliable network connections
• Network Interface Connector designed for Ethernet applications
• Ethernet Network Connector supporting high-speed data transfer
• Dielectric Strength: 1000 V AC or 1500 V DC RMS at 0.5mA 50 Hz / 60 Hz for 1 minute
• Operating Life: Minimum 750 cycles
• Current Rating: 1.5 AMP
• Number of Contacts: 8 or 6
• Guarantee Period: 12 months

Technical Parameters:

Applications:

The LP-RJ041, an Ethernet Network Connector manufactured in China, is a high-quality RJ45 / LAN Connector designed to meet the rigorous demands of modern networking environments. Certified under ISO-9001:2000, this product ensures reliability and superior performance, making it an ideal choice for various application occasions and scenarios. With a minimum order quantity of 1000PCS and a competitive price of 0.003 per unit, the LP-RJ041 is suited for bulk procurement by manufacturers and network solution providers.

This Local Area Network Connector is compatible with a wide range of cables, including Cat5e, Cat6, Cat6a, and Cat7, making it versatile for use in different Ethernet infrastructures. The plastic (polycarbonate) housing material offers durability and protection, while the black color provides a professional and sleek appearance suitable for both residential and commercial installations.

The LP-RJ041 Ethernet Connector Plug is perfect for networking applications in offices, data centers, telecommunications, and industrial environments where stable, high-speed data transmission is critical. Its insertion life of 750 cycles assures long-term usability, reducing maintenance and replacement costs. The connector undergoes rigorous testing, including a 48-hour furnace test with a force range of 6.2kg to 7.2kg, ensuring robustness under demanding conditions.

Packaging options such as reel and tray facilitate convenient handling and integration into automated assembly lines, supporting efficient production and installation processes. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP guarantees timely fulfillment of orders. Payment terms including T/T, Western Union, and L/C offer flexibility to global customers.

The LP-RJ041 Ethernet Network Connector is widely used in networking equipment manufacturing, internet service provider setups, smart home systems, and enterprise network installations. Its reliable performance in connecting Ethernet cables ensures seamless data flow, essential for applications like video conferencing, online gaming, VoIP, and cloud computing. In summary, this Ethernet Connector Plug by LP is designed to deliver consistent connectivity and durability, making it a dependable choice for any Local Area Network Connector requirement.

Customization:

Introducing the LP brand RJ45 / LAN Connector, model number LP-RJ041, proudly made in China. This Ethernet Network Connector is designed to provide reliable and efficient connectivity for your networking needs.

Certified with ISO-9001:2000, our LAN RJ45 Interface ensures high quality and durability. The connector features a mating/unmating force of 30N/3.06KGf max and retention strength of 50N or 30N minimum for 60 seconds ±5 seconds, guaranteeing secure and stable connections.

The RJ45 Modular Jack comes in a sleek black color and supports a voltage rating of 125 VAC RMS. It is plated with gold over nickel, with nickel plating thickness between 30-50μ, enhancing corrosion resistance and signal integrity.

We offer flexible packaging options including reel and tray packaging, suitable for various assembly requirements. The minimum order quantity is 1000PCS, priced competitively at 0.003 per piece.

With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, we ensure prompt fulfillment of your orders. Payment terms include T/T, Western Union, and L/C for your convenience.

Choose the LP-RJ041 RJ45 / LAN Connector for your next project and experience superior performance and reliability in Ethernet Network Connector solutions.

Support and Services:

Our RJ45 / LAN Connectors are designed to provide reliable and high-speed network connections for a wide range of applications. To ensure optimal performance, please follow the installation guidelines carefully and use compatible cables and devices.

If you encounter any issues with your RJ45 / LAN Connector, please verify that all connections are secure and that the cables are not damaged. Proper grounding and shielding are essential to prevent interference and maintain signal integrity.

For maintenance, regularly inspect the connectors for signs of wear or corrosion. Clean the contacts with a soft, dry cloth if necessary. Avoid using harsh chemicals or abrasive materials that could damage the connector.

We offer comprehensive technical support to assist you with installation, troubleshooting, and product selection. Our team is knowledgeable about networking standards and can help ensure your setup meets your requirements.

Additionally, we provide customized solutions and bulk order services for large-scale projects. Please refer to our product documentation for detailed specifications, compatibility information, and safety instructions.

Thank you for choosing our RJ45 / LAN Connectors for your networking needs. We are committed to delivering quality products and excellent customer service to support your success.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective blister pack to ensure it remains secure and free from damage during transit. The packaging includes a clear label with product specifications and compatibility information for easy identification.

For bulk orders, connectors are packed in sturdy, anti-static bags or boxes with sufficient padding to prevent movement and impact. All packages are sealed and labeled with handling instructions to ensure safe delivery.

Shipping is carried out using reliable carriers with tracking options available. We ensure that all shipments are handled with care and delivered promptly to meet customer requirements.
