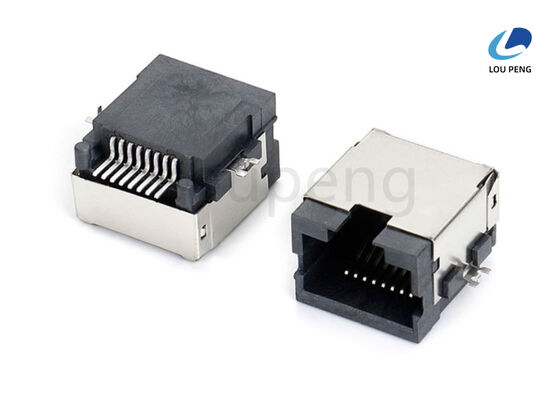

TIA EIA 568 Standard RJ45 LAN Connector Gold Plated Over Nickel Plastic Polycarbonate Housing Ethernet Network Connector

Product Description:

The RJ45 / LAN Connector is a high-quality Local Area Network Connector designed to provide reliable and efficient connectivity for various networking applications. Engineered with precision and durability in mind, this connector is an essential component for establishing stable and high-speed data transmission in Local Area Networks (LAN). Its robust construction and superior materials ensure optimal performance, making it an ideal choice for both commercial and industrial networking environments.

One of the standout features of this LAN RJ45 Interface is its shell, which is made from brass with a thickness of 0.15 to 0.2 millimeters. The brass shell offers excellent mechanical strength and corrosion resistance, which enhances the longevity and durability of the connector. This sturdy shell is crucial for maintaining the integrity of the connection in environments where physical wear and environmental factors could otherwise degrade performance.

At the core of the connector’s design is the contact material, which is crafted from phosphor bronze with a thickness of 0.35 millimeters. Phosphor bronze is known for its excellent conductivity and resistance to fatigue and corrosion, making it an optimal choice for the contact points within the Network Interface Connector. This ensures that data signals are transmitted with minimal loss or interference, contributing to the overall reliability of network connections.

In terms of thermal performance, the RJ45 / LAN Connector is rated for an infrared (IR) temperature of 260 ± 5°C for a duration of 5 to 10 seconds. This specification indicates the connector’s ability to withstand the heat generated during soldering processes without compromising its structural or electrical properties. Such thermal resilience is critical for ensuring consistent manufacturing quality and preventing damage during installation.

Another important mechanical specification of this LAN RJ45 Interface is the mating and unmating force, which is rated at a maximum of 30 Newtons (approximately 3.06 kilogram-force). This force rating ensures that the connector can be securely connected and disconnected without excessive effort, while also preventing accidental disconnections. The balance of secure physical engagement and ease of use is vital for maintaining network stability and user convenience.

Designed specifically for LAN networking applications, this Network Interface Connector supports a wide range of network setups, including Ethernet connections in office buildings, data centers, and industrial facilities. Its compatibility with standard RJ45 interfaces makes it versatile and widely applicable, enabling seamless integration with existing networking hardware.

Overall, the RJ45 / LAN Connector combines durable materials, precise engineering, and stringent quality standards to deliver a reliable and efficient Local Area Network Connector solution. Whether deployed in enterprise networking environments or specialized industrial applications, this connector ensures robust and consistent network connectivity. Its brass shell and phosphor bronze contacts provide excellent electrical and mechanical performance, while its thermal and force ratings guarantee durability and ease of use.

In summary, for anyone looking to establish or maintain high-quality network connections, this LAN RJ45 Interface stands out as a dependable Network Interface Connector that meets the demanding requirements of modern networking infrastructures. Its combination of material strength, thermal resistance, and mechanical integrity makes it a preferred choice for professionals seeking long-lasting and reliable LAN connectivity.

Features:

• Product Name: RJ45 / LAN Connector
• Type: RJ45 Ethernet Plug, Ethernet Network Connector
• Before furnace weight: 6.5kg~7.5kg
• Housing Material: Plastic (Polycarbonate)
• Housing Composition: LCP / PBT / PA46, Black, UL 94V-0 rated
• Contact Resistance: 20 / 30mΩ max
• Insulation Resistance: 500 / 1000MΩ min. at 500V DC
• Reliable RJ45 Ethernet Plug for stable network connections

Technical Parameters:

Applications:

The LP-RJ037 LAN Cable Connector, manufactured by the reputable brand LP, is a high-quality RJ45 Modular Jack designed to meet diverse networking needs. Originating from China and certified under ISO-9001:2000 standards, this product guarantees reliability and consistent performance in various applications. With a competitive price of 0.003 USD per piece and a minimum order quantity of 1000PCS, the LP-RJ037 offers an excellent balance of affordability and quality for bulk purchasers.

This Ethernet Port Connector is suitable for a wide range of application occasions and scenarios. It is widely used in computer networking, telecommunications, and data communication systems where stable and secure connections are critical. The connector supports both shielded and unshielded options, making it adaptable to environments with varying electromagnetic interference levels. Its contact material, phosphor bronze with a thickness of 0.35mm, ensures durability and excellent electrical conductivity.

Thanks to its versatile mounting types—including Through Hole, Surface Mount, and SMT—the LP-RJ037 can be integrated into different device designs, from desktop computers and routers to industrial networking equipment. Its operating temperature range of -40°C to +85°C makes it suitable for both indoor and outdoor installations, including harsh environments that demand robust components.

Packaging is available in Reel or Tray formats, facilitating automated assembly processes and efficient inventory management. The LP-RJ037 LAN Cable Connector is ideal for manufacturers and assembly lines requiring rapid delivery, as the product offers a supply ability of up to 100,000PCS with a delivery time of 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C, accommodating various business preferences.

In summary, the LP-RJ037 Ethernet Port Connector is an excellent choice for anyone seeking a dependable RJ45 Modular Jack for networking products. Its quality construction, versatile mounting options, and compliance with international certifications ensure it can perform reliably across numerous networking applications, including enterprise LAN setups, data centers, and telecommunications infrastructure.

Customization:

Our LP brand RJ45 / LAN Connector, model number LP-RJ037, offers exceptional product customization services to meet your specific requirements. Manufactured in China and certified with ISO-9001:2000, this RJ45 Ethernet Plug ensures high quality and reliability for your networking needs.

We provide customization options including plating with gold plating over nickel or plated nickel ranging from 30-50U, ensuring durability and excellent conductivity. The connector shell is made from brass with thickness options of 0.15mm or 0.2mm, designed to withstand mating/unmating forces up to 30N/3.06KGf max and retention strength of 50N or 30N minimum for 60 seconds ±5 seconds.

Our Ethernet Connector Plug operates efficiently within a storage temperature range of -40°C to +85°C and relative humidity below 80%, making it suitable for various environments. Packaging options include reel or tray to suit your handling preferences.

The minimum order quantity is 1000PCS, with a competitive price of $0.003 per unit. We ensure a fast delivery time of 7 to 10 days and support flexible payment terms such as T/T, Western Union, and L/C. Our supply ability reaches up to 100,000PCS to accommodate large volume orders.

Choose our Ethernet Connector Plug for your networking solutions and benefit from high-quality, customizable RJ45 Ethernet Plug products tailored to your needs.

Support and Services:

Our RJ45 / LAN Connector product is designed to provide reliable and high-speed network connectivity for various applications. For technical support, please ensure that your installation follows the recommended wiring standards and that the connector is compatible with your networking equipment.

If you encounter any issues with the RJ45 / LAN Connector, verify the cable integrity, check for proper termination, and confirm that the connector pins are not damaged or bent. Proper grounding and shielding are also essential to prevent signal interference.

We offer comprehensive services including product troubleshooting, replacement options for defective units under warranty, and guidance on best practices for network setup and maintenance.

For detailed installation instructions, firmware updates, or to access our knowledge base, please refer to the documentation provided with the product or visit our official support website.

Our technical support team is committed to assisting you with any inquiries related to the performance and installation of the RJ45 / LAN Connector to ensure optimal network performance.

Packing and Shipping:

Each RJ45 / LAN Connector is individually packaged in a protective plastic bag to prevent dust and damage during transit.

The connectors are then securely placed in a sturdy cardboard box with adequate padding to ensure they remain intact and free from scratches.

For bulk orders, multiple boxes are consolidated into a larger shipping carton, which is reinforced to withstand handling and shipping conditions.

All packages are clearly labeled with product information, quantity, and handling instructions to facilitate easy identification and safe delivery.

We offer various shipping options, including standard and expedited services, to meet your delivery requirements.
