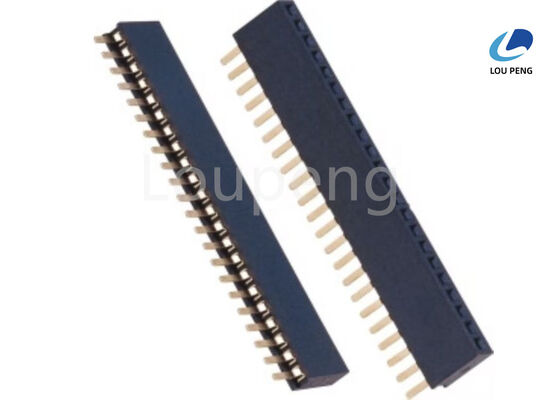

Standard PA6T Female Pin Header Connector Featuring Withstanding Voltage AC 500V Ideal for Electronic Circuit Board Connections and Industrial

Product Description:

The Female Header Connector is a versatile and reliable component widely used in electronic assemblies and circuit board connections. Designed to accommodate a broad range of pin configurations, this connector is available with pins ranging from 2 to 40, making it suitable for various applications that require secure and efficient electrical connections. Whether you need a compact 2-pin connector or a more extensive 40-pin setup, this product offers flexibility to meet your design requirements.

One of the key features of the Female Pin Header Connector is its variety of plastics height options. The connector comes in multiple heights, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm. This range allows designers to select the optimal height for their specific application, ensuring proper mating with male headers and maintaining the overall compactness or clearance needed in their device layouts. The multiple height options also enable compatibility with different component types and board thicknesses.

Constructed with high-quality polyester insulator material rated UL94V-0, the Female Header Socket Connector ensures excellent flame retardancy and durability. The use of polyester as the insulator material guarantees reliable electrical insulation and mechanical stability even under demanding conditions. This robust insulation helps prevent short circuits and enhances the longevity of the connector in various operating environments.

The contacts of the Female Connector Header Pin are plated with either gold (Au) or tin (Sn) over a thickness of 40 microinches (40n), providing superior corrosion resistance and excellent conductivity. Gold plating is especially beneficial for applications requiring low contact resistance and high reliability, while tin plating offers a cost-effective alternative with good solderability and protection against oxidation. This plating ensures that the connector maintains consistent electrical performance over time, even when subjected to frequent mating cycles.

Designed to operate reliably across a wide temperature range, the Female Pin Header Connector can withstand working temperatures from -40 ℃ to +105 ℃. This makes it suitable for use in a variety of industries, including automotive, industrial control, telecommunications, and consumer electronics, where devices may be exposed to extreme temperatures. The connector’s ability to perform under such conditions ensures stable and secure connections regardless of environmental challenges.

In summary, the Female Header Socket Connector is an essential component for anyone seeking a dependable and adaptable connection solution. Its extensive pin count options, multiple plastics height selections, high-quality UL94V-0 polyester insulator, and superior contact plating with gold or tin make it an excellent choice for a wide range of applications. Furthermore, its robust temperature tolerance guarantees reliable performance in harsh environments. Whether you refer to it as a Female Pin Header Connector, Female Header Socket Connector, or Female Connector Header Pin, this product stands out as a high-performance connector designed to meet the stringent demands of modern electronic systems.

Features:

• Product Name: Female Header Connector
• Available Pitch Sizes: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Plastics Height Options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Versatility: Usually suitable for various applications
• Contact Resistance: Maximum 30mΩ
• Plastics Material: PA6T with 30% Glass Fiber reinforcement
• Also known as Female Header Socket Connector, Female Socket Header Connector, and Female Board Header Connector

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH043, is a high-quality Female Header Socket Connector designed and manufactured in China under strict ISO-9001:2000 certification standards. This reliable connector, made from durable PA6T plastic reinforced with 30% glass fiber and insulated with UL94V-0 polyester material, offers excellent performance and safety in various electronic applications. With a wide range of pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, this Female Pin Header Connector caters to diverse design requirements in modern electronic devices.

The Female PCB Header Connector is widely used in numerous application occasions and scenarios, particularly where compact, secure, and efficient electrical connections are essential. It is ideal for use in consumer electronics, telecommunications equipment, industrial control systems, and automotive electronics. For instance, in consumer electronics, such as smartphones, tablets, and laptops, the LP-FH043 offers reliable interconnections between circuit boards, ensuring stable signal transmission and power delivery. In telecommunications, the connector facilitates connections in base stations, routers, and switches, supporting high-speed data transfer and system reliability.

Industrial automation and control systems benefit greatly from the robust design and high supply ability of the LP Female Header Socket Connector. It supports seamless integration in printed circuit boards (PCBs) within programmable logic controllers (PLCs), sensors, and other control devices, enhancing operational efficiency and reducing downtime. Additionally, the Female Pin Header Connector is well-suited for automotive electronics, where it withstands harsh environments and vibration, maintaining secure connections in infotainment systems, engine control units, and safety devices.

With a minimum order quantity of 1000PCS, competitive pricing at 0.0001 per unit, and flexible packaging options including reel, tube, tray, and polybag, the LP-FH043 Female PCB Header Connector is an excellent choice for mass production needs. Delivery is efficient with a lead time of 7 to 10 days, and payment terms are convenient, accepting T/T, Western Union, and L/C. Supported by an annual supply capacity of 100,000PCS and superior contact plating options such as gold (Au) or tin (Sn) over 40 micro-inches, this connector guarantees outstanding conductivity and corrosion resistance.

Overall, the LP Female Header Connector LP-FH043 is engineered to meet the demands of modern electronic assembly, providing reliable, high-performance connections across a variety of applications and industries. Whether you require a Female Header Socket Connector for compact electronic devices or a Female Pin Header Connector for industrial PCBs, this product offers unmatched quality, versatility, and supply stability.

Customization:

Our product customization services for the Female Socket Header Connector, model LP-FH043 by LP, are designed to meet your specific requirements with precision and quality. Manufactured in China and certified under ISO-9001:2000, this Female Electrical Header Connector guarantees reliability and high performance.

We offer a minimum order quantity of 1000PCS, ensuring efficient production with a competitive price of 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics needs. Delivery time is typically 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C.

This Female Socket Header Connector features excellent insulation resistance of 1000MΩ minimum, plating options in Gold or Tin, and operates reliably within a temperature range of -40° to +105°. It withstands voltage up to AC 500V and maintains a contact resistance of 30mΩ maximum, making it ideal for various electrical applications.

With a supply ability of 100,000PCS, LP is committed to providing high-quality Female Electrical Header Connectors tailored to your needs, ensuring optimal performance and customer satisfaction.
