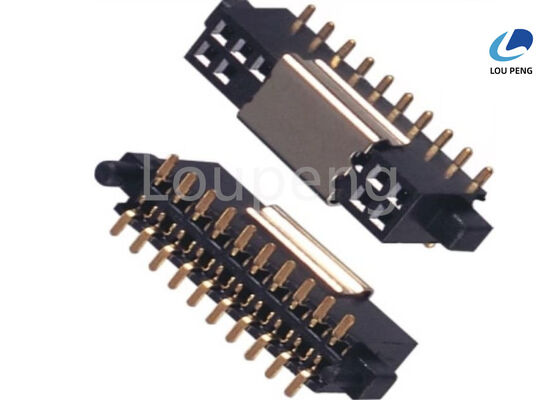

Insulator LCP NYLON PA6T UL94V0 Female Header Connector Copper Alloys Contact 2 To 40 Pin Precision Electrical Connector

Product Description:

The Female Header Pin Connector is a highly reliable and versatile component designed for various electronic applications. Engineered to provide secure and efficient connections, this connector stands out for its robust construction and excellent electrical performance. Its design caters to the needs of modern electronic devices, ensuring stability and durability across a wide range of operating conditions.

One of the critical features of this Female Electrical Header Connector is its impressive operating temperature range, which spans from -40° to +105° Celsius. This wide temperature tolerance makes it suitable for use in demanding environments, including automotive, industrial, and consumer electronics, where temperature fluctuations are common. The ability to perform reliably under such conditions ensures long-term functionality and reduces the risk of connection failures.

The housing of the Female Header Pin Connector is made from high-quality polyester material, which meets the UL94V-0 standard for flame retardancy. This certification guarantees that the connector housing is resistant to fire and can prevent the spread of flames in case of electrical faults or overheating. The use of polyester not only enhances the safety aspect but also contributes to the connector’s mechanical strength, providing excellent resistance to wear and tear, chemical exposure, and physical stress.

Electrical performance is paramount in any connector, and this Female Electrical Header Connector excels in this regard. It boasts a withstanding voltage of AC 500V, which means it can safely handle high voltage levels without risk of breakdown or electrical arcing. This characteristic is essential for maintaining signal integrity and preventing damage to connected components, especially in circuits with varying voltage requirements.

The contact elements within the Female Header Pin Connector are crafted from premium copper alloys. Copper alloys are chosen for their excellent electrical conductivity, corrosion resistance, and mechanical resilience. These properties ensure that the connector maintains low resistance and consistent electrical contact over extended periods, even in harsh environments. The copper alloy contacts contribute significantly to the overall performance and reliability of the connector, making it a preferred choice for high-quality electronic assemblies.

Contact resistance is a crucial parameter in assessing connector quality, and this Female Header Pin Connector maintains a maximum contact resistance of just 30 milliohms. Low contact resistance is vital to minimize power loss, heat generation, and signal degradation, which can adversely affect the performance of electronic systems. By keeping contact resistance to a minimum, this connector ensures efficient power transmission and stable signal flow, enhancing the overall efficiency of the connected devices.

Designed for ease of integration, the Female Header Pin Connector features a compact and standardized form factor, making it compatible with various pin headers and PCB layouts. This compatibility simplifies the design process and enables seamless integration into existing systems or new product developments. The connector’s design also facilitates quick and secure mating and unmating, which is beneficial for maintenance, upgrades, and repairs.

In summary, the Female Header Pin Connector is an excellent choice for engineers and designers seeking a dependable and high-performance connector solution. Its wide operating temperature range, flame-retardant polyester housing, high withstanding voltage, copper alloy contacts, and low contact resistance collectively ensure superior electrical and mechanical performance. Whether used in industrial controls, automotive electronics, or consumer devices, this Female Electrical Header Connector delivers consistent and reliable connections, contributing to the overall success and longevity of electronic systems.

Features:

• Product Name: Female Header Connector
• Available Plastics Height Options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Housing Material: High-quality Polyester (UL94V-0 rated for flame retardancy)
• Insulator Options: LCP, NYLON, PA6T (all UL94V-0 certified)
• Pin Count Range: From 2 to 40 pins to suit various application needs
• Gender: Female
• Designed as a Female Socket Header Connector for reliable and secure connections
• Also available as a Female Inline Header Connector for versatile mounting options
• Durable Female Socket Header Connector ensuring long-lasting electrical performance

Technical Parameters:

Applications:

The LP-FH044 Female Header Connector, manufactured by LP in China and certified under ISO-9001:2000 standards, is a versatile and reliable component widely used in various electronic applications. Designed to accommodate 2 to 40 pins, this connector is crafted with high-quality phosphor bronze or brass pin materials, ensuring excellent conductivity and durability. The insulator materials, including LCP, Nylon, and PA6T (UL94V-0), provide superior heat resistance and flame retardancy, making it suitable for demanding environments. Available with gold or tin plating, the Female Connector Header Pin guarantees optimal signal transmission and corrosion resistance.

This Female Inline Header Connector is ideal for printed circuit board (PCB) applications where secure and stable connections are essential. It is commonly utilized in consumer electronics, telecommunications, automotive electronics, industrial machinery, and computer hardware. The connector’s adaptability to various packaging options such as reel, tube, tray, or polybag facilitates efficient handling and integration into automated assembly lines. With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, the LP-FH044 model meets both small and large-scale production needs, ensuring timely delivery within 7 to 10 days.

The Female Header Socket Connector is especially advantageous in scenarios requiring frequent mating and unmating, such as test equipment, modular systems, and prototyping. Its robust construction and high-performance materials make it suitable for harsh environments, including industrial automation and automotive electronics, where vibration resistance and mechanical stability are critical. The connector’s compliance with the PA6T standard and options for payment via T/T, , or L/C further enhance its appeal for global customers seeking trustworthy and cost-effective connectivity solutions.

In summary, the LP-FH044 Female Header Connector series offers unparalleled flexibility and reliability for a broad range of electronic interconnection applications. Whether you need a compact Female Connector Header Pin for space-constrained devices or a durable Female Inline Header Connector for complex assemblies, this product delivers consistent performance and quality. Its competitive price point of 0.0001 per piece, combined with multiple packaging and payment options, makes it an excellent choice for manufacturers and designers aiming to optimize their electronic products’ connectivity.

Customization:

LP offers comprehensive product customization services for the Female Header Connector, model number LP-FH044. Manufactured in China and certified under ISO-9001:2000, this product ensures high quality and reliability. We specialize in Female Board Header Connector, Female Socket Header Connector, and Female Pin Header Connector variants to meet diverse application needs.

Our customization options include various contact materials such as Phosphor Bronze and Brass, and mounting types including Through Hole and SMT, providing flexibility for different assembly requirements. The connectors feature a maximum processing temperature of 230℃ for 30-60 seconds (260℃ for 5 seconds) and an insulation resistance of 1000MΩ minimum, ensuring durability and performance.

The minimum order quantity is 1000PCS, with a competitive price of 0.0001 per unit. Packaging options are available in Reel, Tube, Tray, or Polybag formats to suit your logistics preferences. We guarantee a delivery time of 7 to 10 days with a supply ability of up to 100,000PCS.

Payment terms are flexible, accepting T/T, , and L/C methods. Whether you require Female Board Header Connector, Female Socket Header Connector, or Female Pin Header Connector, LP is your trusted partner for tailored connector solutions.
