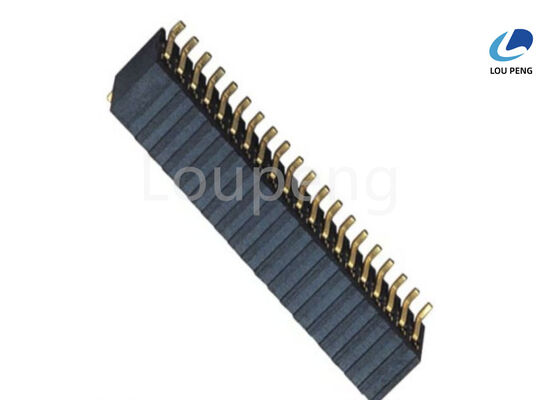

Op Temperature minus 40 to plus 105 degrees Female Header Connector featuring Copper Alloys Contact and Brass Pin Material suitable for industrial

Product Description:

The Female Header Connector is a versatile and reliable component widely used in electronic assemblies and circuit board connections. Designed to provide secure and efficient interfacing between various electronic modules, this connector is essential for applications requiring dependable signal transmission and mechanical stability. Available in multiple pitch options, the Female Pin Header Connector caters to diverse design requirements, ensuring compatibility with a broad range of devices and systems.

One of the key features of this Female Header Socket Connector is its availability in various pitch sizes, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. These pitch options allow engineers and designers to select the most suitable spacing between pins according to the specific needs of their projects, whether it is for high-density connections in compact devices or standard spacing for general-purpose applications. This flexibility makes the Female Header Socket Connector an ideal choice for both prototype development and mass production environments.

The connector's pins range from 2 to 40 in number, providing ample options for different circuit configurations. Whether you require a simple two-pin connection or a more complex multi-pin interface, this product can accommodate your demands with ease. The pin count versatility enhances its applicability across various sectors, including consumer electronics, industrial equipment, telecommunications, and automotive systems.

Durability and performance are paramount when it comes to connectors, and this Female Pin Header Connector excels in both areas. It features a low contact resistance of 30mΩ maximum, ensuring minimal signal loss and reliable electrical conductivity. This characteristic is crucial for maintaining signal integrity, especially in high-frequency or sensitive electronic circuits where every milliohm of resistance can impact performance.

The material used for the connector housing is PA6T reinforced with 30% glass fiber, which significantly enhances its mechanical strength and thermal stability. This robust plastic material ensures that the connector can withstand the stresses of assembly, handling, and operation without deformation or failure. The glass fiber reinforcement adds rigidity, making the connector resistant to wear and environmental factors.

In terms of thermal performance, the Female Header Socket Connector supports a maximum processing temperature of 230℃ for 30 to 60 seconds, with a peak tolerance of 260℃ for up to 5 seconds. This tolerance makes it suitable for various soldering processes, including wave soldering and reflow soldering, common in modern electronics manufacturing. The ability to withstand these temperatures without compromising structural integrity ensures reliable assembly and long-term operational stability.

Overall, the Female Pin Header Connector stands out as a high-quality component designed to meet the rigorous demands of contemporary electronic applications. Its combination of multiple pitch options, a wide range of pin counts, low contact resistance, durable PA6T+30% glass fiber material, and excellent thermal resistance makes it a preferred choice for engineers and manufacturers alike. Whether used as a Female Header Socket Connector in prototype boards or integrated into final products, this connector guarantees secure connections and consistent performance.

For anyone seeking a dependable Female Header Socket Connector with flexible specifications and outstanding reliability, this product offers an excellent solution. Its thoughtful design and robust construction provide confidence in both everyday use and specialized applications, ensuring seamless connectivity and optimal functionality across a wide spectrum of electronic devices.

Features:

• Product Name: Female Header Connector
• Operating Temperature Range: -40° to +105°
• Pin Material: Phosphor Bronze / Brass
• Contact Plating: Gold (Au) or Tin (Sn) over 40 microinches
• Mounting Type: Through Hole or Surface Mount Technology (SMT)
• Maximum Processing Temperature: 230℃ for 30-60 seconds, 260℃ for 5 seconds
• Also known as Female Board Header Connector, Female Socket Header Connector, and Female Connector Header Pin

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH038, is a high-quality connector designed and manufactured in China with ISO-9001:2000 certification, ensuring reliable performance and durability. This connector is made from premium PA6T + 30% Glass Fiber material, providing excellent mechanical strength and heat resistance with an operating temperature range from -40° to +105°. The pins are crafted from phosphor bronze or brass, guaranteeing superior conductivity and corrosion resistance. With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, this product is ideal for mass production needs, supported by flexible payment terms including T/T, Western Union, and L/C.

The Female Header Socket Connector is widely used in various electronic applications where secure and stable connections are critical. It is particularly suitable for electronic circuit boards, embedded systems, and communication devices. The Female Board Header Connector variant allows for seamless integration on printed circuit boards (PCBs), offering reliable interfacing with male header pins. Thanks to its robust PA6T + 30% Glass Fiber construction, it performs exceptionally well in environments that require resistance to mechanical stress and temperature fluctuations, making it ideal for industrial automation, automotive electronics, and consumer electronics.

In addition, the Female Inline Header Connector configuration facilitates easy inline connections in wiring harnesses and compact electronic assemblies. Its packaging options, including reel, tube, tray, and polybag, provide versatility for different manufacturing and assembly processes, ensuring protection during transportation and storage. The connector’s compact design and high pin quality make it an excellent choice for applications such as IoT devices, medical instruments, and home appliances where space-saving and reliable connectivity are essential.

With a competitive price of 0.0001 per unit and a delivery time of 7 to 10 days, the LP-FH038 Female Header Connector from LP brand offers an excellent balance of quality, affordability, and availability. Whether you need the Female Header Socket Connector for prototyping or the Female Board Header Connector for mass production, this product meets diverse application occasions and scenarios, providing consistent performance across a wide range of electronic devices and systems.

Customization:

Our Female Wire Header Connector, branded as LP, model number LP-FH038, is designed and manufactured in China with strict adherence to ISO-9001:2000 certification standards, ensuring high quality and reliability.

We offer product customization services for the Female Header Pin Connector with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag to meet your specific needs.

The Female PCB Header Connector features excellent insulation resistance of 1000MΩ minimum and comes with plating options of Gold or Tin to enhance durability and performance. The plastics height can be customized to 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, or 8.5mm according to your requirements.

We provide flexibility in mounting types, supporting Through Hole and SMT configurations, and offer various connector types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows to suit your application.

With a supply ability of 100,000PCS and a delivery time frame of 7 to 10 days, we ensure timely fulfillment of your orders. Payment terms are convenient and include T/T, Western Union, and L/C.

Choose our LP Female Wire Header Connector solutions for customizable, high-quality Female Header Pin Connector and Female PCB Header Connector products tailored to your specifications.

Support and Services:

Our Female Header Connector product is designed to provide reliable and secure connections in various electronic applications. For technical support, please ensure that you have the product specifications and datasheet on hand to assist in troubleshooting and compatibility checks.

Installation guidance: Align the female header connector properly with the corresponding male header pins to ensure a snug fit and avoid bending or damaging the pins. Use appropriate tools to solder the connector to the PCB if required, maintaining recommended temperature and duration to prevent damage.

Troubleshooting tips: If you experience connectivity issues, verify the orientation and seating of the connector, inspect for any bent or broken pins, and confirm that the solder joints are solid and free of cold soldering defects. Check for any debris or corrosion that may impede electrical contact.

Maintenance: Keep the connectors clean and free from dust or oxidation by using contact cleaner sprays suitable for electronic components. Avoid excessive mechanical stress on the connectors during insertion and removal.

For further assistance, consult the product manual or technical datasheet provided with your purchase. Our support team is available to provide detailed technical guidance and address any specific application concerns.
