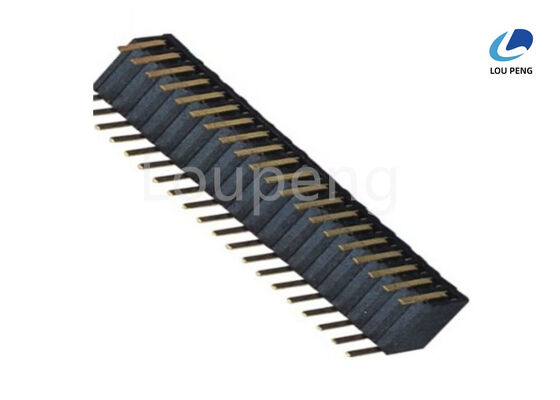

Op Temperature Negative 40 to Positive 105 Degrees Female Header Connector Featuring Copper Alloys Contacts Designed for Signal Transmission

Product Description:

The Female Header Connector is a versatile and reliable component widely used in electronic assemblies for connecting printed circuit boards (PCBs). Designed to accommodate a range of applications, this connector is available with pin counts ranging from 2 to 40 pins, providing flexibility to suit various circuit designs and configurations. Whether you need a compact two-pin connection or a more extensive 40-pin interface, the Female Header Connector offers consistent performance across all options.

One of the key features of the Female Header Connector is its robust construction, which ensures dependable electrical connections in demanding environments. The contact material is made from high-quality copper alloys, known for their excellent conductivity and durability. This enables the connector to maintain stable signal transmission and resist corrosion over time, which is essential for maintaining the integrity of electronic systems.

The connector is engineered to operate efficiently within a wide temperature range, from -40 ℃ up to +105 ℃. This broad working temperature capability makes the Female Pin Header Connector suitable for use in various industrial, automotive, and consumer electronics applications where temperature fluctuations are common. Users can trust that these connectors will perform reliably in both low and high-temperature conditions without compromising functionality.

To accommodate different design needs, the Female PCB Header Connector is offered in multiple plastic height options, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm. This range of heights allows engineers and designers to select the ideal profile for their specific PCB layout, ensuring optimal fit and mechanical stability. The variety in plastic height also supports different stacking distances and connector alignments, enhancing design versatility.

In terms of manufacturing and assembly, the Female Socket Header Connector supports high-temperature processing. It can withstand a maximum processing temperature of 230℃ for 30 to 60 seconds, which is suitable for most soldering processes. Additionally, it can endure brief exposure to 260℃ for 5 seconds, making it compatible with lead-free soldering techniques and modern reflow soldering profiles. This thermal resilience ensures that the connector maintains its integrity and performance throughout the assembly process.

The Female Header Connector's design emphasizes ease of use and reliable mating with corresponding male headers or pins. This makes it an excellent choice for modular electronics, prototyping, and production-level PCB assemblies. Its compatibility with standardized male headers ensures seamless integration into existing systems, facilitating quick installation and maintenance.

Overall, the Female Pin Header Connector combines durability, flexibility, and high performance. It is an essential component for engineers seeking a dependable female connector solution for their PCB projects. With multiple pin configurations, a wide operating temperature range, and various plastic heights, this connector caters to a diverse array of electronic design requirements. Whether used in industrial controls, communication devices, or consumer electronics, the Female PCB Header Connector delivers consistent quality and reliability.

Features:

• Product Name: Female Header Connector
• Current Rating: 1.5 Amps
• Available Pitches: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Versatility: Usually used in various electronic applications
• Housing Material: Polyester (UL94V-0) for excellent flame retardancy
• Connector Material: PA6T with 30% Glass Fiber for enhanced durability
• Also known as Female Electrical Header Connector and Female Pin Header Connector

Technical Parameters:

Applications:

The LP brand Female Header Connector, model number LP-FH036, is a highly reliable and versatile component designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this Female Header Socket Connector stands out for its superior quality and durability. It is widely used in various industries including consumer electronics, telecommunications, automotive, and industrial equipment, making it an essential part for secure and efficient electrical connections.

This Female Board Header Connector is specifically engineered with advanced materials such as LCP, Nylon, and PA6T (UL94V-0) insulators, ensuring excellent heat resistance and mechanical strength. The plastics used are composed of PA6T combined with 30% glass fiber, providing enhanced durability and performance under demanding conditions. Available in multiple plastic heights ranging from 2.0mm to 8.5mm, this connector can be tailored to meet specific design requirements. The polyester insulator material also complies with UL94V-0 flame retardant standards, adding an extra layer of safety in high-temperature environments.

Due to its robust design and high processing temperature tolerance—230℃ for 30-60 seconds and up to 260℃ for 5 seconds—the LP-FH036 is ideal for scenarios requiring repeated soldering or exposure to high heat during assembly. This makes it suitable for use in densely packed circuit boards and high-performance electronic devices where reliability is critical. The product is packaged in reels, tubes, trays, or polybags, facilitating easy handling and integration into automated production lines.

With a supply ability of 100,000 pieces and a minimum order quantity of 1000 PCS, the LP Female Board Header Connector is perfect for both large-scale manufacturers and smaller enterprises looking for cost-effective solutions. The competitive price of 0.0001 per piece coupled with flexible payment terms including T/T, Western Union, and L/C further enhances its appeal in global markets. Delivery time is prompt at 7 to 10 days, ensuring timely fulfillment of orders.

In summary, the LP-FH036 Female Header Socket Connector offers exceptional performance in diverse application occasions such as consumer electronics assembly, communication devices, automotive electronics, and industrial control systems. Its high-quality materials, certification, and customizable packaging options make it an indispensable component for engineers and manufacturers seeking reliable Female Board Header Connectors for their projects.
