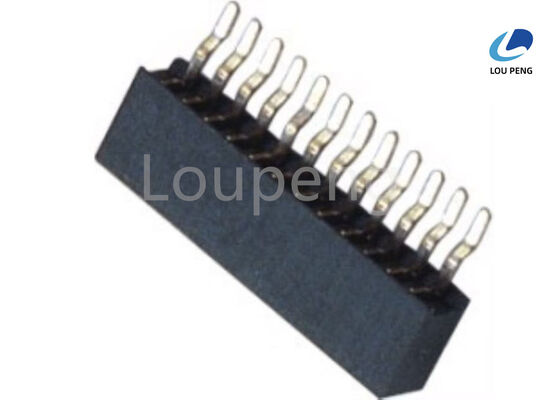

Insulator PA6T UL94V-0 Female Connector Header Pin Pitch 0.8mm 1.0mm 1.27mm 2.0mm 2.54mm Durable Connector Pin for Electronics

Product Description:

The Female Header Connector is a highly reliable and versatile component designed for a wide range of electronic applications. Crafted with precision, this connector features contacts made from high-quality copper alloys, ensuring excellent electrical conductivity and durability. The use of copper alloys in the contact construction enhances the connector's performance by providing low resistance and superior corrosion resistance, which is essential for maintaining stable and efficient electrical connections over time.

One of the standout features of this product is its versatility. The Female Header Connector is commonly used in various electronic assemblies and devices, making it an indispensable component for engineers and designers. It is usually employed in applications where secure and removable connections are required, such as in circuit boards, control panels, and communication equipment. This adaptability makes it an ideal choice for a broad spectrum of electrical and electronic projects.

In terms of dimensions, this Female Board Header Connector is available in multiple plastic heights, including 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm. This range of plastic heights allows users to select the most suitable connector size to fit their specific design requirements, ensuring optimal compatibility with different board layouts and component configurations. The variety in plastic height also aids in accommodating various mating components and mechanical constraints.

Safety and reliability are paramount in electrical connectors, and this Female Header Socket Connector meets stringent standards by offering a withstanding voltage rating of AC 500V. This high voltage tolerance ensures that the connector can safely handle electrical loads without risk of breakdown or failure, making it suitable for both low and moderate voltage applications. The ability to withstand such voltages adds an extra layer of confidence for users who demand robust and secure electrical connections.

Another critical aspect of the Female Electrical Header Connector is its contact plating options. The contacts are plated either with gold (Au) or tin (Sn) over a thickness of 40 microinches (40n). Gold plating provides excellent corrosion resistance, superior conductivity, and enhanced durability, making it ideal for applications where long-term reliability and minimal signal loss are crucial. On the other hand, tin plating offers a cost-effective solution that still ensures good conductivity and protection against oxidation. This choice of plating allows customers to balance performance and budget based on their specific needs.

This Female Header Connector is designed to facilitate easy and secure mating with male counterparts, ensuring stable mechanical and electrical connections. Its construction and material selection are optimized to provide longevity, reducing the need for frequent replacements and maintenance. Whether used in consumer electronics, industrial equipment, or communication devices, this connector delivers consistent performance and reliability.

In summary, the Female Board Header Connector, also known as the Female Header Socket Connector or Female Electrical Header Connector, is a versatile and durable component that combines high-quality materials, multiple size options, and excellent electrical properties. With copper alloy contacts, a wide range of plastic heights, a withstanding voltage of AC 500V, and premium contact plating options of gold or tin over 40 microinches, this connector is engineered to meet the demanding requirements of modern electronic assemblies. Its adaptability and robust design make it an essential part of any electronic connection solution.

Features:

• Product Name: Female Header Connector
• Pin Range: 2 to 40 Pins
• Working Temperature: -40 ℃ to +105 ℃
• Contact Material: Phosphor Bronze / Brass
• Connector Material: PA6T with 30% Glass Fiber
• Contact Composition: Copper Alloys
• Suitable for use as Female Header Pin Connector
• Compatible with Female Connector Header Pin applications
• Designed as a reliable Female Pin Header Connector

Technical Parameters:

Applications:

The LP Female Header Pin Connector, model number LP-FH035, is a high-quality product originating from China and certified under ISO-9001:2000 standards. This connector is designed to meet the demanding requirements of various electronic applications, thanks to its robust build and reliable performance. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it is an ideal choice for manufacturers and designers seeking efficient and cost-effective connection solutions.

The Female Connector Header Pin is widely used in numerous application occasions and scenarios, particularly in the fields of consumer electronics, industrial equipment, automotive electronics, and communication devices. Its current rating of 1.5 Amps and insulation resistance of 1000MΩ minimum ensure safe and efficient electrical connections in compact spaces. These connectors are essential in circuit board assemblies where secure and stable connections are crucial for device functionality.

Thanks to the high-quality materials used, such as phosphor bronze and brass for the contact material, and LCP, nylon, or PA6T (UL94V-0) for the insulator, the Female Header Pin Connector offers excellent durability and resistance to high temperatures and mechanical stress. This makes it suitable for use in harsh environments, including automotive under-the-hood applications, industrial machinery, and outdoor electronic devices.

The packaging options available, including reel, tube, tray, and polybag, provide flexibility for various production line setups and handling preferences. With a supply ability of 100000PCS and a delivery time frame of 7 to 10 days, LP ensures timely fulfillment of large orders, supporting mass production demands efficiently.

Payment terms such as T/T, Western Union, and L/C facilitate smooth and secure transactions, making the procurement process straightforward. The low contact resistance of 30mΩ max further enhances the performance of the Female Header Pin Connector, ensuring minimal power loss and reliable signal transmission in critical applications.

In summary, the LP-FH035 Female Header Pin Connector is a versatile and dependable component suited for a wide range of electronic assembly projects. Whether in consumer gadgets, industrial control systems, or automotive electronics, this female connector header pin provides the quality and performance needed for modern electronic products.

Customization:

Our LP brand Female Header Connector, model number LP-FH035, is a high-quality Female Pin Header Connector designed and manufactured in China. Certified with ISO-9001:2000, this Female Electrical Header Connector ensures reliable performance and durability for various applications.

We offer customization services for this Female Board Header Connector with a minimum order quantity of 1000PCS. The connector features an insulator material made of Polyester (UL94V-0) and contact materials including Phosphor Bronze and Brass, providing excellent electrical conductivity and mechanical strength.

The LP-FH035 Female Header Connector is available in multiple types, including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, allowing you to select the perfect configuration for your project. It supports a maximum processing temperature of 230℃ for 30-60 seconds and 260℃ for 5 seconds, ensuring compatibility with various soldering processes.

Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics and storage needs. With a supply ability of 100,000PCS and a competitive price starting at 0.0001 per unit, we guarantee timely delivery within 7 to 10 days.

Payment terms are flexible, accepting T/T, Western Union, and L/C, making the procurement process smooth and convenient. Trust LP's Female Pin Header Connector for your Female Electrical Header Connector and Female Board Header Connector needs, combining quality, customization, and efficient service.
