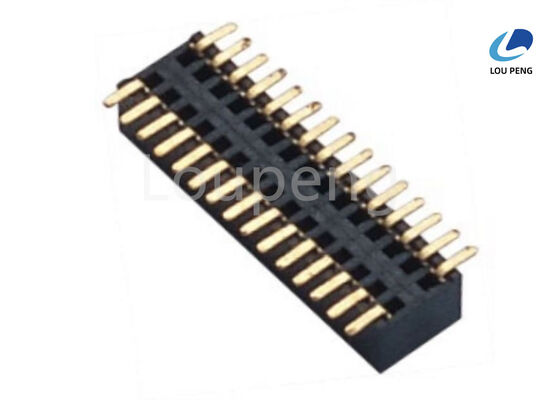

PA6T30 Percent Glass Fiber Female Header Connector Polyester UL94V-0 Insrlator Material Pitch 0.8mm 1.0mm 1.27mm 2.0mm 2.54mm Designed for Electronic Connections

Product Description:

The Female Header Connector is a versatile and reliable component designed for various electronic applications. Available in multiple configurations, this connector is an essential part of modern PCB assemblies, providing secure and efficient connections. Manufactured with precision, the Female Socket Header Connector ensures excellent electrical performance and mechanical stability, making it ideal for both industrial and consumer electronics.

One of the key features of this Female PCB Header Connector is its robust material composition. Made from PA6T reinforced with 30% glass fiber, the connector exhibits superior strength, durability, and resistance to high temperatures. This makes it suitable for use in demanding environments where mechanical stress and heat are common. The glass fiber reinforcement also enhances the dimensional stability of the connector, ensuring consistent performance over its lifespan.

The Female Inline Header Connector is available with a plating option of either gold or tin. Gold plating offers excellent corrosion resistance and superior conductivity, making it suitable for applications requiring high reliability and low contact resistance. Tin plating, on the other hand, provides a cost-effective solution with good solderability and corrosion protection, ideal for general-purpose electronic devices. Both plating options guarantee a stable and durable electrical connection, reducing the risk of signal loss or interruption.

This connector supports a current rating of 1.5 Amps, which is sufficient for most low to medium power electronic circuits. The current rating ensures safe and efficient transmission of electrical signals without overheating or degradation of the connector materials. Whether used in signal processing, communication devices, or control systems, the Female Socket Header Connector delivers consistent performance under various electrical loads.

Designed to accommodate a broad range of applications, the Female PCB Header Connector comes in pin counts ranging from 2 to 40 pins. This wide selection allows engineers and designers to choose the optimal connector size for their specific circuit requirements, whether for simple connections or complex multi-pin interfaces. The availability of multiple pin counts also facilitates scalability and customization in electronic design projects.

Another significant attribute of this Female Inline Header Connector is its varied plastics height options. The connector is available in heights of 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm. This range of heights provides flexibility in mounting and assembly, allowing for compatibility with different board layouts and component profiles. The precise molding of the plastic housing ensures a secure fit and reliable insulation between pins, preventing short circuits and enhancing the overall safety of the electronic assembly.

In summary, the Female Header Connector is an indispensable component designed to meet the diverse needs of modern electronics. With its high-quality PA6T+30% glass fiber material, gold or tin plating options, 1.5 Amp current rating, and a wide variety of pins and plastics heights, it offers exceptional reliability and versatility. Whether referred to as a Female Socket Header Connector, Female PCB Header Connector, or Female Inline Header Connector, this product stands out for its performance, durability, and adaptability, making it a top choice for engineers and manufacturers worldwide.

Features:

• Product Name: Female Header Connector
• Also known as Female Socket Header Connector, Female PCB Header Connector, and Female Board Header Connector
• Material: PA6T with 30% Glass Fiber for enhanced durability and strength
• Available Pins: 2 to 40 pins to suit various application needs
• Plastic Height Options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, and 8.5mm
• Low Contact Resistance: Maximum 30mΩ ensuring reliable electrical connections
• Withstanding Voltage: AC 500V for safe and stable performance in electronic circuits

Technical Parameters:

Applications:

The LP-FH034 Female Header Connector, proudly manufactured in China and certified under ISO-9001:2000, is a highly reliable and versatile component designed for a wide range of electronic applications. As a product of the trusted LP brand, this Female Header Pin Connector offers exceptional quality and performance, making it an ideal choice for various industries and use cases. With a current rating of 1.5 Amps and a housing made of durable Polyester (UL94V-0), it ensures safety and longevity in demanding environments.

This Female Header Socket Connector is perfectly suited for use in compact electronic devices, communication equipment, industrial control systems, and consumer electronics where secure and stable connections are critical. The connector comes in multiple pitch options, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing it to adapt easily to different circuit board layouts and design requirements. Its pins are made from high-quality materials such as Phosphor Bronze and Brass, which provide excellent conductivity and corrosion resistance.

Thanks to its flexible packaging options—Reel, Tube, Tray, and Polybag—this Female Connector Header Pin is well-suited for automated production lines as well as manual assembly processes. With a supply ability of 100,000 pieces and a minimum order quantity of 1000 pieces, the LP-FH034 is perfect for manufacturers and businesses aiming for bulk procurement at a highly competitive price of 0.0001 per piece. Delivery is reliably fast, with a lead time of 7 to 10 days, and payment can be conveniently made through T/T, Western Union, or L/C.

Typical application scenarios for the Female Header Pin Connector include use in printed circuit boards (PCBs) for signal and power transmission, modular electronic systems requiring easy plug-and-play connections, and devices needing secure mating connections to prevent accidental disconnections. It is commonly found in computer peripherals, automotive electronics, industrial machinery, and home appliances. The connector’s robust design and excellent electrical properties also make it suitable for use in prototyping, testing, and small-batch production environments.

In summary, the LP LP-FH034 Female Header Socket Connector is a dependable and efficient solution for engineers and manufacturers seeking a high-quality Female Connector Header Pin with excellent electrical and mechanical performance. Its versatility in pitch size, durable materials, and various packaging options make it an indispensable component in modern electronic assembly and manufacturing scenarios.

Customization:

Brand Name: LP

Model Number: LP-FH034

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: 0.0001

Packaging Details: Reel / Tube / Tray / Polybag

Delivery Time: 7~10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS

Standard: PA6T

Contact Plating: Au Or SN Over 40n

Plating: Gold / Tin

Material: PA6T+30% Glass Fiber

Contact: Copper Alloys

Our Female Socket Header Connector, Female Header Pin Connector, and Female Electrical Header Connector products can be customized to meet your specific requirements. With a high supply ability and flexible packaging options including reel, tube, tray, and polybag, we ensure timely delivery within 7 to 10 days. Certified with ISO-9001:2000 and manufactured under strict standards using PA6T material reinforced with 30% glass fiber, our connectors feature reliable copper alloy contacts plated with gold or tin for optimal performance. Minimum order quantity is 1000PCS, and we accept various payment terms such as T/T, Western Union, and L/C.

Support and Services:

Our Female Header Connector product is designed to provide reliable and secure connections in various electronic applications. For technical support, please ensure that the connector is used within the specified voltage and current ratings to prevent damage or failure. Proper insertion and alignment with the corresponding male header are critical to maintain optimal electrical performance and mechanical stability. Avoid excessive force during mating and unmating to prolong the connector's lifespan.

We recommend consulting the product datasheet for detailed specifications, including pin configuration, material composition, and environmental ratings. If you encounter issues such as poor connectivity or physical damage, inspect the connector for bent pins, corrosion, or contamination, and verify that the mating components are compatible and correctly oriented.

For maintenance, keep the connectors clean and free from dust or debris. Use appropriate cleaning agents that do not degrade the plastic or metal parts. In case of replacement or customization needs, refer to our range of compatible connectors and accessories to ensure seamless integration.

Our technical support team is available to assist with application guidance, troubleshooting, and customization inquiries to help you achieve the best performance with our Female Header Connector products.

Packing and Shipping:

Each Female Header Connector is carefully packaged to ensure protection during transit. The connectors are placed in anti-static bags to prevent any electrostatic discharge damage. Multiple bags are then grouped and secured in sturdy cardboard boxes with adequate padding to avoid movement and impact.

For shipping, we use reliable courier services that provide tracking and insurance options. Orders are processed promptly and dispatched within 1-2 business days. We ensure that all packages are clearly labeled with handling instructions to facilitate safe delivery.

Bulk orders may be packaged on reels or trays as per customer requirements to streamline installation and handling. Custom packaging solutions are available upon request.

Our packaging and shipping procedures are designed to maintain the highest quality standards, ensuring that your Female Header Connectors arrive in perfect condition and ready for use.
