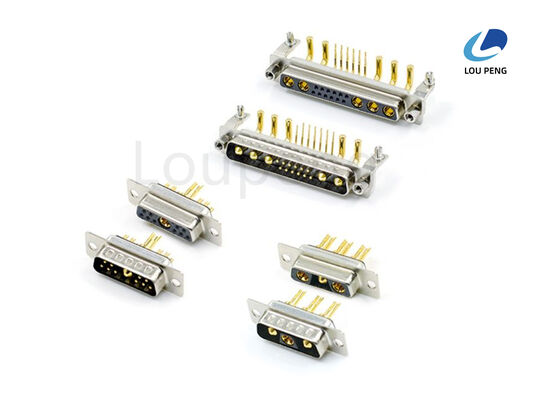

50 Pins Male D-Sub VGA Connector Perfect for Industrial Video Equipment and Computer Display Applications

Product Description:

The D-SUB / DVI Connector is a versatile and essential component widely used in various electronic and computer applications. Designed to provide reliable and efficient connections, this connector combines the classic D-SUB interface with the advanced capabilities of DVI technology, catering to both analog and digital data transmission needs. Whether you are working with video displays, computer monitors, or specialized equipment, the D-SUB / DVI Connector offers a robust solution for seamless connectivity.

One of the key features of this connector is its insulator material, which is typically made from high-temperature thermoplastic plastic. This choice of material ensures excellent durability and heat resistance, making the connector suitable for use in environments where thermal stability is critical. The plastic insulator also contributes to the overall electrical insulation, preventing short circuits and maintaining signal integrity during data transmission.

The connector is rated to handle current ranging from 1.0A to 3.0A per contact. This current rating is sufficient for most standard applications involving data and video signal transmission, ensuring that the connector can manage power requirements without risk of overheating or failure. This range of current rating makes the D-SUB / DVI Connector versatile for different device specifications and usage scenarios.

Its shell is constructed from metal, commonly steel or aluminum, which provides robust mechanical protection and shielding against electromagnetic interference (EMI). The metal shell enhances the durability of the connector, enabling it to withstand physical stress and environmental factors such as dust, moisture, and mechanical vibrations. This makes it an ideal choice for industrial, commercial, and consumer electronics where longevity and reliable performance are paramount.

The D-SUB / DVI Connector is available in both male and female gender configurations. This flexibility allows for easy integration into various systems and devices, facilitating straightforward mating with corresponding connectors. The availability of both genders also supports a wide range of cable assemblies, adapters, and port configurations, making it easier to customize setups according to specific requirements.

One of the standout advantages of this connector is its support for both analog and digital data transmission. While traditional D-Sub connectors primarily handle analog signals, the integration with DVI technology enables digital video transmission, thus supporting high-definition displays and modern video interfaces. This dual capability ensures compatibility with a broad spectrum of devices, from older VGA monitors to contemporary digital displays, providing a seamless bridge between different generations of technology.

In practical terms, the D-SUB / DVI Connector serves as a critical component in D-Sub cable connectors used for connecting computers to monitors or other display devices. It also functions as a D-SUB port adapter, enabling conversion between different types of video interfaces, which is invaluable in environments where multiple standards coexist. Additionally, the D-Sub VGA connector feature ensures compatibility with VGA ports, making it a versatile and indispensable tool for video signal management.

Overall, the D-SUB / DVI Connector is a well-engineered product designed to meet the demands of modern electronic communication and video transmission. Its combination of durable materials, reliable current handling, flexible gender options, and support for both analog and digital signals makes it a preferred choice among professionals and consumers alike. Whether used in personal computing, professional AV setups, or industrial applications, this connector delivers consistent performance and longevity, ensuring your devices stay connected with clarity and stability.

Features:

• Product Name: D-SUB / DVI Connector
• Application: Video signal transmission for computers, monitors, and AV equipment
• Operating Temperature Range: -40°C to +85°C
• Number of Pins: Varies (commonly 9, 15, 25, 37, 44, 50)
• Current Rating: 1.0A to 3.0A per contact
• Contact Plating: Gold or tin plated for enhanced conductivity and corrosion resistance
• Includes D-Sub Signal Connector for reliable video signal transmission
• Compatible with D-SUB Port Adapter for versatile connectivity options
• Ideal as a D-SUB Port Adapter solution in various AV and computer setups

Technical Parameters:

Applications:

The Loupeng LP-DB043 D-SUB / DVI Connector is an essential component widely used in various electronic and computer applications due to its reliable performance and high-quality construction. As a D-Sub Computer Connector, it serves as an indispensable interface for connecting different devices, ensuring stable data transmission and signal integrity. This connector is designed with copper alloy contacts that are either gold or tin plated, enhancing conductivity and preventing corrosion, which is vital for maintaining long-term durability in demanding environments.

One of the primary application occasions for the LP-DB043 model is in computer systems and peripherals that require D-SUB Port Adapter functionality. Its panel mount and cable mount options offer versatile installation solutions, making it suitable for use in desktop computers, laptops, servers, and industrial control equipment. The high-temperature thermoplastic insulator material ensures excellent resistance to heat and mechanical stress, making it ideal for scenarios where reliability under continuous operation is critical.

In addition, the LP-DB043 functions effectively as a D-Sub Display Connector, commonly found in video output systems, monitors, and display devices. Its male and female gender options facilitate easy and secure connections between display units and graphic cards or other video sources. This product’s compliance with ISO-9001:2000 certification guarantees consistent manufacturing quality, which is essential for industries that demand high standards and performance.

The Loupeng LP-DB043 connector is also well-suited for bulk procurement needs, with a minimum order quantity of 1000PCS and a competitive price point of 0.03 per unit. Packaging options such as tubes and trays provide convenient handling and protection during shipping. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, suppliers and manufacturers can efficiently meet production schedules.

Payment terms including T/T and L/C make transactions smooth and reliable for international buyers. Overall, the Loupeng LP-DB043 D-SUB / DVI Connector is designed for a wide range of applications, including computer systems, industrial equipment, and display interfaces, offering excellent electrical performance, mechanical stability, and cost-effectiveness in various professional and commercial scenarios.

Customization:

Loupeng offers premium D-SUB / DVI Connector products, model number LP-DB043, designed to meet diverse customization needs. Manufactured in China and certified with ISO-9001:2000, our connectors ensure high quality and reliability. Our D-Sub High Density Connectors are available with contact plating options of gold or tin, providing excellent conductivity and durability.

We provide flexible mounting types including panel mount and cable mount, suitable for various applications such as D-Sub Monitor Connector configurations. The connectors feature plastic insulator materials, typically high-temperature thermoplastic, ensuring safety and performance under voltage ratings up to 250V.

With compliance to RoHS and REACH standards, our D-Sub High Density Connectors are environmentally friendly and safe for global use. Packaging options include tube or tray to suit your logistical preferences. The minimum order quantity is 1000PCS, priced competitively at 0.03 per unit.

We guarantee a delivery time of 7 to 10 days and support payment terms via T/T and L/C. With a supply ability of 100,000PCS, Loupeng is your trusted partner for customized D-SUB / DVI Connector solutions.

Support and Services:

Our D-SUB and DVI connectors are designed to meet the highest standards of quality and reliability. For technical support, please refer to the product datasheets and installation guides available on our website. We provide detailed specifications, wiring diagrams, and troubleshooting tips to assist with your installation and maintenance needs.

If you require further assistance, our experienced technical support team is available to help resolve any issues related to compatibility, signal integrity, or mechanical fit. We offer services including connector customization, cable assembly solutions, and bulk order support to meet your project requirements.

We recommend following all handling and installation guidelines to ensure optimal performance and longevity of the connectors. Regular inspection and proper cleaning can prevent common issues such as signal loss or connector damage.

For additional resources, including software tools and firmware updates that complement our D-SUB and DVI connectors, please visit our support portal. Our commitment is to provide comprehensive support to ensure your complete satisfaction with our products.

Packing and Shipping:

Product Packaging: Each D-SUB / DVI connector is carefully packaged in anti-static bags to prevent any electrostatic discharge damage during handling and transportation. The connectors are then placed in sturdy cardboard boxes with cushioning materials to ensure protection against physical impacts. Packaging labels include product specifications, quantity, and batch numbers for easy identification and inventory management.

Shipping: We offer reliable shipping options worldwide to ensure timely delivery of your D-SUB / DVI connectors. Products are shipped via trusted carriers with tracking information provided for each order. All shipments comply with international shipping regulations, and appropriate documentation is included to facilitate smooth customs clearance. Shipping methods can be selected based on speed and cost, including standard, expedited, and express services.
