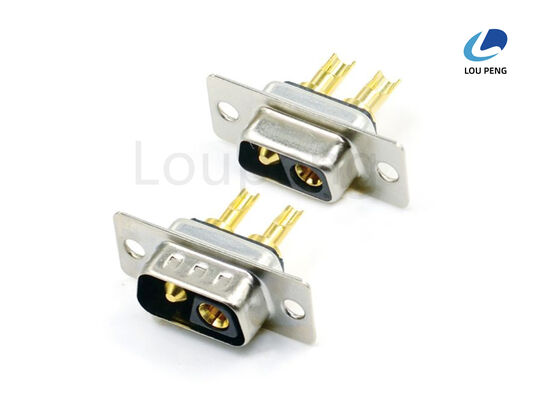

Copper Alloy Contact Material D-Sub Video Connector Durable Connector Suitable for Operating Temperature Range Minus 40 Celsius to Plus 85 Celsius

Product Description:

The D-SUB / DVI Connector is a versatile and widely used component designed to facilitate reliable and efficient connections in various electronic and computer systems. Known for its robust construction and dependable performance, this connector is essential in numerous applications, particularly in the realms of computer and display technology. It is commonly referred to under several terminologies such as the D-Sub Computer Connector, D-Sub Display Connector, and D-Sub Cable Connector, highlighting its adaptability across different types of interfaces and devices.

One of the most significant features of the D-SUB / DVI Connector is its insulator material, which is typically made from high-temperature thermoplastic. This plastic insulator ensures excellent electrical insulation and mechanical stability while being able to withstand high operating temperatures. The choice of high-temperature thermoplastic provides durability and resilience, making the connector suitable for demanding environments where heat resistance is crucial. This material also contributes to the longevity of the connector by preventing deformation or melting under thermal stress.

The shell of the D-SUB / DVI Connector is constructed from metal, usually steel or aluminum. This metal shell serves multiple purposes: it provides structural integrity, shields the internal contacts from electromagnetic interference (EMI), and protects the connector from physical damage. The sturdy metal housing ensures that the connector maintains a secure and stable connection even in conditions involving vibration or mechanical stress. The metallic shell also contributes to grounding and overall signal integrity, which is vital for high-performance data transmission.

Color options for the D-SUB / DVI Connector typically include blue, white, and black. These colors are not only aesthetic choices but often serve functional purposes, such as indicating the type or application of the connector in a system. For instance, blue connectors are commonly associated with VGA interfaces, while black and white variants might be used for different signal types or to match device color schemes. This color coding helps users quickly identify the correct connector and reduces the risk of improper connections.

The mounting type of the D-SUB / DVI Connector can be either panel mount or cable mount, offering flexibility to suit various installation requirements. Panel mount connectors are designed to be securely fixed onto a device or enclosure panel, providing a stable and accessible interface for external connections. Cable mount connectors, on the other hand, are attached directly to cables, enabling easy connection and disconnection in portable or modular systems. This versatility in mounting options allows the D-SUB / DVI Connector to be used in a wide range of applications, from desktop computers and monitors to industrial equipment and audiovisual devices.

The contact material used in the D-SUB / DVI Connector is typically a copper alloy. Copper alloy contacts are favored due to their excellent electrical conductivity, mechanical strength, and resistance to corrosion. These properties ensure that the connector can reliably transmit signals with minimal loss or interference. The copper alloy contacts also provide durability, maintaining good contact pressure and stability over many mating cycles. This is particularly important for connectors in environments where frequent plugging and unplugging occur.

In summary, the D-SUB / DVI Connector stands out as a high-quality, reliable solution for connecting computer and display interfaces. Its construction using high-temperature thermoplastic insulators, metal shells made of steel or aluminum, and copper alloy contacts ensures durability, performance, and longevity. The availability of multiple color options and mounting types further enhances its adaptability, making it suitable for a wide range of applications. Whether used as a D-Sub Computer Connector, D-Sub Display Connector, or D-Sub Cable Connector, this product provides a dependable connection solution that meets the rigorous demands of modern electronic systems.

Features:

• Product Name: D-SUB / DVI Connector
• Supports both Analog and Digital Data Transmission (DVI supports Digital Video)
• Available Colors: Blue, White, Black
• Mounting Type: Panel Mount and Cable Mount options
• Compliance Standards: RoHS and REACH certified
• Voltage Rating: Up to 250V
• Functions as a D-SUB Port Adapter for versatile connectivity
• Serves as a reliable D-Sub Cable Connector for secure connections
• Acts as a D-Sub Display Connector ensuring high-quality video transmission

Technical Parameters:

Applications:

The Loupeng LP-DB041 D-SUB / DVI Connector is an essential component widely used in various electronic and computer applications. As a high-quality D-Sub Computer Connector, it ensures reliable and stable connections for data transmission and signal integrity. Manufactured in China under ISO-9001:2000 certification, this product guarantees consistent quality and performance, making it ideal for both industrial and consumer electronics.

This D-Sub Cable Connector is perfectly suited for scenarios requiring secure and durable connections between devices such as computers, monitors, printers, and other peripherals. Its panel mount and cable mount options provide flexibility in installation, allowing it to be used in control panels, communication equipment, and networking devices. The connector’s high-temperature thermoplastic insulator material enhances durability and heat resistance, making it suitable for environments where temperature fluctuations are common.

The Loupeng LP-DB041 supports a current rating ranging from 1.0A to 3.0A per contact, accommodating various power requirements in electronic assemblies. With gold or tin plating on the contacts, this D-Sub Cable Connector ensures optimal conductivity and corrosion resistance, which is crucial for maintaining long-term connection reliability. Available in blue, white, and black colors, it also offers aesthetic options to fit different design needs.

With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, this connector is ideal for large-scale manufacturing and supply chain demands. The packaging options include tube or tray, facilitating easy handling and storage during shipping and assembly. Loupeng’s efficient delivery time of 7 to 10 days and flexible payment terms such as T/T and L/C further streamline procurement processes.

The Loupeng LP-DB041 connector is extensively used in computer hardware manufacturing, telecommunications, industrial automation, and consumer electronics. Whether in assembling desktop computers, connecting audiovisual equipment, or integrating industrial machines, this D-Sub Computer Connector provides a reliable interface solution. Its high supply ability, up to 100,000PCS, ensures that it can meet the demands of large projects and ongoing production requirements.

In summary, the Loupeng LP-DB041 D-Sub Cable Connector is an excellent choice for applications requiring robust, high-quality connectors with versatile mounting options and dependable electrical performance. Its certification, material quality, and production capacity make it a trusted component in a wide range of electronic and computer-related industries.

Customization:

The Loupeng LP-DB041 D-SUB Connector is a high-quality D-SUB Port Adapter designed to meet diverse connectivity needs. Manufactured in China and certified with ISO-9001:2000, this product ensures reliable performance and durability. The connector is available in various pin configurations, commonly 9, 15, 25, 37, 44, and 50 pins, making it suitable for multiple applications.

This D-SUB Analog Video Connector operates efficiently within a temperature range of -40°C to +85°C, with a current rating of 1.0A to 3.0A per contact. It comes in three attractive colors: blue, white, and black, allowing for easy identification and integration into different setups.

With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, Loupeng offers flexible packaging options including tube and tray to ensure safe delivery. The typical delivery time is between 7 to 10 days, supported by payment terms of T/T and L/C to facilitate smooth transactions.

Boasting a supply ability of 100,000PCS, this D-SUB Port Adapter is an ideal choice for large-scale projects requiring dependable connectors. Whether you need it for industrial, commercial, or personal use, the LP-DB041 model provides excellent connectivity solutions with consistent quality.

Support and Services:

Our D-SUB and DVI connector products are designed to provide reliable and high-performance connections for various electronic applications. We offer comprehensive technical support to ensure optimal product usage and customer satisfaction.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips. Our team is equipped to help you address any compatibility issues, signal integrity concerns, or physical installation challenges you may encounter.

We also provide detailed product datasheets, application notes, and technical drawings to support your design and integration processes. For customized solutions or special requirements, our engineering team is available to collaborate and provide tailored advice.

Additionally, we offer after-sales services including warranty support, repair services, and replacement options to ensure the longevity and reliability of your connectors.

Our goal is to deliver not only high-quality D-SUB and DVI connectors but also exceptional service to help you achieve seamless connectivity and performance in your projects.

Packing and Shipping:

Product Packaging: Each D-SUB / DVI Connector is carefully packaged to ensure maximum protection during transit. The connector is placed in an anti-static bag to prevent any electrostatic discharge damage. It is then secured within a custom-fitted foam insert or blister pack to avoid movement and impact. The packaging is labeled with product specifications, quantity, and handling instructions to facilitate easy identification and inventory management.

Shipping: We offer reliable shipping options to deliver your D-SUB / DVI Connectors promptly and safely. Products are shipped via trusted carriers with tracking information provided for every order. Depending on your location and urgency, standard, expedited, and express shipping methods are available. All shipments comply with international shipping regulations, and appropriate documentation is included for customs clearance when necessary.
