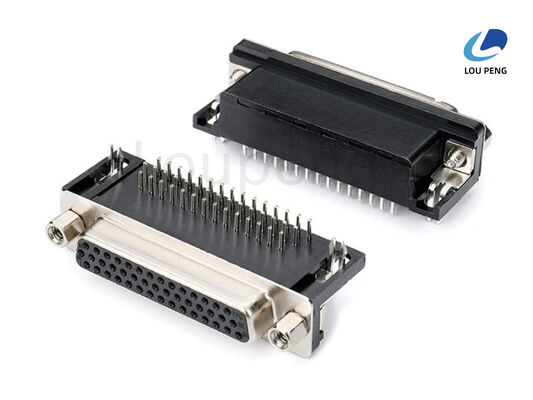

Copper Alloy Contact Material 44 Pins D SUB DVI Connector Current Rating 1.0A To 3.0A Per Contact Electrical Performance

Product Description:

The D-SUB / DVI Connector is a versatile and reliable solution designed for a wide range of electronic and video applications. This connector is specifically engineered to provide excellent performance in transmitting analog video signals, making it ideal for use as a D-SUB Analog Video Connector. Its robust design ensures a stable and secure connection, which is critical in various professional and consumer electronics setups.

One of the key features of this D-SUB / DVI Connector is its contact plating options. Customers can choose between gold-plated or tin-plated contacts, each offering distinct advantages. Gold plating provides superior corrosion resistance and excellent conductivity, which is essential for maintaining signal integrity over long periods of use. Tin plating, on the other hand, offers a cost-effective alternative with reliable performance, especially in environments where corrosion is less of a concern. These plating options make the connector adaptable to different environmental and budgetary requirements.

The insulator material used in the D-SUB / DVI Connector is a high-temperature thermoplastic plastic. This material is selected for its excellent thermal stability and durability, allowing the connector to operate efficiently within a wide temperature range. Specifically, the connector is rated to perform reliably from -40°C up to +85°C. This broad operating temperature range ensures that the connector can function in harsh environments, including industrial settings, outdoor installations, and other applications where temperature extremes are common.

Mounting flexibility is another important attribute of this connector. It is available in both panel mount and cable mount configurations, catering to diverse installation needs. The panel mount version is perfect for fixed installations where the connector is secured to a chassis or device housing, providing a robust interface point. Meanwhile, the cable mount variant is designed for direct attachment to cables, facilitating easy integration into custom wiring harnesses or portable equipment. This versatility in mounting options makes the D-SUB / DVI Connector suitable for a wide variety of applications, from professional video equipment to industrial control systems.

Compliance with international environmental and safety standards is a critical consideration in modern electronic components, and this connector meets those demands with full adherence to RoHS and REACH regulations. RoHS compliance ensures that the product is free from hazardous substances such as lead, mercury, and cadmium, which aligns with global efforts to reduce environmental impact and enhance user safety. REACH compliance further confirms that the materials used in the connector meet strict chemical safety standards, providing added assurance to manufacturers and end-users alike.

As a D-Sub Cable Connector, this product excels in delivering reliable analog video signals with minimal interference and signal loss. The connector’s precise manufacturing tolerances and high-quality materials contribute to consistent performance, making it a trusted choice for video signal transmission. Whether used in computer video interfaces, industrial monitors, or broadcast equipment, the D-SUB / DVI Connector ensures stable and clear video output.

In summary, the D-SUB / DVI Connector is a high-performance, adaptable component designed to meet the rigorous demands of modern electronic video systems. With options for gold or tin contact plating, a durable high-temperature thermoplastic insulator, and a wide operating temperature range from -40°C to +85°C, it offers exceptional reliability under varied conditions. Its availability in both panel mount and cable mount configurations provides installation flexibility, while full RoHS and REACH compliance guarantees environmental safety and regulatory adherence. Ideal for use as a D-SUB Analog Video Connector, D-Sub Cable Connector, or D-Sub Video Connector, this product stands out as a dependable choice for any application requiring secure and efficient analog video signal transmission.

Features:

• Product Name: D-SUB / DVI Connector
• Connector Type: D-SUB Connector
• Insulator Material: Plastic, typically High-temperature Thermoplastic
• Application: Video signal transmission for computers, monitors, and AV equipment
• Gender: Available in Male or Female options
• Contact Plating: Gold or Tin plated for enhanced conductivity and durability
• Includes D-Sub High Density Connectors for reliable and high-quality connections
• Functions as a D-Sub Computer Connector, ideal for various computer interfaces
• Supports D-SUB Analog Video Connector applications, ensuring clear analog video signals

Technical Parameters:

Applications:

The Loupeng LP-DB038 D-SUB / DVI Connector is a versatile and reliable solution designed for a wide range of video signal transmission applications. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality performance and durability, making it ideal for professional and industrial use. With a minimum order quantity of 1000PCS and a competitive price of 0.03 USD per unit, the LP-DB038 is perfect for bulk procurement. The product comes in convenient packaging options such as tube or tray, facilitating easy handling and storage, with a delivery time of 7 to 10 days to meet urgent demands.

In various application occasions, the Loupeng D-SUB Analog Video Connector is widely used in computer systems, monitors, and AV equipment where seamless video signal transmission is critical. Its ability to support both analog and digital data transmission, especially with the DVI interface supporting digital video, makes it an excellent choice for environments requiring high-definition and clear video output. Whether you are setting up a professional conference room, a multimedia workstation, or integrating AV equipment in entertainment systems, this connector ensures reliable connectivity and superior signal quality.

The LP-DB038 model features versatility in mounting types, available as panel mount or cable mount, catering to different installation needs. It also offers gender options, male or female, to suit various connection configurations and compatibility requirements. Available in blue, white, and black colors, the connector can easily blend with different hardware aesthetics. This adaptability makes it suitable for a broad spectrum of scenarios, including industrial control systems, broadcast equipment, and custom-built computer systems.

Moreover, the D-SUB Port Adapter function of the LP-DB038 enhances its usability by allowing easy conversion and connection between different types of D-Sub high density connectors and DVI interfaces. This is particularly useful in legacy system upgrades or when integrating older equipment with modern digital displays. The supply ability of 100,000PCS ensures that large projects and continuous production lines can be supported without interruption.

Payment terms such as T/T and L/C provide flexible financial options for businesses worldwide, making the Loupeng LP-DB038 connector not only a technically sound choice but also a commercially convenient one. In summary, the Loupeng LP-DB038 D-SUB / DVI Connector is an essential component for anyone needing dependable video signal transmission in professional and industrial contexts, offering quality, versatility, and affordability in one package.

Customization:

Loupeng offers high-quality D-Sub Cable Connector customization services with model number LP-DB038. Manufactured in China and certified to ISO-9001:2000 standards, our D-Sub High Density Connectors ensure reliable performance and durability. The connectors feature a plastic insulator made from high-temperature thermoplastic, and copper alloy contact material, providing excellent current ratings from 1.0A to 3.0A per contact.

Our D-Sub Cable Connector products are available with mounting options including panel mount and cable mount, catering to diverse application needs. We package the connectors in tube or tray packaging to ensure safe delivery. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per piece, Loupeng is equipped to supply up to 100,000PCS efficiently.

Delivery time is typically between 7 to 10 days, and we accept flexible payment terms such as T/T and L/C. Choose Loupeng’s D-Sub Cable Connector customization services for superior quality, timely delivery, and excellent customer support.

Support and Services:

Our D-SUB and DVI Connector products are designed to provide reliable and high-performance connectivity solutions for a wide range of electronic devices and applications. We offer comprehensive technical support to ensure optimal integration and operation of these connectors in your systems.

Technical support includes assistance with product selection, compatibility verification, and detailed guidance on installation and maintenance procedures. Our team is equipped to help troubleshoot any issues related to signal integrity, connector mating cycles, and environmental resistance.

We also provide customized services such as tailored connector configurations, cable assembly solutions, and specific packaging options to meet unique project requirements. Our commitment is to deliver connectors that meet industry standards and exceed customer expectations in durability and performance.

For ongoing product support, we offer detailed datasheets, application notes, and technical documentation to facilitate proper use and integration. Additionally, we continuously update our product line to incorporate the latest advancements in connector technology, ensuring that your applications benefit from cutting-edge solutions.

Our technical support team is dedicated to providing prompt and effective service to minimize downtime and enhance the overall user experience with D-SUB and DVI Connector products.

Packing and Shipping:

Product Packaging: Each D-SUB / DVI Connector is carefully packaged in an anti-static bag to protect against electrostatic discharge. The connectors are then placed in a sturdy cardboard box with cushioning material to prevent damage during transit. Packaging includes a label with product specifications, quantity, and batch number for easy identification and quality control.

Shipping: We offer reliable shipping options to ensure timely delivery of your D-SUB / DVI Connectors. Products are shipped via trusted carriers with tracking information provided upon dispatch. For bulk orders, we use palletized shipping to minimize handling and reduce the risk of damage. International shipments comply with all export regulations and are packaged to withstand long-distance transport.
