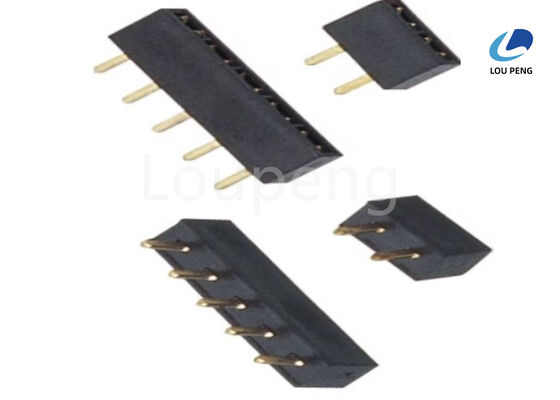

Polyester UL94V-0 Female Header Pin Connector Providing Stable Electrical Contact and Long Term Durability in Electronics

Product Description:

The Female Header Connector is an essential component widely used in electronic assemblies and circuit board designs. Designed with precision and durability in mind, this connector offers a reliable and efficient means of establishing electrical connections between various electronic parts. It is commonly referred to as the Female Pin Header Connector, Female Board Header Connector, or Female Socket Header Connector, highlighting its versatility and broad applicability in numerous electronic applications.

One of the standout features of this Female Header Connector is its robust housing made from high-quality polyester material that meets the UL94V-0 flammability rating. This ensures excellent fire resistance, providing enhanced safety and reliability under demanding operating conditions. The housing material is carefully selected to offer superior mechanical strength and thermal stability, making it suitable for both standard and high-performance electronic devices.

The contact material used in this Female Pin Header Connector is a combination of phosphor bronze and brass. Both materials are known for their excellent electrical conductivity and mechanical resilience. Phosphor bronze provides outstanding spring properties and resistance to wear and corrosion, while brass offers good strength and electrical performance. This combination ensures that the connector maintains a stable and secure electrical connection over time, even in environments subject to vibration or mechanical stress.

In addition to the housing and contact materials, the plastics material used in this connector is PA6T reinforced with 30% glass fiber. This composite material significantly enhances the connector’s mechanical properties, including its rigidity and dimensional stability. The glass fiber reinforcement also improves the heat resistance and durability of the connector, making it capable of withstanding harsh operating environments and repeated mating cycles without degradation.

The Female Board Header Connector is designed for easy and flexible mounting options, supporting both through-hole and Surface Mount Technology (SMT) mounting types. Through-hole mounting provides a strong mechanical bond by inserting the connector pins through holes on the printed circuit board (PCB) and soldering them on the opposite side, which is ideal for applications that require robust mechanical support. SMT mounting, on the other hand, allows the connector to be mounted directly onto the surface of the PCB, enabling more compact and lightweight designs. This dual mounting compatibility ensures that the connector can be integrated seamlessly into a wide range of PCB layouts and assembly processes.

Electrical insulation is a critical attribute of any connector, and the Female Socket Header Connector excels in this regard with an insulation resistance rating of at least 1000MΩ. This high insulation resistance ensures minimal leakage current and reliable isolation between adjacent pins, which is vital for maintaining signal integrity and preventing short circuits in complex electronic systems. The superior insulation performance also contributes to the overall safety and longevity of the electronic device.

Overall, the Female Header Connector is a high-quality, versatile component that combines excellent materials, robust construction, and flexible mounting options to meet the demanding requirements of modern electronic applications. Whether you are looking for a Female Pin Header Connector for general-purpose circuit connections, a Female Board Header Connector for PCB integration, or a Female Socket Header Connector for socket-type connections, this product offers outstanding performance, durability, and reliability.

Its use of UL94V-0 rated polyester housing, phosphor bronze and brass contacts, PA6T with 30% glass fiber plastics, and its superior electrical insulation capabilities make it an ideal choice for engineers and designers seeking a dependable connector solution. This connector is suitable for a broad spectrum of industries, including consumer electronics, telecommunications, automotive, industrial equipment, and more.

In summary, the Female Header Connector stands out as a premium connector solution that ensures secure electrical connections, excellent mechanical strength, and long-term reliability. Its comprehensive feature set and compatibility with various mounting techniques make it a valuable component for any electronic device or assembly requiring dependable female pin header connections.

Features:

• Product Name: Female Header Connector
• Mounting Type: Through Hole / SMT
• Compatible with Female PCB Header Connector, Female Wire Header Connector, and Female Pin Header Connector applications
• Available Plastics Height Options: 2.0mm, 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, 7.1mm, 8.5mm
• Gender: Female
• Pin Count Range: 2 to 40 Pins
• Designed for reliable and secure connections in electronic circuits
• Suitable for various mounting types including SMT and Through Hole

Technical Parameters:

Applications:

The LP-FH071 Female Header Connector, proudly manufactured in China and certified under ISO-9001:2000, is a versatile component designed to meet the demanding needs of modern electronic applications. This product, offered by the reputable brand LP, is available in various pitch sizes including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, making it highly adaptable for different circuit board designs. Its plastics height options range from 2.0mm to 8.5mm, accommodating diverse mechanical requirements. With a robust insulation resistance of 1000MΩ minimum and maximum processing temperatures of up to 230℃ for 30-60 seconds (and 260℃ for 5 seconds), the Female PCB Header Connector ensures reliable performance even under stringent soldering conditions.

The Female Connector Header Pin is widely utilized in various electronic products, particularly where secure and durable connections are critical. Its through-hole and SMT mounting types offer flexibility for both manual and automated assembly lines, catering to a wide range of manufacturing environments. The LP-FH071 model is packaged carefully in reels, tubes, trays, or polybags, enabling easy handling and integration into production workflows. With a minimum order quantity of 1000 pieces and a supply ability of up to 1,000,000 pieces, this connector is ideal for both small-scale projects and large-scale manufacturing.

In practical applications, the Female Header Socket Connector finds extensive use in consumer electronics, industrial machinery, telecommunications, automotive electronics, and medical devices. It serves as a reliable interface for connecting various modules and components on printed circuit boards (PCBs), facilitating signal transmission and power supply. The connector's precision pitch and robust construction make it an excellent choice for high-density PCB layouts, ensuring stability and minimizing signal interference. Additionally, its affordable price of 0.0001 per piece combined with flexible payment terms, including T/T and L/C, makes it an economically viable option for OEMs and contract manufacturers.

Whether used in prototyping, product development, or mass production, the LP Female PCB Header Connector enhances system reliability and assembly efficiency. Its well-engineered design supports quick and secure mating with corresponding male header pins, making it a staple in electronic connector solutions. The LP-FH071 Female Connector Header Pin is especially suited for applications requiring high insulation resistance and thermal endurance, such as in automotive control units or industrial control panels. Overall, this connector is a crucial component in ensuring seamless electrical connections across a broad spectrum of electronic devices and systems.

Customization:

Our Female Electrical Header Connector, model LP-FH071 from the trusted LP brand, offers exceptional quality and customization options to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this Female Inline Header Connector ensures reliable performance and durability.

We provide a minimum order quantity of 1000PCS with a competitive price of 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics requirements. Delivery time is typically between 7 to 10 days, supported by flexible payment terms such as T/T and L/C.

With a supply ability of 1,000,000PCS, this Female Pin Header Connector is designed for both Through Hole and SMT mounting types, offering versatility for various applications. The pins are made from high-quality Phosphor Bronze or Brass, with contact plating options of Au or SN over 40n for enhanced conductivity and corrosion resistance.

The housing is constructed from durable Polyester (UL94V-0), ensuring safety and compliance with industry standards. Whether you require customization in pin material, plating, mounting type, or packaging, our product customization services are tailored to deliver the perfect Female Electrical Header Connector solution for your project.
