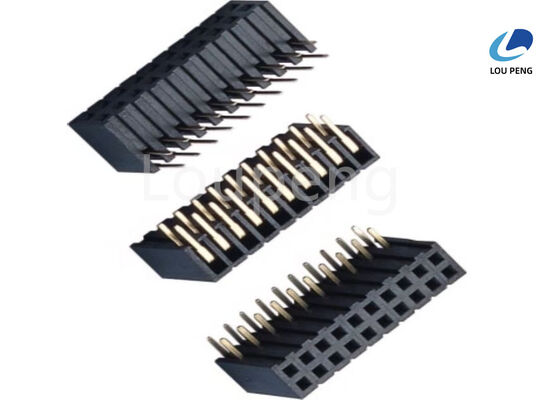

1.27mm Pitch Female PCB Header Connector Offering 1000MΩ Min Insulation Resistance Ideal for Compact Electronic Designs

Product Description:

The Female Header Connector is a versatile and reliable component designed for a wide range of electronic applications. Engineered to provide secure and efficient connections, this connector is ideal for use as a Female Inline Header Connector, Female Header Socket Connector, or Female Board Header Connector, making it a flexible choice for various circuit board and wiring projects.

One of the key features of this Female Header Connector is its robust construction, which ensures durability and long-lasting performance. The connector's plastic material is made from PA6T reinforced with 30% glass fiber, providing excellent mechanical strength and resistance to wear and tear. This high-quality plastic compound not only enhances the connector’s structural integrity but also contributes to its ability to withstand harsh operating conditions.

In terms of thermal performance, the Female Header Connector is designed to handle a maximum processing temperature of 230°C for 30 to 60 seconds, with the capability to endure brief exposure up to 260°C for 5 seconds. This makes it suitable for soldering processes that require precise temperature control, ensuring that the connector maintains its functionality without damage during assembly or rework. Additionally, the operating temperature range of -40°C to +105°C allows this connector to perform reliably in both extreme cold and elevated heat environments, making it suitable for a wide array of applications including automotive, industrial, and consumer electronics.

The insulator material used in this Female Header Connector is a high-grade polyester rated UL94V-0, which means it has excellent flame-retardant properties. This ensures enhanced safety by minimizing the risk of fire hazards in electronic assemblies. The combination of the polyester insulator and the glass fiber-reinforced plastic housing provides a stable and secure environment for the connector’s electrical contacts.

Electrical performance is another critical aspect of this Female Header Connector. It has a current rating of 1.5 amps, which is adequate for many low to medium power applications. This current rating ensures that the connector can efficiently transmit electrical signals or power without overheating or suffering from voltage drops, thereby maintaining signal integrity and overall system reliability.

Designed for ease of use, the Female Header Connector is compatible with a variety of male header pins and can be easily integrated into inline, socket, or board header configurations. This versatility makes it an excellent choice for engineers and technicians who require a dependable connector that can be used interchangeably in different setups. Whether you need a Female Inline Header Connector for wire-to-board connections, a Female Header Socket Connector for plug-and-play applications, or a Female Board Header Connector for PCB mounting, this product meets those demands with precision and consistency.

In summary, the Female Header Connector combines high-quality materials, excellent thermal and electrical performance, and versatile design to deliver a dependable solution for electronic connectivity. Its ability to withstand high processing temperatures, broad operating temperature range, flame-retardant properties, and suitable current rating make it a top choice for professionals seeking reliable female connectors. By choosing this connector, users can ensure secure connections, enhanced durability, and optimal performance across a wide spectrum of electronic applications.

Features:

• Product Name: Female Header Connector
• Compatible Server: Openresty
• Gender: Female
• Available Pins: 2 to 40 Pins
• Types Available: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Mounting Types: Through Hole, SMT
• Also known as Female Pin Header Connector
• Ideal for use as Female Connector Header Pin in various electronic applications
• Durable and reliable Female Pin Header Connector ensuring stable connections

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH067, is a highly reliable and versatile component designed for a wide range of electronic applications. Manufactured in China under the strict ISO-9001:2000 certification, this product guarantees quality and durability. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it is an excellent choice for both small and large-scale projects. The LP Female Board Header Connector is available in various packaging options including Reel, Tube, Tray, and Polybag, ensuring convenient handling and storage. Its delivery time ranges from 7 to 10 days, supported by flexible payment terms such as T/T and L/C, making procurement efficient and hassle-free.

This Female Connector Header Pin is designed to operate efficiently within a working temperature range of -40 ℃ to +105 ℃, making it suitable for use in both harsh and controlled environments. The connector is made from PA6T, a high-quality plastic standard known for its excellent mechanical strength and thermal stability. The plastics height options range from 2.0mm to 8.5mm (including 3.12mm, 4.3mm, 4.5mm, 5.0mm, 5.9mm, 6.35mm, and 7.1mm), providing flexibility to fit various PCB designs and assembly requirements.

The Female Inline Header Connector from LP is widely used in multiple scenarios such as consumer electronics, telecommunications equipment, industrial machinery, automotive electronics, and computer peripherals. Its robust design ensures secure and stable connections in devices requiring frequent mating and unmating cycles. It is particularly favored in applications where space is limited but reliable electrical connections are essential. The connector’s compatibility with standard PCB layouts and its high supply ability of 1,000,000PCS make it a preferred choice for manufacturers seeking both quality and scalability.

Thanks to its versatility and adherence to international standards, the LP Female Header Connector is ideal for use in prototyping, production lines, and repair services. It supports seamless integration with various electronic modules, enabling engineers and designers to develop innovative solutions with confidence. Additionally, the product’s support through Openresty server systems facilitates efficient online ordering and customer service, enhancing the overall user experience.

Customization:

Our Female Header Connector product, model LP-FH067 by the trusted brand LP, offers exceptional quality and customization options. Manufactured in China and certified with ISO-9001:2000, this Female Connector Header Pin ensures reliable performance for various electronic applications.

We provide customization services with a minimum order quantity of 1000PCS, priced competitively at 0.0001 per unit. The product features high-quality materials including phosphor bronze or brass pin material, PA6T with 30% glass fiber plastics material, and plating options of gold or tin to meet your specific requirements.

The Female PCB Header Connector is designed with durable insulators made from LCP, Nylon, or PA6T (UL94V-0), ensuring excellent insulation and safety standards. Packaging options are flexible, including reel, tube, tray, or polybag to suit your logistics needs.

With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, we guarantee fast and efficient fulfillment. Payment terms are convenient with T/T and L/C options available. Trust our Female Header Socket Connector customization services for a seamless integration into your production line.

Support and Services:

Our Female Header Connector is designed to provide reliable and secure connections in a variety of electronic applications. For technical support, please refer to the product datasheet for detailed specifications, pin configurations, and recommended usage guidelines.

Ensure proper alignment and insertion force during installation to avoid damage to the connector or mating components. Use appropriate soldering techniques as specified to maintain connection integrity and avoid cold joints.

If you encounter any issues such as poor connectivity or mechanical failure, verify that the connector is compatible with your application requirements and that all installation procedures were correctly followed.

For additional services, we offer customization options including different pin counts, pitches, and plating materials to suit specific project needs. Custom orders can be discussed with our sales team to ensure the best fit for your application.

Regular inspection and maintenance of the connectors in your assemblies can prolong product life and ensure optimal performance. Clean contacts periodically to prevent oxidation and maintain good electrical conductivity.

We are committed to providing quality support and services to help you achieve the best results with our Female Header Connectors. Please consult our online resources for FAQs, troubleshooting guides, and application notes.
