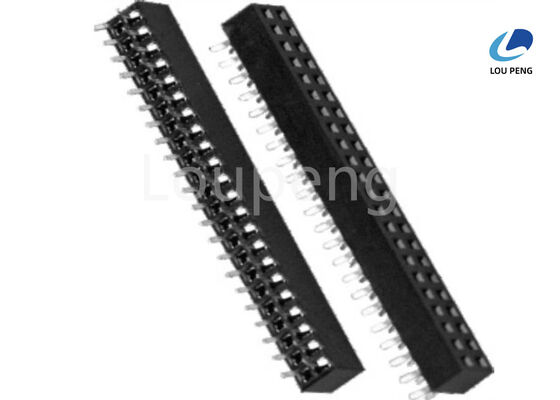

Max Processing Temp 230C For 30-60 Seconds Female Socket Header Connector Withstanding Voltage AC 500V Durable Electrical Component

Product Description:

The Female Header Connector is a vital component in modern electronic assemblies, designed to provide reliable and efficient connections between circuit boards and various electronic devices. This product is widely recognized in the industry for its precision engineering, durability, and excellent electrical performance, making it an ideal choice for a broad range of applications.

At the core of the Female Header Connector’s design is its use of high-quality materials. The pins are crafted from phosphor bronze or brass, both of which are known for their superior conductivity and mechanical strength. Phosphor bronze offers excellent spring properties and corrosion resistance, ensuring a stable and long-lasting connection. Brass, on the other hand, provides good electrical conductivity and is highly machinable, making it suitable for various manufacturing processes. These materials contribute significantly to the overall reliability and performance of the Female Connector Header Pin.

The contact plating of the Female Electrical Header Connector is another critical aspect that enhances its functionality. The contacts are plated with either gold (Au) or tin (Sn) over a 40 microinch base, which ensures excellent conductivity and protects against oxidation and corrosion. Gold plating is particularly valued for its superior resistance to tarnishing and its ability to maintain low contact resistance over time, which is essential for high-performance and precision electronic applications. Tin plating, while more cost-effective, also provides good solderability and corrosion resistance, making the Female Pin Header Connector versatile for different use cases.

In terms of thermal performance, the Female Header Connector is engineered to withstand high processing temperatures. It can endure a maximum processing temperature of 230°C for 30 to 60 seconds, making it compatible with most standard soldering processes used in electronic manufacturing. Additionally, it can tolerate brief exposures to temperatures as high as 260°C for up to 5 seconds. This thermal resilience ensures that the connector maintains its structural integrity and electrical properties even during rigorous assembly procedures, contributing to the overall reliability of the electronic device.

The operational temperature range of the Female Electrical Header Connector is designed to accommodate a wide variety of environmental conditions. It functions effectively in temperatures ranging from -40°C to +105°C. This broad temperature range makes it suitable for use in harsh environments, including industrial, automotive, and outdoor applications where temperature fluctuations are common. The ability to perform consistently across this spectrum ensures that the Female Connector Header Pin remains dependable in diverse operating conditions.

The combination of phosphor bronze or brass for the contact material, along with the high-quality contact plating and robust thermal characteristics, results in a Female Pin Header Connector that meets stringent industry standards. It offers excellent electrical conductivity, mechanical resilience, and resistance to environmental stressors. These attributes make it a preferred choice for manufacturers seeking a dependable female connector solution for their electronic assemblies.

Moreover, the Female Header Connector is designed to provide secure and precise connections, minimizing the risk of poor contacts or signal loss. Its design facilitates easy mating with corresponding male headers, ensuring a stable and reliable connection that is crucial for maintaining signal integrity and system performance. Whether used in communication devices, automotive electronics, industrial machinery, or consumer electronics, this connector consistently delivers high performance and durability.

In summary, the Female Connector Header Pin is an essential component that combines high-quality materials, advanced plating techniques, and robust thermal and operational capabilities. Its design and construction ensure excellent electrical performance, durability, and reliability across a wide range of applications and environments. For those seeking a premium Female Electrical Header Connector or Female Pin Header Connector, this product offers an outstanding balance of performance, quality, and versatility, making it an excellent choice for all your electronic connection needs.

Features:

• Product Name: Female Header Connector
• Types Available: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Material: PA6T with 30% Glass Fiber for enhanced durability
• Working Temperature Range: -40 ℃ to +105 ℃
• Mounting Types: Through Hole and Surface Mount Technology (SMT)
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm
• Includes Female Socket Header Connector functionality for reliable connections
• Designed as a Female Electrical Header Connector for versatile electrical applications
• Available as a Female Inline Header Connector for easy integration into various layouts

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH069, is a highly versatile and reliable component designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this Female Inline Header Connector offers excellent performance and durability, making it an ideal choice for both industrial and consumer electronics. With a contact resistance of only 30mΩ max and the ability to withstand maximum processing temperatures of 230℃ for 30-60 seconds (and up to 260℃ for 5 seconds), the LP-FH069 ensures secure and stable electrical connections even under demanding conditions.

Commonly used as a Female Header Pin Connector, this product is perfect for applications requiring compact, reliable interconnections. Its construction from PA6T reinforced with 30% glass fiber enhances its mechanical strength and heat resistance, supporting various plastics heights ranging from 2.0mm up to 8.5mm. This range of heights allows the connector to be tailored to different design requirements, making it suitable for versatile mounting and integration scenarios.

The Female Pin Header Connector from LP is widely applied in the manufacturing of computer motherboards, communication devices, automotive electronics, industrial control systems, and consumer gadgets. Its packaging options, including reel, tube, tray, and polybag, facilitate efficient handling and assembly in high-volume production environments. With a minimum order quantity of 1000PCS and a supply ability of up to 1,000,000PCS, this connector supports large-scale manufacturing needs without compromising quality or delivery timelines, typically ranging from 7 to 10 days.

Additionally, the LP-FH069 supports convenient payment terms such as T/T and L/C, making procurement straightforward for businesses worldwide. Its compact design and robust material composition enable reliable signal transmission and power delivery in tight spaces, ideal for electronic devices where space is at a premium. Whether used in prototyping or mass production, the Female Inline Header Connector by LP offers exceptional versatility, durability, and cost-efficiency, priced competitively at 0.0001 per piece.

In summary, the LP Female Header Connector (LP-FH069) is an essential component for engineers and manufacturers seeking a dependable Female Header Pin Connector solution. Its certified quality, mechanical resilience, and adaptability to various plastics heights make it suitable for numerous application occasions and scenarios, including consumer electronics, automotive systems, industrial automation, and communication equipment. The connector’s ability to maintain excellent electrical contact and withstand high temperatures ensures long-term performance and reliability in diverse environments.

Customization:

Introducing the LP Female Header Connector, model number LP-FH069, proudly made in China with ISO-9001:2000 certification, ensuring top quality and reliability. Designed for versatile applications, this female connector header pin is available in multiple types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows to meet your specific needs.

Our female electrical header connector features a current rating of 1.5 Amps and uses high-quality polyester (UL94V-0) as the insulator material, providing excellent durability and safety. The contact is made from premium copper alloys, guaranteeing superior conductivity and long-lasting performance.

The product is supplied with flexible packaging options including Reel, Tube, Tray, or Polybag, tailored to your requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, we ensure affordability without compromising quality.

We maintain a strong supply ability of 1,000,000PCS, enabling prompt delivery within 7 to 10 days. Payment terms include T/T and L/C for your convenience. Our female wire header connector is supported by Openresty server for seamless order processing and customer service.

Customize your female connector header pin today with LP and experience exceptional service and product excellence designed to fit your specific electrical connection needs.
