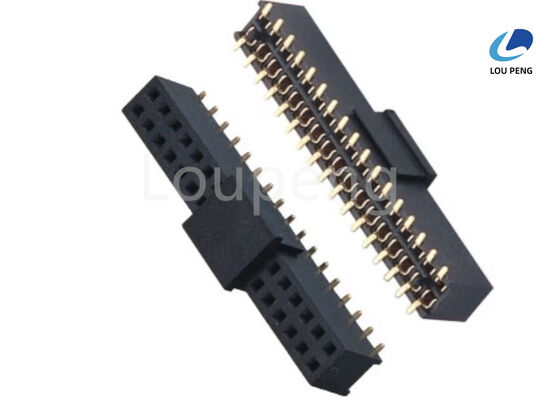

Copper Alloys Female Header Connector Vertical Right Angle SMT Single Row Double Row Three Rows Insulation Resistance 1000MΩ Min

Product Description:

The Female Header Connector is a versatile and reliable component designed to meet the demanding requirements of modern electronic applications. Engineered for durability and performance, this connector is ideal for various uses, including as a Female Inline Header Connector, Female PCB Header Connector, or Female Wire Header Connector. Its design ensures seamless integration with different systems, providing secure and efficient connections that enhance overall device functionality.

One of the standout features of this Female Header Connector is its wide operating temperature range. Capable of functioning flawlessly between -40° and +105° Celsius, it is well-suited for environments that experience extreme temperature fluctuations. This makes it an excellent choice for automotive, industrial, and outdoor electronic applications where reliability under harsh conditions is critical.

The connector's plating options include both gold and tin finishes, allowing users to select the most appropriate surface treatment based on their specific needs. Gold plating offers superior corrosion resistance and excellent conductivity, making it ideal for high-reliability applications where long-term performance is essential. Tin plating provides a cost-effective alternative with good solderability and adequate protection against oxidation, suitable for less demanding environments.

Understanding that different projects require various connector sizes, this Female Header Connector is available in multiple pitch configurations. The pitch options include 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, catering to a wide range of spacing requirements between pins. This flexibility ensures compatibility with numerous PCB layouts and wiring arrangements, making it a highly adaptable component for both prototype development and mass production.

The insulator material used in this connector is high-quality polyester rated UL94V-0. This flame-retardant material enhances the safety and durability of the connector by providing excellent electrical insulation and resistance to high temperatures. The UL94V-0 rating guarantees that the material will self-extinguish quickly in case of fire, reducing the risk of damage and improving overall device safety.

In terms of electrical performance, the Female Header Connector is rated to handle currents up to 1.5 Amps. This current rating is suitable for a broad spectrum of applications, from low-power signal transmission to moderate power delivery in electronic modules. The connector’s robust design ensures stable electrical contact, minimizing the risk of connection failures and signal loss.

Whether used as a Female Inline Header Connector for connecting wires inline, a Female PCB Header Connector for mounting onto printed circuit boards, or a Female Wire Header Connector for wire-to-board connections, this product offers consistent and reliable performance. Its combination of durable materials, versatile pitch options, and adaptable plating finishes make it a preferred choice among engineers and designers seeking dependable connection solutions.

In summary, the Female Header Connector is a high-quality, adaptable component that addresses the needs of various electronic applications. Its operating temperature range of -40° to +105°, choice of gold or tin plating, multiple pitch sizes, UL94V-0 rated polyester insulator, and 1.5 Amp current rating collectively contribute to its outstanding reliability and functionality. Whether for industrial, automotive, consumer electronics, or other uses, this connector delivers the performance and safety required for modern electronic systems.

Features:

• Product Name: Female Header Connector
• Also known as Female Board Header Connector, Female Electrical Header Connector, and Female PCB Header Connector
• Max. Processing Temperature: 230℃ for 30-60 seconds (260℃ for 5 seconds)
• Insulation Resistance: 1000MΩ Minimum
• Contact Material: Copper Alloys
• Housing Material: PA6T + 30% Glass Fiber
• Contact Resistance: 30mΩ Maximum

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH066, is a versatile and reliable component designed to meet diverse application needs in the electronics industry. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality standards and consistent performance. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, it is ideal for bulk procurement, catering to both small and large-scale manufacturing requirements. Priced competitively at 0.0001 per unit, it offers excellent cost-efficiency for businesses.

This Female Pin Header Connector is widely used in various electronic devices and assemblies, providing secure and stable connections. Its working temperature range from -40℃ to +105℃ makes it suitable for applications in both cold and hot environments, ensuring durability and reliability under different operating conditions. Additionally, the connector supports a current rating of 1.5 Amps and can withstand an AC voltage of 500V, making it suitable for low to medium power electronic circuits.

The LP-FH066 model supports both Through Hole and Surface Mount Technology (SMT) mounting types, providing flexibility in PCB design and assembly processes. The connector’s maximum processing temperature of 230℃ for 30-60 seconds (or 260℃ for 5 seconds) ensures compatibility with standard soldering procedures, facilitating easy integration into automated manufacturing lines. Packaging options including Reel, Tube, Tray, and Polybag further support efficient handling and storage, adapting to various production and logistics requirements.

In practical applications, the Female Wire Header Connector is commonly employed in communication devices, consumer electronics, automotive systems, and industrial control equipment. Its compact design and reliable electrical performance make it an excellent choice for connecting wires to printed circuit boards, enabling seamless signal and power transmission. The Female Electrical Header Connector also finds use in prototyping and repair work, offering a dependable solution for quick and secure connections.

With flexible payment terms such as T/T and L/C, and a delivery time of 7 to 10 days, the LP Female Header Connector is designed to meet the demands of modern supply chains, ensuring timely availability and smooth transaction processes. Overall, the LP-FH066 Female Header Connector stands out as a high-quality, cost-effective, and versatile component, perfectly suited for a wide range of electronic applications and scenarios.

Customization:

Introducing the LP brand Female Wire Header Connector, model number LP-FH066, proudly made in China. This Female Electrical Header Connector is certified with ISO-9001:2000, ensuring high quality and reliability for your applications.

Our Female Pin Header Connector features excellent electrical performance with a withstanding voltage of AC 500V, contact resistance of 30mΩ max, and insulation resistance of 1000MΩ min. It operates efficiently within a wide temperature range of -40 ℃ to +105 ℃.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag to suit your needs. The minimum order quantity is 1000PCS, with a competitive price of 0.0001 per piece and a supply ability of up to 1,000,000PCS.

Delivery time is typically between 7 to 10 days, and we accept payment terms via T/T and L/C. Trust LP’s Female Wire Header Connector for your reliable and durable connection solutions, supported by our dedicated server powered by Openresty.

Support and Services:

Our Female Header Connectors are designed to provide reliable and secure connections in a variety of electronic applications. For technical support, please refer to the product datasheet for detailed specifications, pin configurations, and mechanical drawings.

If you encounter any issues during installation or use, ensure that the connectors are aligned properly and that the mating components are compatible in terms of pitch and pin count. Avoid applying excessive force which might damage the connector or the PCB.

For optimal performance, maintain a clean environment to prevent contamination of the contacts and use appropriate soldering techniques as recommended in the product guidelines. We recommend using ESD-safe tools and following anti-static protocols when handling the connectors.

Our technical support team is available to assist with product selection, troubleshooting, and customization options to meet your specific requirements. Please have your product part number and application details ready when seeking assistance.

Additional services include custom packaging, bulk order support, and value-added services such as assembly and testing. We are committed to providing high-quality products and responsive support to ensure your project's success.

Packing and Shipping:

Each Female Header Connector is carefully packaged to ensure protection during transit. The connectors are placed in anti-static bags to prevent electrostatic discharge damage, then securely packed in sturdy cardboard boxes to avoid physical damage.

For bulk orders, the connectors are organized in trays or reels, depending on the customer's requirements, and labeled clearly for easy identification.

Shipping is carried out through reliable carriers with tracking options available. We offer various shipping methods including standard, expedited, and express delivery to meet your timeline needs.

All packages are inspected before dispatch to guarantee the product quality and correct quantity. Customers will receive a confirmation email with tracking details once the order has been shipped.
