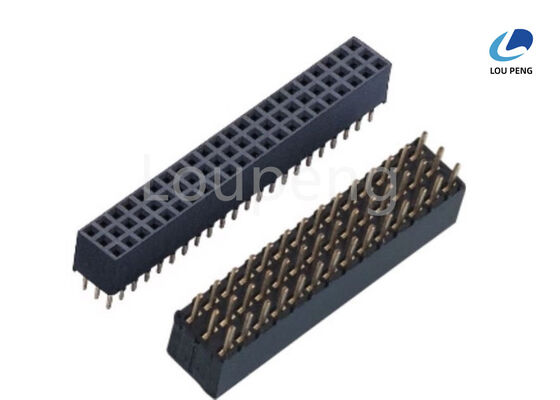

Plastics Height 5 Point 9 Millimeters Female Connector Header Pin PA6T 30 Percent Glass Fiber High Strength Connector Pin

Product Description:

The Female Header Connector is a highly reliable and versatile component designed for various electronic applications. Known for its exceptional performance and durability, this connector is an essential part of modern electronic assemblies. It is specifically engineered to provide a secure and stable connection, making it an ideal choice for both industrial and consumer electronics. Whether you are working on a complex circuit board or a simple electronic device, the Female Header Connector ensures seamless electrical connectivity and efficient signal transmission.

One of the key features of this Female Connector Header Pin is its superior contact material. The contacts are crafted from high-quality Phosphor Bronze or Brass, materials renowned for their excellent conductivity and mechanical strength. These metals ensure minimal electrical resistance and provide a long-lasting connection that withstands repeated mating cycles. The use of Phosphor Bronze or Brass also contributes to the connector's resilience against corrosion and wear, thereby enhancing the overall lifespan of the component.

The material used for the body of the Female Header Socket Connector is PA6T reinforced with 30% glass fiber. This composite material offers outstanding mechanical stability and resistance to heat, making the connector suitable for demanding environments. The inclusion of glass fibers significantly increases the tensile strength and rigidity of the housing, ensuring that it maintains its shape and integrity even under mechanical stress. This robust construction allows the Female PCB Header Connector to perform reliably in applications where durability and performance are critical.

The insulator material is another crucial aspect of this connector. It is made from high-grade Polyester with a UL94V-0 flammability rating, which means it is highly flame-retardant and safe for use in electronic devices. This ensures that the connector meets strict safety standards and reduces the risk of fire hazards in case of electrical faults. The Polyester insulator provides excellent electrical insulation properties, preventing short circuits and maintaining signal integrity throughout the connection.

In terms of plating, the contacts of the Female Header Connector are plated with either gold (Au) or tin (Sn) over a 40 microinch (40n) thickness. Gold plating is widely recognized for its superior corrosion resistance and excellent electrical conductivity, which ensures low contact resistance and stable signal transmission. Tin plating, on the other hand, offers cost-effective protection against oxidation and provides reliable performance in various environmental conditions. The choice between gold and tin plating allows users to select the most suitable option based on their specific application requirements and budget considerations.

The Female Header Connector is designed for ease of installation and compatibility with standard PCB layouts. Its female gender configuration allows it to mate seamlessly with male header pins, creating a secure and reliable connection interface. This makes it an indispensable component in applications such as computer motherboards, communication devices, industrial control systems, and consumer electronics. The connector's design also facilitates easy replacement and maintenance, reducing downtime and enhancing overall system reliability.

Additionally, the Female Connector Header Pin is available in various pin counts and configurations, allowing designers to choose the perfect fit for their project needs. Its compact size and standardized dimensions ensure it can be integrated into a wide range of electronic devices without occupying excessive board space. This flexibility makes the Female Header Socket Connector a preferred choice for engineers looking to optimize their designs for both performance and space efficiency.

In conclusion, the Female PCB Header Connector stands out as a high-quality, durable, and efficient solution for establishing electrical connections in electronic assemblies. With its robust contact materials like Phosphor Bronze and Brass, reinforced PA6T+30% glass fiber housing, flame-retardant Polyester insulator, and reliable Au or Sn plating, it guarantees excellent performance and longevity. Whether you need a dependable Female Connector Header Pin for prototyping or a rugged Female Header Socket Connector for high-volume production, this product meets and exceeds the demands of modern electronic applications.

Features:

• Product Name: Female Header Connector
• Also known as Female Board Header Connector, Female Header Socket Connector, and Female Pin Header Connector
• Insulator materials: LCP, NYLON, PA6T (UL94V-0 rated)
• Housing made of Polyester with UL94V-0 flame retardant rating
• Available types: Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows
• Maximum processing temperature: 230℃ for 30-60 seconds, 260℃ for 5 seconds
• Withstanding voltage: AC 500V

Technical Parameters:

Applications:

The LP-FH065 Female Header Connector from the reputable LP brand is a versatile and reliable component widely used in various electronic applications. Originating from China and certified with ISO-9001:2000, this female electrical header connector is designed to meet high-quality standards and ensure excellent performance in demanding environments. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, it offers great value for manufacturers and designers alike. The product is available with flexible packaging options, including reel, tube, tray, and polybag, facilitating convenient handling and integration into automated assembly lines.

Thanks to its outstanding electrical properties—such as an insulation resistance of at least 1000MΩ and a contact resistance not exceeding 30mΩ—this female socket header connector guarantees stable and efficient electrical connections. Its copper alloy contacts provide excellent conductivity and durability, making it ideal for use in circuits where consistent signal integrity is crucial. The connector’s working temperature range from -40 ℃ to +105 ℃ allows it to perform reliably in a wide variety of environmental conditions, from industrial machinery to consumer electronics.

The LP-FH065 female PCB header connector is commonly employed in many occasions and scenarios. It is extensively used on printed circuit boards (PCBs) for connecting various modules, sensors, and peripherals in electronic devices. Its female gender design ensures secure mating with male headers, making it a preferred choice for embedded systems, communication equipment, automotive electronics, and industrial control systems. The connector’s robust insulation and contact resistance characteristics make it suitable for use in harsh environments, including outdoor installations and high-vibration applications.

In addition to industrial and automotive sectors, this female electrical header connector is also widely adopted in consumer electronics, such as home appliances, audio devices, and computer hardware. Its efficient delivery time of 7 to 10 days and flexible payment terms including T/T and L/C add to its appeal for large-scale manufacturing and procurement. With a supply ability of up to 1,000,000PCS, LP can meet the demands of high-volume production runs, ensuring consistent availability and supply chain reliability.

Overall, the LP-FH065 Female Header Connector stands out as a high-quality, dependable female socket header connector ideal for a broad spectrum of electronic assembly occasions and scenarios. Its combination of quality certification, excellent electrical properties, and adaptability across various industries makes it a vital component in modern electronic design and manufacturing.

Customization:

Our LP Female Header Connector (Model Number: LP-FH065) offers versatile product customization services to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, this Female Connector Header Pin is available with pins ranging from 2 to 40, made from high-quality phosphor bronze or brass contact materials.

The Female Board Header Connector supports various insulator materials including LCP, NYLON, and PA6T (UL94V-0), ensuring durability and reliable performance within a working temperature range of -40 ℃ to +105 ℃. We provide flexible packaging options such as Reel, Tube, Tray, or Polybag to accommodate your logistical preferences.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, we guarantee a supply ability of up to 1,000,000PCS. Delivery time is typically between 7 to 10 days, and payment terms include T/T and L/C for your convenience.

Whether you require a Female Wire Header Connector for board-to-wire applications or custom configurations, our LP-FH065 Female Header Connector is designed to fulfill your specialized requirements with quality and efficiency.
