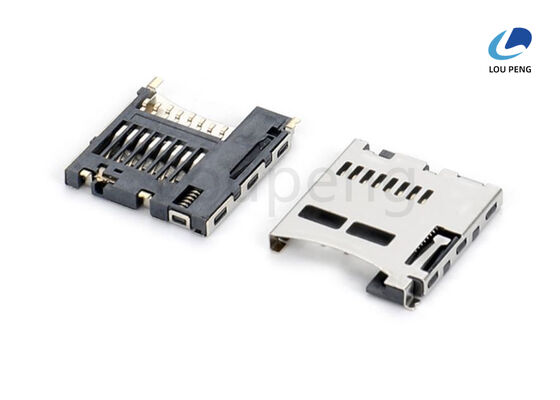

RoHS Compliant SD Holder Connector Plastic and Metal Construction with Insulation Resistance 1000 MΩ Minimum Durable

Product Description:

The SD Holder Connector is an essential component designed to provide a reliable and efficient interface for Secure Digital (SD) memory cards. This product is specifically engineered to accommodate SD Memory Card Holder applications, ensuring a seamless connection between the SD card and the host device. With its robust construction and high-quality materials, the SD Holder Connector guarantees optimal performance in various electronic devices such as cameras, smartphones, tablets, and other portable gadgets that require SD card reading capabilities.

One of the key features of this SD Holder Connector is its use of a high-grade SWP spring mechanism. The SWP spring provides consistent and secure contact pressure, which is crucial for maintaining stable electrical connections within the Secure Digital Card Slot. This spring mechanism enhances the durability and reliability of the connector by preventing card misalignment and ensuring that the SD card remains firmly in place during insertion and removal. As a result, users experience fewer connection issues and longer product lifespan.

The linkage component of this connector is crafted from high-quality stainless steel. The use of stainless steel for the link not only adds mechanical strength and resistance to wear but also offers excellent corrosion resistance, making the SD Card Reader Connector suitable for use in varying environmental conditions. This ensures that the connector maintains its structural integrity over time, even when subjected to frequent use or exposure to moisture and other potential contaminants.

Contacts within the SD Holder Connector are made from phosphor bronze, a material known for its excellent electrical conductivity and mechanical resilience. Phosphor bronze contacts provide reliable signal transmission with minimal resistance and are less prone to oxidation compared to other metals. This choice of contact material directly contributes to the overall efficiency of the SD Memory Card Holder, allowing for smooth data transfer and minimizing the risk of connection failures, which is critical for preserving the integrity of data stored on SD cards.

In terms of electrical performance, the SD Holder Connector supports a contact current rating of up to 0.5 amperes. This current rating is suitable for the power requirements of typical SD memory cards and ensures stable electrical connections during data reading and writing processes. The carefully engineered contact design and current rating work together to minimize power loss and heat generation, thus enhancing the safety and reliability of the device in which the connector is installed.

Compliance with environmental and safety standards is a top priority in the design and manufacture of this SD Card Reader Connector. The product fully complies with both RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) standards. These certifications guarantee that the connector is free from harmful substances such as lead, mercury, and cadmium, making it an environmentally responsible choice for manufacturers and end-users alike. The compliance with such standards also ensures that the SD Holder Connector meets stringent global regulatory requirements, allowing it to be used safely in a wide range of applications worldwide.

In summary, the SD Holder Connector is an innovative and dependable solution for integrating Secure Digital Card Slots into electronic devices. Its combination of a SWP spring mechanism, stainless steel link, phosphor bronze contacts, and a 0.5 ampere current rating delivers excellent mechanical and electrical performance. Moreover, with full RoHS and REACH compliance, this SD Memory Card Holder connector not only ensures superior functionality but also aligns with modern environmental and safety standards. Whether you are designing an SD Card Reader Connector for consumer electronics or industrial applications, this product represents a high-quality choice that supports reliable data transfer, durability, and regulatory adherence.

Features:

• Product Name: SD Holder Connector
• Card Insertion Force: 30-50N for easy and secure insertion
• Voltage Rating: AC 250V, ensuring reliable electrical performance
• Material: Durable plastic and metal construction for longevity
• Number of Pins: Available in 8, 9, and 11-pin configurations
• Card Retention Force: 10-20N to securely hold the SD card in place
• Compatible with SD Card Holder Assembly and SD Memory Card Holder applications
• Designed as a Secure Digital Card Connector for enhanced device connectivity

Technical Parameters:

Applications:

The LP SD Holder Connector, model number LP-SD033, is a high-quality SD Card Socket Connector designed and manufactured in China. With ISO-9001:2000 certification, this product guarantees reliable performance and superior quality. Featuring 8, 9, or 11 pins and a dielectric withstanding voltage of AC 500V R.m.s., it is engineered to meet the demands of various electronic devices requiring secure and efficient memory card connections. The Secure Digital Card Connector comes equipped with a card detect switch, ensuring seamless operation and user convenience.

Ideal for applications requiring dependable and durable memory card interfaces, the LP-SD033 SD Memory Card Holder is extensively used in consumer electronics, industrial equipment, and communication devices. Its contact material, made from high-grade copper alloy, ensures excellent conductivity and long-term corrosion resistance. The slider, constructed from high-temperature plastic rated UL 94V-0, adds an extra layer of safety and durability, making it suitable for environments with stringent safety standards.

This SD Card Socket Connector is perfect for occasions where compact, reliable, and cost-effective memory card solutions are essential. It is widely adopted in portable media players, digital cameras, handheld gaming devices, and embedded systems. Additionally, it suits industrial automation systems and automotive electronics where robust and secure memory card connections are crucial for data storage and transfer. The presence of a card detect switch further makes it suitable for applications requiring automatic detection of card insertion or removal.

With a minimum order quantity of 1000PCS and a competitive price of $0.0003 per unit, the LP-SD033 provides excellent value for manufacturers and system integrators. The product is supplied with flexible packaging options, including reel, tube, or tray, facilitating easy handling and integration into automated assembly lines. Delivery times range from 7 to 10 days, supported by payment terms such as T/T and L/C, ensuring smooth procurement and supply chain management.

Thanks to a supply ability of 100,000PCS, the LP Secure Digital Card Connector is an optimal choice for large-scale production runs. Whether you are developing new consumer electronics or upgrading industrial devices, the LP-SD033 SD Memory Card Holder offers a reliable and efficient solution to meet your design and manufacturing needs.

Customization:

Introducing the LP brand SD Holder Connector, model number LP-SD033, proudly manufactured in China with ISO-9001:2000 certification, ensuring top quality and reliability. This product is designed to serve as a Secure Digital Card Slot and Secure Digital Card Reader, making it an ideal SD Memory Slot Connector for various electronic applications.

Constructed with a durable stainless steel shell (t=0.20mm) and copper alloy contacts (t=0.15mm), the LP-SD033 offers excellent durability and conductivity. It features a card detect switch for added functionality and a voltage rating of AC 250V, with an insulation resistance of 1000 MΩ minimum, guaranteeing safety and stable performance.

We offer flexible packaging options including Reel, Tube, and Tray to meet your specific needs, with a minimum order quantity of 1000PCS. Our supply ability of 100000PCS ensures that large-scale orders can be fulfilled promptly.

With a competitive price of $0.0003 per unit and a delivery time of 7 to 10 days, the LP-SD033 SD Holder Connector is both cost-effective and timely. Payment terms include T/T and L/C for your convenience.

Choose the LP-SD033 for your Secure Digital Card Slot and SD Memory Slot Connector requirements and experience reliable performance backed by industry standards and excellent customer service.

Support and Services:

Our SD Holder Connector product is designed to provide reliable and secure connections for your SD card applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and maintenance advice to ensure optimal performance.

Our support team is knowledgeable about the specifications and compatibility requirements of the SD Holder Connector, helping you integrate it seamlessly with your devices. We also provide firmware updates and software tools when applicable to enhance functionality and security.

In addition to technical support, we offer a range of services such as custom configuration, product testing, and quality assurance to meet your specific needs. Our goal is to ensure that your SD Holder Connector operates efficiently and meets all your operational requirements.

Whether you need help with product selection, technical documentation, or post-installation support, our service team is dedicated to delivering prompt and effective solutions. We are committed to your satisfaction and the long-term reliability of your SD Holder Connector installations.

Packing and Shipping:

Product Packaging: The SD Holder Connector is carefully packaged in a sturdy, anti-static box to protect it from damage and electrostatic discharge during transit. Each unit is individually sealed with protective foam inserts to prevent movement and ensure it arrives in perfect condition.

Shipping: We offer reliable shipping options worldwide. Orders are processed within 1-2 business days, and tracking information is provided upon dispatch. Shipping methods include standard ground, expedited, and express delivery, ensuring timely and safe arrival of your SD Holder Connector.
