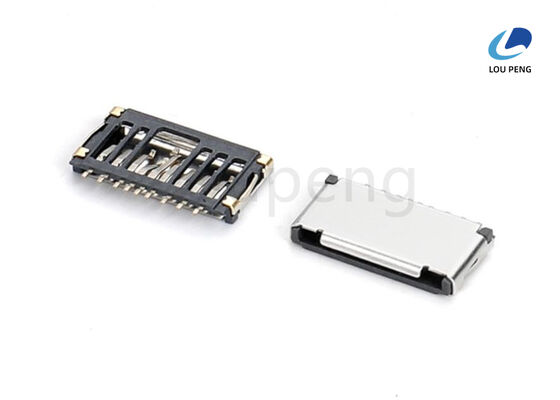

Hl Temp Plastic UL 94V-0 Rated SD Holder Connector Offering Gold Plated Contact Plating and SD Card Slot Connector Type for Signal Transmission

Product Description:

The SD Holder Connector is a high-quality component designed to provide a reliable and efficient interface for Secure Digital (SD) cards. Engineered with precision, this SD Card Interface Holder offers excellent performance for a variety of applications, particularly in embedded systems and consumer electronics. Its robust construction and carefully selected materials ensure durability, dependable card retention, and smooth card insertion and removal processes.

One of the key features of this SD Card Interface Holder is its optimized card insertion force, which ranges between 30 to 50 Newtons (N). This balanced insertion force guarantees that users can easily insert their SD cards without excessive effort, while still maintaining a secure connection once the card is in place. The carefully calibrated insertion force helps to minimize wear and tear on both the SD card and the holder, thereby extending the lifespan of the device.

Equally important is the card retention force, which is engineered to be between 10 to 20 Newtons (N). This retention force ensures that the SD card remains firmly seated within the holder during operation, preventing accidental disconnections or card ejections due to vibrations or movement. This feature is particularly crucial in embedded systems and consumer electronics where device stability is essential for maintaining data integrity and consistent performance.

The contacts within the SD Holder Connector are made from copper alloy with a thickness of 0.15 millimeters. Copper alloy is chosen for its excellent electrical conductivity and mechanical resilience, allowing for reliable signal transmission between the SD card and the host device. The 0.15mm thickness strikes an ideal balance between flexibility and strength, ensuring consistent contact pressure and optimal electrical performance throughout the product’s lifecycle.

In addition to its internal components, the SD Card Interface Holder features a cover made from brass with nickel plating. This brass cover provides superior mechanical strength and protection for the internal contacts, safeguarding them against physical damage and environmental factors. The nickel plating further enhances the cover’s durability by offering corrosion resistance and a sleek, professional appearance. This combination of materials ensures that the SD Holder Connector remains functional and visually appealing even in demanding environments.

Designed specifically for embedded systems and consumer electronics, this SD Card Interface Holder is compatible with a wide range of devices that require a secure and efficient Secure Digital Card Reader. Whether used in portable media players, digital cameras, handheld gaming consoles, or other electronic gadgets, this holder ensures seamless integration and dependable performance. Its compact and robust design makes it an ideal solution for manufacturers seeking to incorporate SD card functionality into their products without compromising on reliability or user experience.

In summary, the SD Holder Connector is a premium-grade SD Card Interface Holder that combines precise engineering with high-quality materials to deliver exceptional performance. With a card insertion force of 30-50N and a card retention force of 10-20N, it provides a secure and user-friendly interface for Secure Digital cards. The copper alloy contacts with a thickness of 0.15mm guarantee reliable electrical connections, while the brass cover with nickel plating offers outstanding protection and durability. Perfectly suited for embedded systems and consumer electronics, this SD Card Interface Holder is an essential component for any device requiring a dependable Secure Digital Card Reader interface.

Features:

• Product Name: SD Holder Connector
• Connector Type: SD Card Slot
• Compliant with RoHS and REACH standards
• Mating Cycles: 10,000 insertions for long-lasting durability
• Contact Material: High-quality Phosphor Bronze for reliable conductivity
• Shell Material: Stainless Steel with 0.20mm thickness for enhanced protection
• Designed as a Secure Digital Card Reader for efficient data transfer
• Functions as an SD Card Interface Holder ensuring stable connection
• Acts as an SD Card Socket Connector compatible with various SD cards

Technical Parameters:

Applications:

The LP SD Holder Connector, model number LP-SD031, is a high-quality Secure Digital Card Connector designed and manufactured in China with ISO-9001:2000 certification. This connector is ideal for applications requiring reliable and efficient SD Card Reader Connector solutions. With a contact resistance of 40 Megohms max and an insulation resistance of 1000 MΩ minimum, it ensures stable electrical performance. The contact current rating of 0.5 Amperes makes it suitable for low-power data transfer applications, while the card push insertion/out force of 0.7~1.20kgf guarantees smooth and secure card insertion and removal.

This SD Holder Connector is widely used in various electronic devices and systems where Secure Digital Card Connectors are essential. It is perfectly suited for consumer electronics such as digital cameras, smartphones, tablets, and portable media players that require reliable micro SD or mini SD card interfaces. Additionally, it supports multiple card types including 4-in-1 ms+sd+mmc+xd and 3-in-1 configurations, offering versatile compatibility for diverse memory card needs.

In industrial and commercial applications, the LP-SD031 connector serves as a dependable solution for embedded systems, automotive infotainment devices, and handheld terminals that demand durable and high-performance SD Card Reader Connectors. Its packaging options of reel, tube, or tray facilitate easy integration into automated assembly lines, supporting high-volume production with a supply ability of 100,000 pieces. The minimum order quantity of 1000PCS and an attractive price point of 0.0003 per unit make it a cost-effective choice for manufacturers aiming to balance quality and budget.

The delivery time ranges between 7 to 10 days, ensuring timely availability for project schedules, and payment terms include flexible options such as T/T and L/C, accommodating various purchasing preferences. Overall, the LP SD Holder Connector LP-SD031 is a reliable, versatile, and economically viable component for any application requiring secure and efficient Secure Digital Card Connectors and SD Card Reader Connectors.

Customization:

Brand Name: LP

Model Number: LP-SD031

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.0003 per unit

Packaging Details: Available in Reel, Tube, or Tray packaging to suit your needs.

Delivery Time: 7~10 days for efficient supply chain management.

Payment Terms: We accept T/T and L/C for your convenience.

Supply Ability: Capable of supplying up to 100,000PCS to meet large orders.

Our LP-SD031 model features a reliable Secure Digital Card Slot with a built-in card detect switch, ensuring seamless detection and functionality.

The Secure Digital Card Connector is constructed with a durable plastic and metal body, utilizing copper alloy terminals to support a contact current rating of 0.5 Amperes.

Designed for longevity, this Secure Digital Card Reader supports up to 10,000 insertions, making it ideal for high-usage environments.

Support and Services:

Our Product Technical Support and Services for the SD Holder Connector are designed to ensure optimal performance and customer satisfaction. We provide comprehensive assistance including product selection guidance, installation instructions, troubleshooting tips, and maintenance recommendations.

Technical support is available to help address any issues related to connector compatibility, signal integrity, and mechanical durability. Our experts are equipped to assist with system integration and customization requests to meet specific application requirements.

We also offer detailed documentation, including datasheets, application notes, and design guidelines to support your engineering and development efforts. Firmware and software updates related to connector functionality are provided as needed.

For quality assurance, our services include testing and validation support to ensure the SD Holder Connector meets industry standards and your project specifications.

Additionally, we provide training sessions and workshops to empower your team with the knowledge necessary for effective use and maintenance of the product.

Packing and Shipping:

Product Packaging: The SD Holder Connector is carefully packaged in a sturdy, protective box to prevent any damage during transit. Each unit is securely placed in anti-static foam or bubble wrap to ensure it remains intact and free from scratches. The packaging includes a clear label with product details, specifications, and handling instructions to facilitate easy identification and safe handling.

Shipping: We offer reliable shipping options to ensure your SD Holder Connector arrives promptly and in excellent condition. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking information provided. International shipping is available with appropriate customs documentation. We recommend selecting insurance for high-value orders to provide additional protection during delivery.
