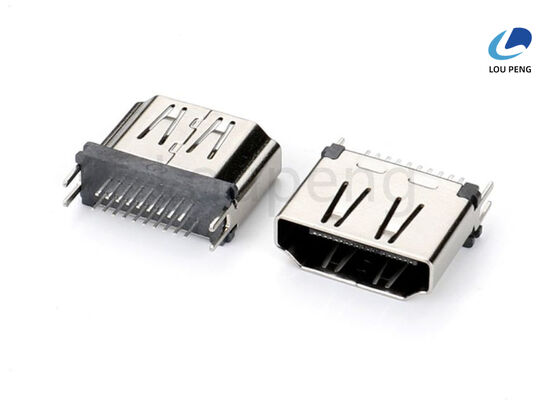

Insertion Force 3.7 Kgf Max High Definition Multimedia Interface Connector Ensuring Secure Fit and Stable Audio Video Data Transfer

Product Description:

The HDMI Connector is a high-quality electronic component designed to facilitate seamless audio and video transmission between various multimedia devices. As an essential part of the HDMI Electronic Interface Connector family, this product is engineered to meet the stringent demands of modern digital connectivity, ensuring reliable and efficient signal transfer for both consumer and professional applications.

Belonging to the HDMI / Mini HDMI / Micro HDMI Series, this connector is available in both female and male configurations, providing versatile options for integration into a wide range of devices such as televisions, monitors, cameras, laptops, and gaming consoles. Whether you need to connect a compact device with a Micro HDMI port or a standard HDMI port on a larger display, this HDMI Multimedia Connector Interface caters to diverse connectivity requirements with ease.

One of the standout features of this HDMI Connector is its low insertion force, with a maximum of 3.7 Kgf. This ensures that the connector can be plugged in and unplugged smoothly without causing undue wear or damage to the ports or cables. The optimal insertion force balances secure connections with ease of use, making it ideal for frequent connection cycles often encountered in professional AV setups and home entertainment systems.

Durability and signal integrity are paramount in any multimedia interface connector, and this HDMI Multimedia Connector Interface excels in these areas through its advanced shielding design. The connector incorporates a combination of aluminum foil and braided shielding, which significantly reduces electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding not only protects the transmitted signals from external noise but also minimizes crosstalk between adjacent wires, resulting in clear, high-definition audio and video output without degradation.

Another critical specification of the HDMI Connector is its low contact resistance, capped at 30 milliohms maximum. Low contact resistance is essential for maintaining strong electrical connectivity, reducing power loss, and ensuring stable signal transmission over prolonged periods. This attribute contributes to the connector's overall performance, making it a reliable choice for high-bandwidth applications such as 4K video streaming, gaming, and professional video editing.

The HDMI Electronic Interface Connector is manufactured to comply with industry standards, ensuring compatibility with a wide array of HDMI-enabled devices. Its robust construction and precision engineering make it an excellent choice for both original equipment manufacturers (OEMs) and aftermarket solutions. Whether used in consumer electronics, automotive infotainment systems, or industrial multimedia applications, this connector provides consistent performance and long-term reliability.

In summary, this HDMI Multimedia Connector Interface offers a comprehensive solution for high-quality digital audio and video connections. Its combination of low insertion force, superior aluminum foil and braided shielding, low contact resistance, and availability in both male and female types across the HDMI / Mini HDMI / Micro HDMI Series ensures it meets the needs of a broad spectrum of users. By choosing this connector, users are investing in a durable, efficient, and high-performance interface component essential for modern multimedia connectivity.

For anyone looking to enhance their device connectivity with a trusted HDMI Multimedia Connector Interface, this product stands out as a dependable and technically advanced choice. It supports the ever-growing demand for high-definition multimedia transmission, providing a seamless and interference-free connection, essential for delivering the best possible audio and video experience.

Features:

• Product Name: HDMI Connector
• High Definition Multimedia Interface Connector for superior video and audio quality
• Insertion cycle (maximum): 10,000 for long-lasting durability
• Withstanding Voltage: 500V AC R.m.s. ensuring reliable performance
• Maximum Data Rate: 18 Gbps supporting high-speed HDMI Signal Transmission Connector
• Contact Current Rating: 0.5A AC(rms)/DC for stable electrical connectivity
• Cable Compatibility: Compatible with standard HDMI Cable
• Durable HDMI Electronic Interface Connector designed for frequent use

Technical Parameters:

Applications:

The LP-HD019 High Speed HDMI Cable Connector, manufactured by LP in China, is a premium-quality HDMI Multimedia Connector Interface designed to meet the rigorous demands of modern digital connectivity. With ISO-9001:2000 certification guaranteeing superior manufacturing standards, this connector is ideally suited for a broad range of applications where reliable high-speed data transfer is essential. The product series includes HDMI, Mini HDMI, and Micro HDMI connectors, making it versatile for various devices and setups.

This High Speed HDMI Cable Connector is perfect for use in home entertainment systems, enabling seamless connection between TVs, Blu-ray players, gaming consoles, and sound systems. Its panel mount design and UL94V-0 LCP black housing ensure durability and safety, making it a reliable choice for long-term installations in residential and commercial environments. The connector's compatibility with standard HDMI cables allows for easy integration without the need for specialized adapters or accessories.

In professional settings, the LP-HD019 HDMI Multimedia Connector Interface is extensively used in conference rooms, broadcasting studios, and multimedia production environments where high-definition video and audio transmission must be flawless. Its high supply ability of 100,000 PCS and delivery time of 7 to 10 days make it suitable for large-scale deployment projects. Additionally, the packaging options of reel, tube, or tray provide flexibility for various installation and inventory needs.

Educational institutions and corporate offices also benefit from this High Speed HDMI Cable Connector for connecting projectors, interactive whiteboards, and digital signage systems. The connector’s robust construction and panel mount feature ensure secure and stable connections, minimizing downtime and maintenance. With a minimum order quantity of 1000 PCS and a competitive price of $0.05 per unit, it is a cost-effective solution for bulk purchases.

Payment terms including T/T, Western Union, and L/C offer convenient transaction options for global customers. Whether used in consumer electronics, professional AV setups, or industrial applications, the LP-HD019 HDMI Multimedia Connector Interface delivers excellent performance, durability, and value, making it an indispensable component in any high-speed HDMI cable connection scenario.

Customization:

Our HDMI Connector, model LP-HD019 from the trusted brand LP, is a premium HDMI Multimedia Connector Interface designed for reliable performance and durability. Manufactured in China and certified with ISO-9001:2000, this High Speed HDMI Cable Connector meets the highest quality standards to ensure customer satisfaction.

The LP-HD019 features 19 pins with a contact finish of 1u Au, supporting a voltage rating of 40V AC (RMS)/DC and an operating temperature range from -55°C to 85°C. It is engineered to withstand a maximum welding temperature of 260°C, making it ideal for various industrial applications.

We offer flexible packaging options including Reel, Tube, and Tray to suit your production needs. With a minimum order quantity of 1000PCS and a supply ability of 100000PCS, we can accommodate both small and large-scale orders efficiently. The price is competitively set at $0.05 per piece.

Our delivery time is prompt, typically within 7 to 10 days, and we accept multiple payment terms such as T/T, Western Union, and L/C. Whether you require a customized HDMI Digital Audio Video Connector for your electronics projects or large volume orders, our LP-HD019 connector is an excellent choice for seamless digital audio and video transmission.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the product manual and installation guide provided with your purchase. Our support team is available to assist you with troubleshooting, installation guidance, and product specifications.

We recommend ensuring that all connections are secure and compatible with your devices to guarantee optimal performance. If you encounter any issues, please check the frequently asked questions (FAQ) section on our website for quick solutions.

For warranty information and repair services, please review the warranty terms included in the product documentation. Our authorized service centers are equipped to handle repairs and replacements in accordance with the warranty policy.

Additional resources such as software updates, driver downloads, and technical bulletins are accessible through our online support portal. We encourage you to register your product to receive the latest updates and notifications.

Your satisfaction is important to us, and we are committed to providing comprehensive support to ensure your HDMI Connector meets your connectivity needs effectively.

Packing and Shipping:

Each HDMI connector is carefully packaged in a protective anti-static bag to prevent damage from electrostatic discharge. The connectors are then placed in a sturdy cardboard box with foam padding to ensure they remain secure during transit.

For bulk orders, HDMI connectors are packed in larger boxes with individual compartments or bubble wrap to avoid any physical damage. All packages are clearly labeled with product information and handling instructions.

Shipping is carried out through reliable couriers with tracking options available. We ensure that every order is dispatched promptly and delivered safely to the customer’s address.
