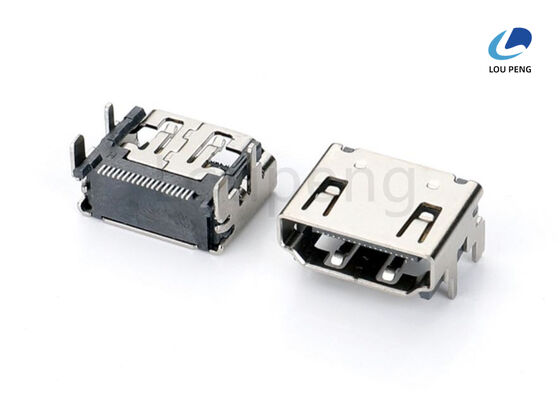

55°C To 85°C HDMI Connector Offering Insulation Resistance 100 Mega Ohms Min And Aluminum Foil Braided Shield Ensuring Signal Transfer

Product Description:

The HDMI Connector is a high-performance HDMI Multimedia Connector Interface designed to meet the demanding requirements of modern digital audio and video transmission. This connector is specifically engineered to provide reliable and efficient connectivity for various multimedia devices, ensuring seamless integration and superior signal quality. Ideal for applications in consumer electronics, professional audio-visual equipment, and industrial systems, this HDMI connector stands out as a robust and durable solution for HDMI video and audio connections.

One of the key features of this HDMI connector is its exceptional operating temperature range, which spans from -55°C to 85°C. This wide temperature tolerance makes it suitable for use in environments with extreme temperature fluctuations, from cold storage facilities to hot industrial settings. The ability to maintain stable performance across such a broad temperature spectrum ensures that the HDMI digital audio video connector remains reliable under challenging conditions, providing consistent signal integrity without degradation.

Safety and durability are paramount in the design of this HDMI Multimedia Connector Interface. It boasts a withstanding voltage of 500V AC R.m.s., which guarantees excellent resistance to voltage surges and electrical stress. This high withstanding voltage rating enhances the connector’s reliability, protecting connected devices from potential damage caused by electrical faults or transient voltages. Consequently, users can trust this HDMI video audio connector for long-term use in critical applications.

The mounting type of this HDMI connector is panel mount, which facilitates easy and secure installation on various panels or enclosures. Panel mount connectors offer a stable and fixed connection point, reducing the risk of accidental disconnections and mechanical strain on the cables. This mounting method is especially advantageous in professional setups where reliable and permanent connections are essential.

Another outstanding attribute of this HDMI connector is its contact plating. The contacts are plated with 24K gold, a premium material known for its excellent conductivity and resistance to corrosion. Gold plating ensures low contact resistance and stable signal transmission, minimizing the chances of signal loss or interference. This feature is particularly important for HDMI digital audio video connectors, where maintaining high-quality signal fidelity is critical for delivering clear audio and crisp video output.

The housing of the HDMI connector is constructed from UL94V-0 rated LCP (Liquid Crystal Polymer) in black. UL94V-0 is a stringent flammability rating that certifies the material’s ability to self-extinguish quickly in case of fire, enhancing the overall safety of the device. LCP is a high-performance engineering plastic known for its excellent mechanical strength, dimensional stability, and resistance to heat and chemicals. The black housing not only provides a sleek and professional appearance but also contributes to the connector’s durability and longevity in demanding environments.

In summary, this HDMI Multimedia Connector Interface is a premium HDMI video audio connector that combines durability, safety, and superior performance. Its wide operating temperature range, high withstanding voltage, secure panel mount design, 24K gold plated contacts, and UL94V-0 rated LCP housing make it an ideal choice for a wide range of applications requiring reliable HDMI digital audio video connections. Whether used in home entertainment systems, professional AV setups, or industrial equipment, this HDMI connector guarantees excellent signal quality and dependable operation.

Features:

• Product Name: HDMI Connector
• Supports HDMI Video Audio Connector for high-quality multimedia transmission
• Maximum Data Rate: 18 Gbps for fast and efficient HDMI Signal Transmission Connector performance
• Insertion Force: 3.7 Kgf Max ensuring reliable HDMI Port Connection Interface engagement
• Contact Resistance: 30 Milliohms Max. for stable signal integrity
• Contact Current Rating: 0.5A AC(rms)/DC for safe and efficient power handling
• Durable Shell Material made of Copper Alloy (C2680) / BRASS for enhanced durability and conductivity

Technical Parameters:

Applications:

The LP-HD020 HDMI Connector, manufactured by LP in China, is a premium-quality HDMI Interface Connector Plug designed to meet the highest standards of performance and reliability. Certified under ISO-9001:2000, this connector is part of the HDMI / MINI HDMI / MICRO HDMI Series, ensuring compatibility across a wide range of devices that require High Definition Video Connector solutions. With its robust construction using copper alloy (C2680) and brass for the shell material, and a contact finish of 1u Au, the LP-HD020 guarantees excellent conductivity and durability, making it an ideal choice for demanding applications.

This HDMI Connector is perfectly suited for various application occasions and scenarios where a reliable HDMI Port Connection Interface is essential. In consumer electronics, it is commonly used in televisions, Blu-ray players, gaming consoles, and set-top boxes to provide seamless high-definition audio and video transmission. The connector’s maximum welding temperature of 260°C ensures it can withstand rigorous manufacturing processes and maintain stable connections over time.

In professional environments such as broadcasting studios and conference rooms, the LP-HD020 HDMI Interface Connector Plug enables high-quality video transmission for presentations, live streaming, and video conferencing systems. Its mating force of 44.1N max ensures secure and stable connections, reducing the risk of signal loss or interruption during critical operations.

The LP-HD020 is also widely employed in automotive infotainment systems, digital signage, and medical imaging equipment where high-definition video connectivity is crucial. Its packaging options—reel, tube, or tray—cater to various production and assembly line needs, facilitating efficient integration into automated manufacturing processes. With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, this connector is readily available for bulk orders, making it suitable for large-scale production demands.

LP offers competitive pricing at $0.05 per unit with flexible payment terms including T/T, Western Union, and L/C. The delivery time of 7 to 10 days ensures timely fulfillment of orders, supporting fast project turnaround times. Overall, the LP-HD020 HDMI Connector is an excellent choice for any application requiring a dependable High Definition Video Connector and HDMI Port Connection Interface, combining quality, affordability, and versatility.

Customization:

Our HDMI Connector, model number LP-HD020 from the trusted brand LP, is a high-quality HDMI Electronic Interface Connector designed for superior performance. Made in China and certified with ISO-9001:2000, this High Definition Video Connector ensures reliable HDMI Signal Transmission Connector capabilities with a maximum data rate of 18 Gbps.

This Panel Mount connector features a durable black color and supports up to 10,000 insertion cycles, guaranteeing long-lasting use. It offers excellent insulation resistance of 100 Mega Ohms minimum, making it ideal for various electronic applications.

We provide flexible packaging options including Reel, Tube, and Tray to meet your storage and handling needs. With a minimum order quantity of 1000PCS and a supply ability of 100,000PCS, we can efficiently fulfill your orders.

Our competitive price of $0.05 per unit, combined with a delivery time of 7 to 10 days, ensures you receive quality HDMI connectors promptly. Payment terms accepted include T/T, Western Union, and L/C for your convenience.

Choose our LP-HD020 HDMI Connector for a reliable and efficient HDMI Electronic Interface Connector solution that supports high-definition video transmission and robust HDMI signal integrity.

Support and Services:

For technical support and services related to the HDMI Connector product, please refer to the detailed user manual provided with your purchase. Our support team is available to assist with installation guidance, troubleshooting, and product specifications to ensure optimal performance.

We offer warranty services and repair options for products that meet the warranty criteria. Please ensure you have your purchase details and product serial number ready when requesting support.

For software updates, firmware upgrades, and compatibility information, visit our official website regularly to download the latest resources designed to enhance your HDMI Connector experience.

Our customer service team is committed to providing timely and effective solutions to any issues you may encounter. Please review our FAQs and troubleshooting guides as a first step to resolve common problems quickly.

Packing and Shipping:

Our HDMI Connector is carefully packaged to ensure maximum protection during transit. Each unit is individually sealed in an anti-static bag to prevent any damage from electrostatic discharge. The connectors are then placed in a sturdy cardboard box with cushioning materials to avoid any physical impact.

For shipping, we use reliable courier services that offer tracking and insurance options. Orders are processed promptly and shipped within 1-2 business days. Depending on the destination, delivery times typically range from 3 to 7 business days. We also provide bulk packaging options for large orders to optimize shipping efficiency and reduce costs.
